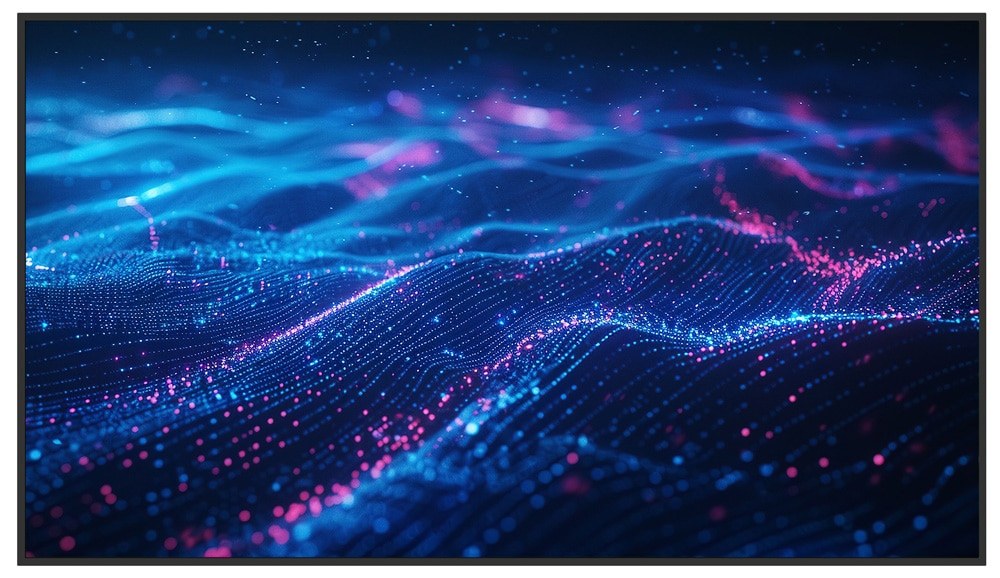

The Newline 65" DSX is a 4K UHD digital signage display designed for continuous operation. It features 700-nit brightness, Android 14, and Wi-Fi 6 connectivity. Smart-Boards supplies this model across the GCC and Africa.
This 65-inch direct LED display delivers 3840 x 2160 resolution with 1.07 billion colours. The 700-nit brightness ensures clarity in well-lit commercial environments. An octa-core processor and 4 GB RAM support efficient media playback on Android 14.
Built for 24/7 duty cycles, the panel includes HDMI In/Out, USB-C, and 1000M LAN for robust integration. Built-in 2 x 15 W speakers provide audio without external amplifiers. The 500 x 500 mm VESA mount allows flexible installation for business and public venues.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with 178° viewing angles for crisp visuals from multiple positions.
- Continuous Operation - Engineered for 24 hours a day, 7 days a week duty cycles with a 50,000-hour display lifetime.
- Android 14 OS - Runs on Android 14 with an octa-core processor, 4 GB RAM, and 32 GB storage for media apps.
- Wi-Fi 6 Connectivity - Includes integrated Wi-Fi 6 and Bluetooth 5.2 for reliable wireless content management and control.
- Control Ports - Features RS232C In/Out and 1000M LAN for network-based monitoring and centralized system control.
Ideal for: Corporate lobbies, educational institutions, and retail spaces across the GCC and Africa requiring reliable, always-on visual communication.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 65" DSX
- Product type
- Digital Signage Display
- Key features
- 4K UHD, 700 nits, Android 14, Wi-Fi 6, 24/7 operation, 50,000-hour display lifetime, RS232C control, 1000M LAN
- Application
- Digital signage
- Impedance
- 6 Ω
Display
- Brightness
- 700 cd/m²
- Colour depth
- 1.07 billion colours
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1
- Display type
- Direct LED
- Response time
- 6.5 ms
System
- Processor
- Octa-core (A72 x 4 + A53 x 4)
- Graphics
- Mali G52 MC3
- Operating system
- Android 14
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24 hours / 7 days
Connectivity
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- Wi-Fi 6
- Ports
- HDMI In × 2, USB-C × 1, USB 3.0 × 1, HDMI Out × 1, S/PDIF Out × 1, Line Out × 1, RS232C In/Out, LAN In (1000M)
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- Operating temperature
- 0 to 40 °C
- Power consumption
- 155 W (standard mode)
- Standby power
- 0.5 W
- Dimensions
- 1458 x 832 x 69 mm
- Weight
- 17.7 kg
- VESA mount
- 500 x 500 mm
- Shipping weight
- 27.5 kg
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Newline 65" DSX support 24/7 operation?
Yes. The display is rated for a 24 hours / 7 days duty cycle, making it suitable for continuous digital signage applications in public or commercial spaces without downtime.
What is the brightness level of this display?
The screen provides 700 nits of brightness. This level ensures content remains visible and legible in well-lit indoor environments typical of offices and retail outlets.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries and across Africa through established logistics partners. Delivery times depend on the specific country and order size, confirmed in your quotation.
Is on-site installation available outside the UAE?
No. On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
What operating system does the 65" DSX use?
It runs Android 14. This includes an octa-core processor, 4 GB RAM, and 32 GB storage, allowing direct installation of media players and content management apps.
Does it include built-in speakers?
Yes. The unit has 2 x 15 W speakers with 6 Ω impedance. This provides adequate audio for background music or announcements without requiring external amplification.
Can this display be wall-mounted?
Yes. It supports a 500 x 500 mm VESA mount pattern. The panel weighs 17.7 kg, requiring appropriate mounting hardware for secure installation on walls or stands.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
