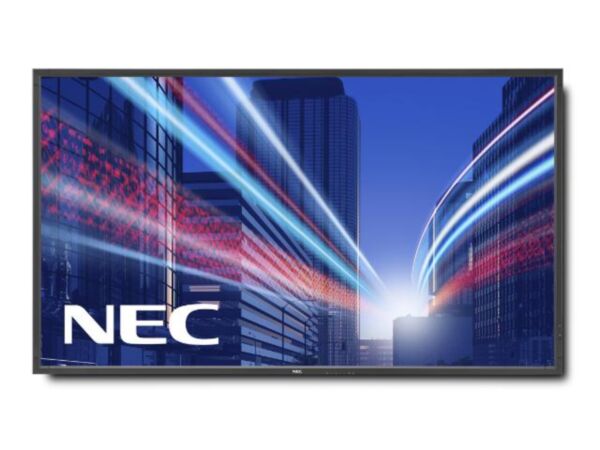

The NEC MultiSync V801-TM is an 80-inch interactive flat panel featuring Full HD resolution and six-point infrared touch. Smart-Boards supplies this display for educational and corporate environments across the GCC and Africa.
This large-format display utilises a UV²A panel with 460 nits brightness and a 5,000:1 contrast ratio. It includes integrated 10W stereo speakers and an OPS slot for module installation. The unit supports landscape and portrait orientations with a slim 34.8 mm bezel design.
Touch functionality relies on infrared technology with 6-point multi-touch capability and less than 2 mm accuracy. Connectivity includes HDMI, DisplayPort, DVI-D, VGA, and RS-232 ports. The panel meets international safety standards including CE and RoHS for global deployment.
Key features
- Infrared Touch - Six-point multi-touch response with 0 to 20 ms latency and driver-free operation.
- Full HD Panel - 80-inch screen with 1920 x 1080 resolution and UV²A backlight technology.
- OPS Compatibility - Built-in STv2 slot for Intel or NEC OPS computing modules.
- Diverse Inputs - Supports HDMI, DisplayPort, DVI-D, VGA, and composite video connections.
- DICOM Support - Includes grayscale calibration suitable for medical imaging applications.
Ideal for: Suitable for lecture halls, meeting rooms, and medical training facilities for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- V801-TM
- Product type
- Interactive Flat Panel
- Key features
- Full HD, infrared touch, 6 touches, driver-free, calibration-free, DICOM support, OPS-compatible slot, 10 W + 10 W speakers
- Compatibility
- Native multi-touch: Windows 7, Windows 8; single touch: Windows Vista, Linux, macOS, Android
- IP rating
- IP40 (front), IP20 (back)
- Orientation
- Landscape, portrait
Display
- Backlight
- Edge LED
- Brightness
- 460 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 80"
- Viewing angle
- 176° horizontal / 176° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1
- Panel technology
- UV²A
- Response time
- 6 ms (grey-to-grey)
Touch
- Touch accuracy
- < 2 mm
- Touch points
- 6-point multi-touch
- Touch resolution
- 32767 x 32767
- Touch response time
- 0 to 20 ms
- Touch technology
- Infrared
System
- OPS slot
- STv2 (compatible with Intel / NEC OPS standard)
- Operating hours
- 16/7
Connectivity
- DisplayPort
- DisplayPort In × 1 (HDCP)
- Ethernet (RJ45)
- 100 Mbit LAN (SNMP)
- HDMI input
- HDMI 1.3 × 1 (HDCP)
- Serial port
- RS-232C (9-pin D-sub), input and output
- Touch USB ports
- USB 2.0 × 1 (full speed HID, USB-powered)
- VGA input
- D-sub 15-pin × 1
- Inputs
- DisplayPort × 1, DVI-D × 1, HDMI × 1, D-sub 15-pin × 1, BNC (composite, RGBHV, component), 3.5 mm audio, LAN, RS-232
- Outputs
- DVI-D × 1 (HDCP), 3.5 mm audio, RS-232
Camera & audio
- Audio in
- 3.5 mm jack × 1
- Audio out
- 3.5 mm jack × 1
- Speaker output
- 10 W + 10 W (integrated)
Physical & warranty
- In the box
- Display, DVI-D cable, external power supply, power cable, remote control, USB cable, user guides and touch drivers on CD-ROM
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Standby power
- < 0.5 W (ECO standby); < 1 W
- Dimensions
- 1842.8 x 1067.9 x 107.3 mm (without stand)
- Weight
- 79.9 kg (without stand)
- VESA mount
- 400 x 400 mm (FDMI), M8
- Warranty
- 3 years (including backlight)
- Bezel size
- 34.8 mm (all sides)
- Certifications
- C-tick, CE, FCC Class B, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC V801-TM available for purchase?
This model is discontinued. The team can confirm current availability or recommend the latest successor model with modern specifications and updated connectivity options.
Which countries can receive this product?
Smart-Boards ships to GCC countries and African nations through established logistics partners. Delivery costs are minimised, and timelines depend on the specific country and order size.
Is installation included outside the UAE?
On-site installation is available within the UAE only. Other regions receive the unit ready for local setup, with remote guidance provided if needed for configuration.
Does the panel support medical imaging?
Yes, the V801-TM includes DICOM support. This allows for grayscale calibration useful in medical imaging or technical training environments requiring accurate tonal reproduction.
What touch technology does it use?
The display uses infrared touch technology. It supports six simultaneous touch points with an accuracy of less than 2 mm and requires no drivers for basic operation.
What computing options are supported?
The unit features an STv2 OPS slot. This allows installation of Intel or NEC OPS computing modules, turning the display into an all-in-one interactive solution.
What is the warranty coverage?
The manufacturer provides a three-year warranty, which includes coverage for the backlight. Smart-Boards also offers after-sales support for service and maintenance in the region.
