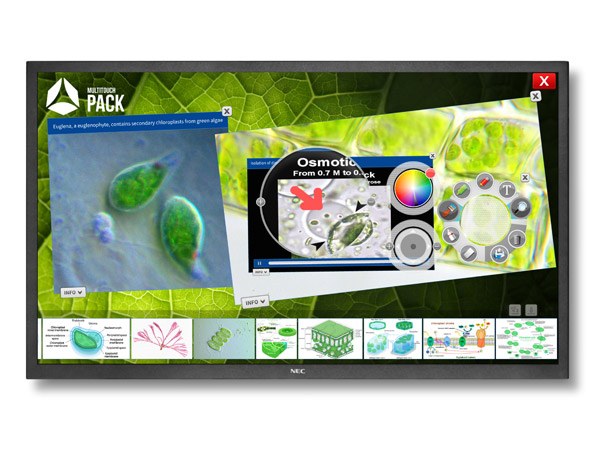

The NEC MultiSync V801 IRT is a discontinued 80-inch interactive flat panel featuring 6-point infrared multi-touch and Full HD resolution. Smart-Boards provides quotation-only supply for this model across the GCC and Africa, supporting multi-site deployments with manufacturer warranty and after-sales assistance.
This 80-inch interactive display utilises a UV²A panel with a 5,000:1 contrast ratio and 320 nits brightness for clear visibility in bright classrooms and boardrooms. It supports 6-point multi-touch with object rejection, allowing multiple users to collaborate without calibration. The integrated 10 W + 10 W speakers provide basic audio, while optional 15 W + 15 W units are available for larger venues.
Installation flexibility is supported by a 400 x 400 mm VESA mount and an STv2 OPS slot for Intel or NEC computing modules. The unit weighs 90 kg without the stand, requiring careful handling during transport to GCC and African regions. Smart-Boards offers live demonstrations and remote guidance for local setup in countries where on-site installation is not available.
Key features
- Multi-Touch Interface - Six-point infrared touch technology with approximately 61 ms response time and object rejection for collaborative work.
- Display Specifications - 80-inch Full HD (1920 x 1080) UV²A panel with 176° viewing angles and 3 mm premium toughened glass protection.
- Connectivity and Expansion - Includes HDMI, DisplayPort, DVI-D, and RS232 ports, plus an STv2 OPS slot for integrated computing solutions.
- Management Tools - Features NaViSet Administrator 2 for network control, SNMP support, and PIN theft protection for secure environments.
- Warranty Coverage - Comes with a 3-year manufacturer warranty including backlight coverage, supported by Smart-Boards after-sales service.
Ideal for: Suitable for large lecture halls, executive boardrooms, and training centres, this display suits buyers across the GCC and Africa requiring robust, multi-user interactive solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- V801 IRT
- Product type
- Interactive Flat Panel
- Key features
- Six-point infrared touch, calibration-free, object rejection, OPS slot, NaViSet Administrator 2, DICOM support, PIN theft protection, 3-year warranty
- Controls
- LAN with SNMP, infrared remote control, RS-232C, scheduler
- Expansion
- Intel / NEC OPS slot (STv2); TileMatrix up to 10 x 10
Display
- Backlight
- Edge LED
- Brightness
- 320 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 80"
- Surface protection
- 5 mm premium toughened glass, single-sided anti-reflective coating, 92% light transmission
- Viewing angle
- 176° horizontal / 176° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1 (typical)
- Panel technology
- UV²A
- Response time
- 6 ms (grey-to-grey)
Touch
- Touch points
- 6-point multi-touch
- Touch response time
- Approximately 61 ms (up to 200 fps)
- Touch technology
- Infrared (Cell Imaging)
System
- OPS slot
- STv2 (compatible with Intel / NEC OPS)
- Operating system
- Android
- Operating hours
- 16/7
- Storage conditions
- -20 to 60 °C; 10% to 90% RH
Connectivity
- Inputs
- DisplayPort × 1, DVI-D × 1, HDMI 1.3 × 1, D-sub 15-pin × 1, composite and component (BNC), 3.5 mm audio
- Outputs
- DVI-D (with HDCP) × 1, RS232 × 1, 3.5 mm audio
Camera & audio
- Audio
- Integrated 10 W + 10 W speakers; optional 15 W + 15 W
Physical & warranty
- In the box
- CD-ROM with user guides and touch drivers, display, DVI-D cable, external power supply, power cable, remote control, USB cable
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 230 W (shipping); 420 W maximum with built-in PC
- Standby power
- Less than 0.5 W (ECO standby); less than 1 W
- Dimensions
- 1838 x 1074 x 100.5 mm (without stand)
- Weight
- 90 kg (without stand)
- VESA mount
- 400 x 400 mm
- Warranty
- 3 years (including backlight)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC V801 IRT still in production?
No, this model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model from the NEC MultiSync range for your specific requirements.
Which countries do you deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations via established logistics partners at the lowest possible cost.
Do you provide installation services?
On-site installation is available within the UAE. For other countries, we deliver the unit ready for local setup, providing remote guidance if needed to ensure correct configuration.
Can I get a demo before buying?
Yes, we offer live or virtual demonstrations of the V801 IRT specifications and touch functionality before purchase to help you assess its suitability for your space.
What is the pricing structure?
Pricing is quote-only and depends on the country, order size, and configuration. We offer education, government, and bulk tender options upon request.
Does it support OPS modules?
Yes, the V801 IRT includes an STv2 OPS slot compatible with Intel and NEC computing modules, allowing you to add Windows or Linux computing power directly to the panel.
What are the power consumption specs?
The display consumes 230 W normally, with a maximum of 420 W when using a built-in PC. Standby power is less than 0.5 W in ECO mode.
