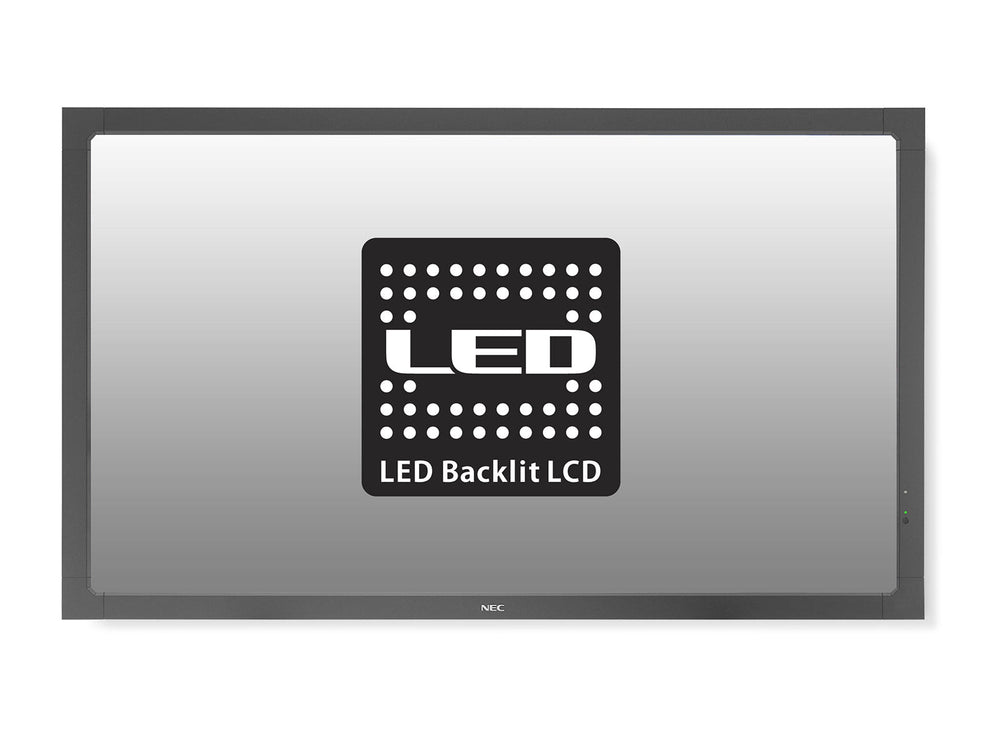

The NEC MultiSync V463-TM is a discontinued 46-inch interactive flat panel featuring 5-point optical touch and Full HD resolution. Smart-Boards supplies this model for educational and corporate sites across the GCC and Africa, offering availability checks or successor recommendations.
This 46-inch interactive display utilises AMVA3 panel technology to deliver a 4,000:1 contrast ratio and 480 nits brightness, ensuring clear visibility in well-lit conference rooms or classrooms. The integrated anti-reflective glass minimises glare, while the edge LED backlighting supports energy efficiency. With a 1920 x 1080 resolution and 60Hz refresh rate, it provides sharp imagery for presentations and digital signage. The unit weighs 27.7 kg without the stand and supports VESA 300 x 300 mm mounting for flexible installation.
Touch functionality is handled by four internal cameras enabling 5-point multi-touch, ideal for collaborative work. Connectivity includes HDMI, DVI-D, DisplayPort, and a composite BNC input for versatile signal sources. An OPS slot allows for slot-in PC integration, reducing cable clutter. Audio is provided by 10W + 10W integrated speakers, with optional upgrades available. The device operates on 61W maximum power and includes LAN and RS232 control for system integration. Warranty covers three years, including the backlight.
Key features
- Optical Touch - Four-camera system enables 5-point multi-touch for precise interaction and collaborative content control.
- AMVA3 Display - Full HD 1920 x 1080 resolution with 4,000:1 contrast and anti-reflective coating for clear viewing.
- OPS Compatibility - Open Pluggable Specification slot supports Intel Core i5 or i7 slot-in PCs for streamlined setups.
- Connectivity - Features HDMI, DVI-D, DisplayPort, BNC, and audio ports for versatile input and output options.
- Control Options - Supports LAN, RS232, and infrared remote control for easy management in multi-device environments.
Ideal for: Suitable for conference rooms, classrooms, and retail signage, this panel suits buyers across the GCC and Africa seeking reliable AV integration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- V463-TM
- Product type
- Interactive Flat Panel
- Key features
- 5-point optical touch, AMVA3 Full HD display, 4,000:1 contrast, anti-reflective glass, OPS slot, integrated speakers, Energy Efficiency Class A, ambient light sensor
- Controls
- LAN, RS232, infrared remote
- Expansion
- Option slot: HD-SDI 1.5G and 3G, Intel Core i5 and i7 slot-in PC
- IP rating
- IP40 (front); IP20 (back)
Display
- Backlight
- Edge LED
- Brightness
- 480 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 46"
- Viewing angle
- 87° horizontal / 87° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- AMVA3
- Response time
- 6.5 ms (grey-to-grey, typical)
Touch
- Touch points
- 5-point multi-touch
- Touch technology
- Optical (4 cameras)
System
- OPS slot
- Open pluggable specification (Intel OPS standard)
- Operating hours
- 16/7
- Storage conditions
- -20 to +60 °C; 10% to 90% RH
Connectivity
- Ports
- DisplayPort × 1, DVI-D in × 1, HDMI 1.3 × 1, D-sub 15-pin × 1, composite BNC × 1, DVI-D out × 1, 3.5 mm audio in and out
Camera & audio
- Audio
- Integrated speakers 10 W + 10 W (optional 15 W + 15 W)
Physical & warranty
- In the box
- Display, DVI-D cable, power cable, remote control, USB cable, LAN control software (free download)
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 61 W (maximum)
- Standby power
- < 0.5 W (ECO standby)
- Dimensions
- 1095 x 650 x 80.3 mm (without stand)
- Weight
- 27.7 kg (without stand)
- VESA mount
- 300 x 300 mm
- Warranty
- 3 years (including backlight)
- Bezel size
- 32.8 mm (all sides)
- Certifications
- CE, FCC Class B, RoHS, UL/C-UL or CSA, VCCI, TÜV GS, C-tick, PSB
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC V463-TM still in production?
No. This model is discontinued. Our team can check current availability or recommend the latest successor model that fits your requirements.
Which countries receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners at competitive costs.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other regions, units are delivered ready for local setup with remote guidance if needed.
What is the touch technology?
It uses optical touch technology with four internal cameras, supporting up to 5 simultaneous touch points for accurate multi-user interaction.
Does it have a slot-in PC option?
Yes. The OPS slot supports Intel Core i5 or i7 slot-in PCs, allowing for a cable-free computing solution integrated directly into the panel.
What is the warranty coverage?
The manufacturer provides a 3-year warranty, which includes coverage for the backlight unit, supported by Smart-Boards after-sales service.
Can I see a demo before buying?
Yes. We offer live or virtual demonstrations to help you evaluate the panel’s features and suitability for your specific site requirements.
