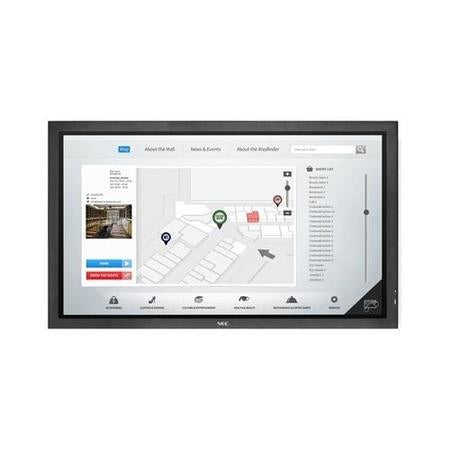

The NEC MultiSync P553 SST is a 55-inch interactive flat panel designed for professional environments. It features ShadowSense optical touch technology for precise, 10-point multi-touch input. Smart-Boards supplies this display across the GCC and Africa, offering installation and support services for educational and corporate clients.
This 55-inch display utilizes VA panel technology to deliver a 1920 x 1080 resolution with 550 nits of brightness. The ShadowSense touch system supports 10 simultaneous points of contact, allowing operation with fingers, gloves, or stylus. Its surface protection includes 4 mm toughened glass with an anti-reflective coating to maintain clarity in various lighting conditions.
Connectivity options include HDMI, DisplayPort, DVI-D, and a D-sub 15-pin input for versatile integration. The unit supports 24/7 duty cycles and features an OPS slot for optional computing modules. With a 4,000:1 contrast ratio and 178-degree viewing angles, it ensures consistent visibility from multiple positions. Smart-Boards provides this model as a discontinued product, assisting buyers with successor recommendations or availability checks.
Key features
- ShadowSense Touch - 10-point multi-touch capability with less than 1.5 mm accuracy, supporting finger, glove, and stylus input.
- Professional Display - 55-inch Full HD (1920 x 1080) VA panel with 550 nits brightness and 4,000:1 contrast ratio.
- Durable Construction - 4 mm toughened glass front with anti-reflective coating, rated for 24/7 operation and IP40 front protection.
- Versatile Connectivity - Includes HDMI, DisplayPort, DVI-D, and D-sub inputs, plus an OPS slot for Intel standard computing modules.
- System Management - Supports NaViSet Administrator 2 for remote control, SNMP via LAN, and RS-232C serial control.
Ideal for: Classrooms, conference rooms, and corporate training centres across the GCC and Africa requiring reliable, large-format interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- P553 SST
- Product type
- Interactive Flat Panel
- Key features
- ShadowSense touch, 10 touches, finger/glove/stylus input, ambient light rejection, OPS slot, 24/7 operation, NaViSet Administrator 2
- Expansion
- Interface extension slot (SB3 boards)
- IP rating
- IP40 (front), IP20 (back)
- Orientation
- Landscape, portrait, face-up
Display
- Colour
- Black front bezel, black back cabinet
- Backlight
- Edge LED
- Brightness
- 550 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Surface protection
- 4 mm toughened glass, single-sided anti-reflective coating
- Viewing angle
- 178° horizontal / 178° vertical
- Contrast ratio
- 4,000:1
- Panel technology
- VA (S-PVA)
- Response time
- 6 to 8 ms
Touch
- Touch accuracy
- < 1.5 mm
- Touch points
- 10-point multi-touch
- Touch resolution
- 4096 x 4096 (12-bit)
- Touch technology
- Optical (ShadowSense)
System
- OPS slot
- OPS (NEC / Intel OPS standard)
- Operating system
- Android
- Operating hours
- 24/7
Connectivity
- Ethernet (RJ45)
- LAN 100 Mbit (SNMP)
- Serial port
- RS-232C (9-pin D-sub)
- Touch USB ports
- USB 2.0 HID (plug and play)
- Inputs
- HDMI × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1
- Outputs
- DisplayPort × 1, DVI-D × 1, HDMI × 1
Camera & audio
- Audio in
- 3.5 mm jack × 2
- Audio out
- 3.5 mm jack
- Speaker output
- 10 W + 10 W
Physical & warranty
- In the box
- Display, DVI-D cable, power cable, remote control, USB cable, CD-ROM (user guides)
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 150 W (ECO mode, shipment setting)
- Standby power
- < 0.5 W (ECO standby)
- Dimensions
- 1328 x 789 x 79.1 mm (without stand)
- Weight
- 37 kg (without stand)
- VESA mount
- 300 x 300 mm (FDMI), 4 holes, M6
- Warranty
- 3 years (including backlight)
- Bezel size
- 40 mm
- Certifications
- CE, RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC P553 SST still in production?
No, this model is discontinued. The Smart-Boards team can confirm current availability or recommend a compatible successor model from the NEC MultiSync range.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Logistics costs are minimised through established partners.
Is installation included in other GCC countries?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup with remote guidance available if needed.
Does the display support touch with gloves?
Yes, the ShadowSense optical touch technology supports input from fingers, gloves, and stylus, making it suitable for various professional environments.
What is the warranty coverage?
The manufacturer provides a 3-year warranty, which includes coverage for the backlight. Smart-Boards also offers after-sales support for the region.
Can I add a computer module?
Yes, the display includes an OPS slot that accepts Intel OPS standard computing modules, allowing for integrated Windows or Linux operation.
Does it work with Android or Windows?
The touch interface supports native multi-touch on Windows 7–11, Linux, and Android, ensuring compatibility with most common operating systems.
