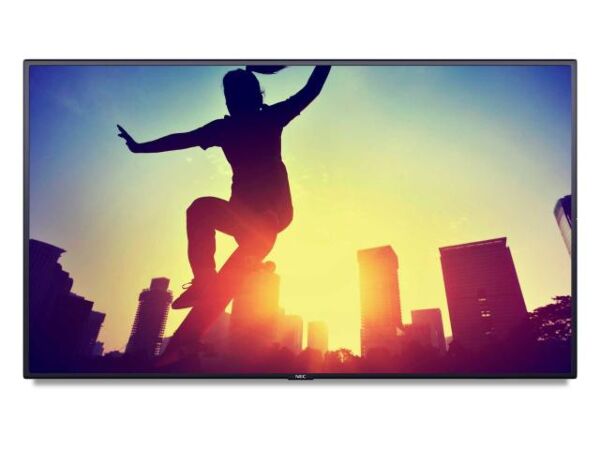

The NEC MultiSync P484 SST is a 48-inch Full HD interactive flat panel featuring ShadowSense optical touch technology for precise multi-user input. This display supports 24/7 operation, includes an OPS slot, and offers integrated audio. Smart-Boards supplies this model across the GCC and Africa with quotation-only pricing and regional logistics support.
This 48-inch display utilizes S-PVA panel technology to deliver 1920 x 1080 resolution with 700 nits brightness, ensuring readability in bright environments. It employs ShadowSense optical touch to support 10-point multi-touch with a rapid 6 to 8 ms response time. The unit weighs 30.5 kg and measures 1123.3 x 665.5 x 75.1 mm, designed for landscape or portrait orientation. It features integrated 10 W stereo speakers and supports 24/7 duty cycles for continuous operation.
Connectivity includes two HDMI inputs, two DisplayPort inputs, and an OPS slot for modular computing expansion. The panel provides VGA, DVI-D, and LAN ports, alongside RS-232 serial control for integration into existing AV systems. It accepts touch input from Windows, Linux, and Android platforms via native multi-touch or mouse mode. The device operates between 0 to 35 °C with 20% to 80% RH humidity, suitable for diverse regional climates in the GCC and Africa.
Key features
- ShadowSense Touch - Optical touch technology supports 10 simultaneous touch points with less than 1.5 mm accuracy, enabling glove and stylus input.
- High Brightness - S-PVA panel delivers 700 nits of brightness in standard mode, maintaining clear visibility in well-lit classrooms and boardrooms.
- Modular Expansion - Includes an OPS slot and NEC Compute Module 3 slot for flexible computing integration, supporting Raspberry Pi and NEC modules.
- Versatile Connectivity - Features two HDMI and two DisplayPort inputs, plus VGA and DVI-D ports, ensuring compatibility with various source devices.
- Continuous Operation - Rated for 24/7 duty cycle with standby power under 0.5 W, designed for reliable long-term use in institutional settings.
Ideal for: Suitable for classrooms, meeting rooms, and digital signage in educational and corporate environments across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- P484 SST
- Product type
- Interactive Flat Panel
- Key features
- ShadowSense optical touch, 10 touches, glove and stylus input, sunlight rejection, OPS slot, Compute Module slot, NFC sensor, 24/7 operation
- Compatibility
- Touch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS
- Expansion
- NEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
- IP rating
- IP5X (front), IP2X (back)
- Orientation
- Landscape, portrait
Display
- Backlight
- Edge LED
- Brightness
- 700 cd/m²
- Colour depth
- 1.07 billion colours (10-bit)
- Resolution
- Full HD
- Screen size
- 48"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- S-PVA
- Response time
- 8 ms (grey-to-grey)
Touch
- Touch accuracy
- < 1.5 mm
- Touch points
- 10-point multi-touch
- Touch resolution
- 12-bit (4096 x 4096)
- Touch response time
- 6 to 8 ms
- Touch technology
- Optical (ShadowSense)
System
- OPS slot
- OPS (Open Pluggable Specification) slot
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through)
- Ethernet (RJ45)
- LAN 100 Mbit (in and out)
- HDMI input
- HDMI In × 2 (HDCP)
- Serial port
- RS-232
- USB ports
- USB 2.0 × 1 (media player), USB 2.0 × 1 (service), USB Type-B × 1 (touch upstream), USB 2.0 × 2 (Compute Module)
- VGA input
- VGA × 1
- Ports
- VGA × 1, DVI-D × 1, DisplayPort In × 2, HDMI In × 2, DisplayPort Out × 1, USB, microSD, LAN, RS-232, 3.5 mm audio in/out
Camera & audio
- Audio in
- 3.5 mm analogue jack × 2; digital via HDMI and DisplayPort
- Audio out
- 3.5 mm analogue jack × 1
- Audio
- Integrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers)
Physical & warranty
- In the box
- Display, DVI-D cable, power cable, USB cable, remote control, user manual, CD-ROM
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 115 W (Eco shipment setting)
- Standby power
- < 0.5 W (ECO standby)
- Dimensions
- 1123.3 x 665.5 x 75.1 mm
- Weight
- 30.5 kg
- VESA mount
- 300 x 300 mm (FDMI), M6
- Warranty
- 3 years including backlight
- Bezel size
- 34.1 mm (top/bottom), 34.2 mm (left/right)
- Certifications
- CE, EMC Class B, RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product currently in production?
No, the NEC MultiSync P484 SST is discontinued. Our team can confirm current availability or recommend a suitable successor model for your specific requirements.
Which countries do you deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners, ensuring cost-effective delivery.
Do you provide installation services?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed.
What is the warranty coverage?
The product includes a 3-year manufacturer warranty covering the backlight, complemented by Smart-Boards after-sales support for the region.
Can it operate continuously?
Yes, the display is rated for 24/7 duty cycle operation, making it suitable for constant use in interactive whiteboards or digital signage applications.
Does it support wall mounting?
Yes, it supports VESA mounting with a 300 x 300 mm pattern using M6 screws, allowing for flexible mounting solutions in various room configurations.
What touch accuracy does it offer?
The ShadowSense optical touch technology provides accuracy of less than 1.5 mm, ensuring precise interaction for writing and navigation tasks.
