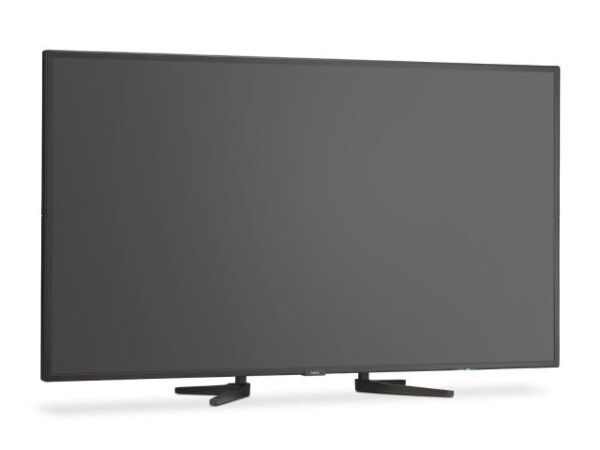

The discontinued NEC MultiSync P404 SST is a 40-inch interactive flat panel featuring ShadowSense optical touch and 700-nit brightness. Smart-Boards supplies this durable display across the GCC and Africa for multi-site deployments.
This 40-inch LCD panel utilises ShadowSense optical technology to deliver 10-point multi-touch accuracy within 1.5 mm. With a resolution of 1920 x 1080 and 700 nits of brightness, it ensures clear visibility in bright classrooms and meeting rooms. The S-PVA panel supports 1.07 billion colours, providing accurate content reproduction for educational and corporate training environments.
Designed for continuous operation, the P404 SST supports a 24/7 duty cycle with low power consumption of 90 W in eco mode. It includes an OPS slot and a Compute Module slot for flexible OS integration. The device features integrated 10 W speakers and multiple connectivity options, including dual HDMI and DisplayPort inputs, making it suitable for diverse AV setups.
Key features
- Optical Touch - ShadowSense technology enables 10-point multi-touch with 6 to 8 ms response time and supports glove input.
- High Brightness - The display offers 700 nits of brightness for superior readability in sunlit environments, reducing glare effectively.
- Versatile Connectivity - Includes two HDMI In, two DisplayPort In, VGA, DVI-D, and LAN ports for comprehensive system integration.
- Expandable Design - Features an OPS slot and a Compute Module slot for Raspberry Pi or NEC modules to customise functionality.
- Durable Build - Engineered for 24/7 operation with IP5X front protection and a 3-year warranty including the backlight.
Ideal for: Classrooms, training rooms, and corporate meeting spaces across the GCC and Africa requiring reliable interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- P404 SST
- Product type
- Interactive Flat Panel
- Key features
- ShadowSense optical touch, 10 touches, glove and stylus input, sunlight rejection, OPS slot, Compute Module slot, NFC sensor, 24/7 operation
- Compatibility
- Touch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS
- Expansion
- NEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
- IP rating
- IP5X (front), IP2X (back)
- Orientation
- Landscape, portrait
Display
- Backlight
- Edge LED
- Brightness
- 700 cd/m²
- Colour depth
- 1.07 billion colours (10-bit)
- Resolution
- Full HD
- Screen size
- 40"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- S-PVA
- Response time
- 8 ms (grey-to-grey)
Touch
- Touch accuracy
- < 1.5 mm
- Touch points
- 10-point multi-touch
- Touch resolution
- 12-bit (4096 x 4096)
- Touch response time
- 6 to 8 ms
- Touch technology
- Optical (ShadowSense)
System
- OPS slot
- OPS (Open Pluggable Specification) slot
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through)
- Ethernet (RJ45)
- LAN 100 Mbit (in and out)
- HDMI input
- HDMI In × 2 (HDCP)
- Serial port
- RS-232
- USB ports
- USB 2.0 × 1 (media player), USB 2.0 × 1 (service), USB Type-B × 1 (touch upstream), USB 2.0 × 2 (Compute Module)
- VGA input
- VGA × 1
- Ports
- VGA × 1, DVI-D × 1, DisplayPort In × 2, HDMI In × 2, DisplayPort Out × 1, USB, microSD, LAN, RS-232, 3.5 mm audio in/out
Camera & audio
- Audio in
- 3.5 mm analogue jack × 2; digital via HDMI and DisplayPort
- Audio out
- 3.5 mm analogue jack × 1
- Audio
- Integrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers)
Physical & warranty
- In the box
- Display, DVI-D cable, power cable, USB cable, remote control, user manual, CD-ROM
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 90 W (Eco shipment setting)
- Standby power
- < 0.5 W (ECO standby)
- Dimensions
- 957.1 x 577 x 72.5 mm
- Weight
- 24.5 kg
- VESA mount
- 300 x 300 mm (FDMI), M6
- Warranty
- 3 years including backlight
- Bezel size
- 33.6 mm (all sides)
- Certifications
- CE, EMC Class B, RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC P404 SST still available?
This model is discontinued. Smart-Boards can confirm current availability for remaining stock or recommend the latest successor model suitable for your region.
Which countries receive delivery?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners.
Is installation included?
On-site installation is available within the UAE only. Other countries receive the unit ready for local setup with remote guidance.
What is the touch technology?
It uses ShadowSense optical touch, providing 10-point multi-touch support with less than 1.5 mm accuracy and fast response times.
Can it run Windows or Android?
Yes, it supports native multi-touch on Windows 7-11, Linux, and Android. It also includes an OPS slot for additional computing modules.
What is the warranty?
The product comes with a 3-year manufacturer warranty that includes the backlight, supplemented by Smart-Boards after-sales support.
Does it have built-in speakers?
Yes, it includes integrated 10 W + 10 W stereo speakers. Optional 15 W + 15 W speakers are available for enhanced audio output.
