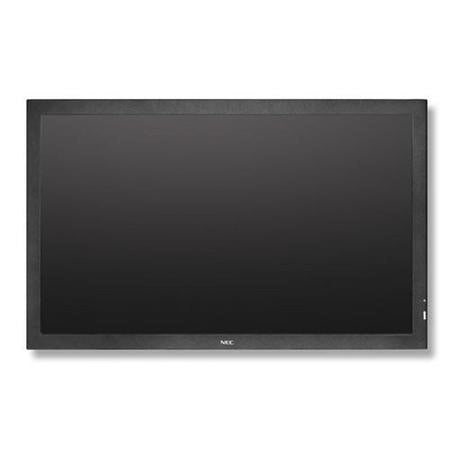

The NEC MultiSync P403 SST is a discontinued 40-inch interactive flat panel featuring ShadowSense optical touch technology for precise 10-point multi-touch input. Designed for professional environments, it offers Full HD resolution and robust connectivity options. Smart-Boards, an authorised reseller, can assist with availability or recommend current successors for buyers in the GCC and Africa.
This 40-inch LCD display utilises NEC’s ShadowSense technology to detect finger, glove, or stylus input without requiring special conductive tools. The optical touch system provides 10 simultaneous touch points with high accuracy, supporting native multi-touch on Windows, Linux, and Android. The panel features a 4 mm toughened glass surface with an anti-reflective coating to maintain clarity in bright rooms. With a 550-nit brightness and 178-degree viewing angles, it ensures consistent visibility for presenters and audiences alike.
Connectivity is comprehensive, including HDMI, DisplayPort, DVI-D, and VGA inputs for versatile integration with existing AV infrastructure. The unit includes an OPS slot for optional computing modules and supports SNMP management via Ethernet. While this model is discontinued, Smart-Boards can confirm current stock status or guide clients toward modern replacements. The site ships to GCC and African countries through established logistics partners, with on-site installation available within the UAE only.
Key features
- ShadowSense Touch - Optical touch technology supports 10-point multi-touch input using fingers, gloves, or styluses with less than 1.5 mm accuracy.
- Professional Display - 40-inch Full HD (1920x1080) VA panel with 550 nits brightness and 4 mm toughened glass for durability in high-use environments.
- OPS Computing Slot - Integrated OPS slot allows for the installation of optional Intel OPS modules to turn the display into a standalone interactive computer.
- Versatile Connectivity - Includes HDMI, DisplayPort, DVI-D, and VGA inputs alongside Ethernet and RS-232C ports for reliable system control and integration.
- Management Software - Supports NaViSet Administrator 2 for remote monitoring and configuration of displays across multiple sites in educational or corporate networks.
Ideal for: Schools, universities, and corporate offices in the GCC and Africa requiring reliable large-format displays for interactive presentations and digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- P403 SST
- Product type
- Interactive Flat Panel
- Key features
- ShadowSense touch, 10 touches, finger/glove/stylus input, ambient light rejection, OPS slot, 24/7 operation, NaViSet Administrator 2
- Expansion
- Interface extension slot (SB3 boards)
- IP rating
- IP40 (front), IP20 (back)
- Orientation
- Landscape, portrait, face-up
Display
- Backlight
- Edge LED
- Brightness
- 550 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 40"
- Surface protection
- 4 mm toughened glass, single-sided anti-reflective coating
- Viewing angle
- 178° horizontal / 178° vertical
- Contrast ratio
- 4,000:1
- Panel technology
- VA (S-PVA)
- Response time
- 6 to 8 ms
Touch
- Touch accuracy
- < 1.5 mm
- Touch points
- 10-point multi-touch
- Touch resolution
- 4096 x 4096 (12-bit)
- Touch technology
- Optical (ShadowSense)
System
- OPS slot
- OPS (NEC / Intel OPS standard)
- Operating system
- Android
- Operating hours
- 24/7
Connectivity
- Ethernet (RJ45)
- LAN 100 Mbit (SNMP)
- Serial port
- RS-232C (9-pin D-sub)
- Touch USB ports
- USB 2.0 HID (plug and play)
- Inputs
- HDMI × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1
- Outputs
- DisplayPort × 1, DVI-D × 1, HDMI × 1
Camera & audio
- Audio in
- 3.5 mm jack × 2
- Audio out
- 3.5 mm jack
- Speaker output
- 10 W + 10 W
Physical & warranty
- In the box
- Display, DVI-D cable, power cable, remote control, USB cable, CD-ROM (user guides)
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 122 W (ECO mode, shipment setting)
- Standby power
- < 0.5 W (ECO standby)
- Dimensions
- 968 x 587 x 82 mm (without stand)
- Weight
- 24 kg (without stand)
- VESA mount
- 300 x 300 mm (FDMI), 4 holes, M6
- Warranty
- 3 years (including backlight)
- Bezel size
- 39 mm
- Certifications
- CE, RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC P403 SST still manufactured?
No, the NEC MultiSync P403 SST is a discontinued product. Smart-Boards can check for remaining stock or recommend a current successor model that offers updated features and availability for your specific requirements.
Which countries receive delivery from Smart-Boards?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery costs are minimised through established logistics partners, with timing confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, units are delivered ready for local setup, with remote guidance available to assist local technicians with mounting and initial configuration.
Can I use gloves with the ShadowSense touch?
Yes, the ShadowSense optical technology is designed to reject ambient light and accurately detect input from standard gloves, as well as fingers and styluses, ensuring usability in various environmental conditions.
What is included in the manufacturer warranty?
The product comes with a 3-year manufacturer warranty that includes the backlight. Smart-Boards also provides after-sales support to assist with any technical queries or service coordination during and after the warranty period.
Does this model support digital signage?
Yes, the P403 SST supports 24/7 operation and includes an OPS slot for media players, making it suitable for continuous digital signage applications in lobbies, corridors, and reception areas.
How do I get a price for this display?
Pricing is available by quotation only. Smart-Boards offers quote-only pricing with options for education, government, bulk purchases, and tender submissions. Contact the team for a tailored quote based on your location and quantity.
