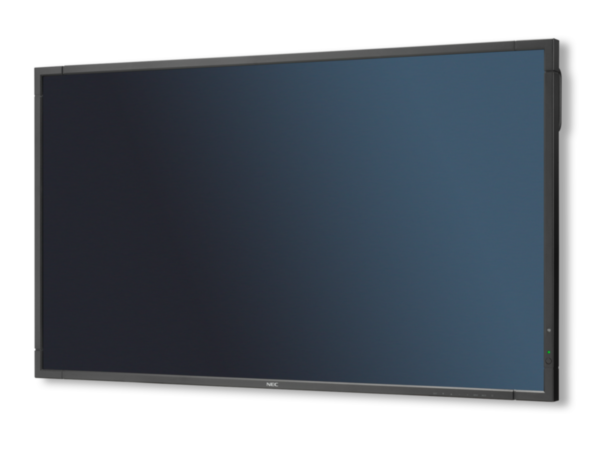

The NEC MultiSync E805 SST is an 80-inch Full HD interactive flat panel designed for large collaborative spaces. Featuring ShadowSense optical touch and an OPS slot, it supports multi-site deployments across the GCC and Africa via Smart-Boards.
This 80-inch display utilises UV²A panel technology to deliver consistent 300-nit brightness, ensuring visibility in high-ambient light environments common in GCC classrooms and boardrooms. The ShadowSense optical touch system enables precise 10-point multi-touch input using fingers, gloves, or styluses, with accuracy under 2 mm. Its edge-lit LED backlight and 5,000:1 contrast ratio provide reliable performance for daily educational or corporate use, while the black bezel design maintains a professional aesthetic.
Connectivity options include dual HDMI inputs, DisplayPort, VGA, and DVI-D, alongside an Ethernet port for SNMP management and an OPS slot for optional signage players or PCs. The unit weighs 85 kg without its stand and measures 1878 x 1097 x 104 mm, compatible with standard VESA 400 x 400 mm mounting. As a discontinued model, Smart-Boards can confirm current availability or recommend a suitable successor from the current E Series lineup for new installations.
Key features
- ShadowSense Touch - Optical touch technology supports 10 simultaneous input points with finger, glove, or stylus compatibility and accuracy better than 2 mm.
- OPS Expansion Slot - Integrated slot allows for HD-SDI, HDBaseT receivers, or Slot-in PCs to transform the display into an all-in-one interactive solution.
- High Brightness Panel - UV²A LCD technology provides 300 nits typical brightness (350 nits max) to combat glare in brightly lit lecture halls or meeting rooms.
- Comprehensive Connectivity - Features dual HDMI, DisplayPort, VGA, DVI-D, and audio inputs/outputs, plus RS-232C for centralised system control.
- Energy Efficient Design - Rated Class A energy efficiency with standby power under 0.5 W in ECO mode, reducing operational costs for 24/7 or extended use.
Ideal for: Suitable for large lecture halls, corporate boardrooms, and government training centres requiring robust touch interaction, this display suits buyers across the GCC and Africa seeking reliable multi-site AV infrastructure.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- E805 SST
- Product type
- Interactive Flat Panel
- Key features
- ShadowSense optical touch, 10 touches, finger/glove/stylus input, OPS slot, ambient light sensor, energy class A, integrated speakers
- Compatibility
- Native multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP/Vista, Mac OS. Touch via finger, gloves or stylus (≥ 4 mm)
- Orientation
- Landscape
- Protocols
- SNMP (LAN)
Display
- Colour
- Black front bezel, black back cabinet
- Backlight
- Edge LED backlight
- Brightness
- 300 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 80"
- Viewing angle
- 178° horizontal / 178° vertical
- Contrast ratio
- 5,000:1
- Panel technology
- UV²A
- Response time
- 4 ms (grey-to-grey)
Touch
- Touch accuracy
- < 2 mm
- Touch points
- 10-point multi-touch
- Touch resolution
- 12-bit (4096 x 4096)
- Touch response time
- 6 to 8 ms
- Touch technology
- Optical
System
- OPS slot
- Yes, OPS (HD-SDI, HDBaseT receiver, digital signage player or Slot-in PC)
- Operating hours
- 12/7
Connectivity
- DisplayPort
- DisplayPort In × 1 (HDCP)
- Ethernet (RJ45)
- LAN 100 Mbit × 1
- HDMI input
- HDMI In × 2 (HDCP)
- Serial port
- RS-232C (9-pin D-sub) × 1
- VGA input
- D-sub 15-pin × 1
- Inputs
- DVI-D × 1 (HDCP)
Camera & audio
- Audio in
- 3.5 mm jack × 2; digital audio via HDMI and DisplayPort
- Audio out
- 3.5 mm jack × 1
- Speaker output
- 10 W + 10 W (integrated)
Physical & warranty
- In the box
- Display, DVI-D cable, USB cable, power cable, remote control, pen and eraser, CD-ROM with user guides
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 35 °C
- Power consumption
- 227 W (Eco, shipment setting)
- Standby power
- < 0.5 W (ECO standby); < 1 W
- Dimensions
- 1878 x 1097 x 104 mm (without stand)
- Weight
- 85 kg (without stand)
- VESA mount
- 400 x 400 mm (M8, FDMI)
- Warranty
- 3 years including backlight (optional extension to 4th and 5th year)
- Bezel size
- 40 mm (all sides)
- Certifications
- CE, RoHS; energy efficiency class A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum touch accuracy of the E805 SST?
The ShadowSense optical touch system offers an accuracy of less than 2 mm, ensuring precise cursor control for writing and navigation in high-traffic environments.
Which countries does Smart-Boards deliver to?
We ship to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African countries through established logistics partners to ensure low-cost delivery.
Is on-site installation available outside the UAE?
No. On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What is the warranty coverage for this model?
The product includes a 3-year warranty covering the backlight. Optional extensions to the 4th and 5th years are available, plus Smart-Boards after-sales support.
Can I use gloves with the touch interface?
Yes. The optical touch technology supports input via finger, stylus, or gloves with a minimum thickness of 4 mm, making it suitable for various climate conditions.
What is included in the box?
The package contains the display unit, DVI-D cable, USB cable, power cable, remote control, pen, eraser, and a CD-ROM with user guides.
Is this model currently new stock?
This model is discontinued. Smart-Boards can check availability for remaining units or recommend the current successor in the E Series for new projects.
