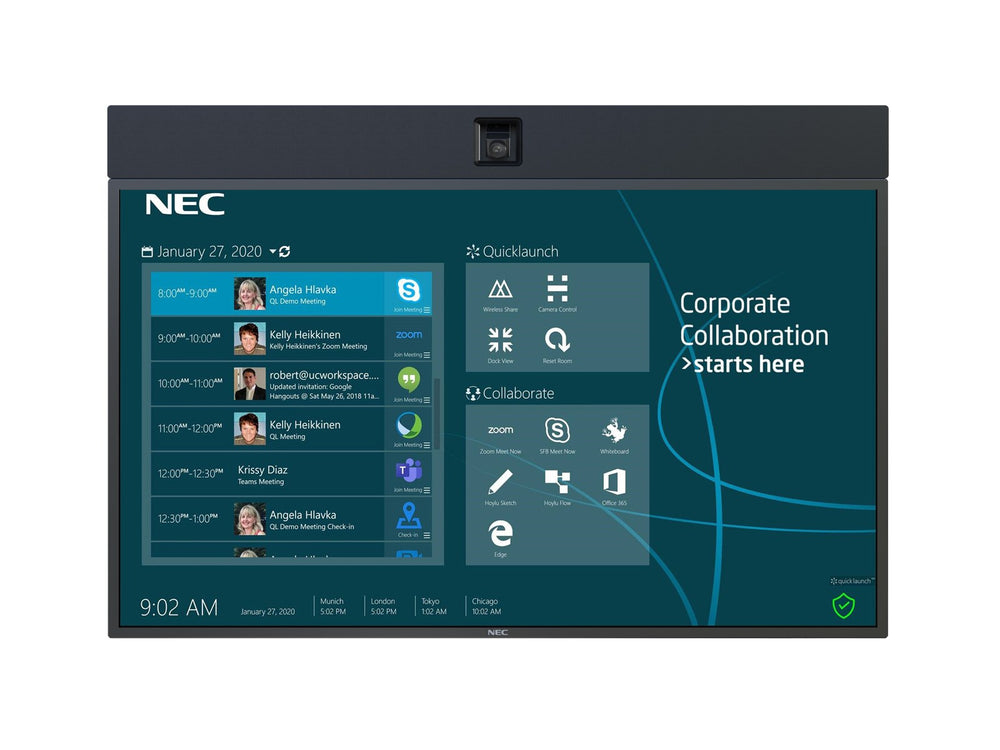

The NEC 55-inch InfinityBoard 2.1 QL is a discontinued interactive flat panel featuring a 4K IPS display and 20-point InGlass™ touch capability. Smart-Boards, an authorised reseller, supplies this unit to schools and enterprises across the GCC and Africa. Availability and successor models are confirmed via quotation.
This 55-inch interactive display combines high-contrast visuals with robust collaboration tools for professional and educational environments. It features a 3840 x 2160 native resolution on an IPS panel with 500 cd/m² brightness, ensuring clear content visibility. The InGlass™ touch technology supports up to 20 simultaneous touches, allowing multiple users to annotate and interact simultaneously. Integrated features include a Huddly IQ camera and high-end conference speakers for unified communication.
Designed for flexibility, the panel includes an OPS slot for open-pluggable PCs and a proprietary Compute Module slot, enabling tailored software configurations. Connectivity options include three HDMI and two DisplayPort inputs, alongside RS232 and LAN control for room integration. While this model is discontinued, Smart-Boards provides verified availability or recommends the current successor. The team offers live or virtual demonstrations and manages logistics for delivery to GCC and African countries.
Key features
- High-Definition Display - Features a 55-inch IPS panel with 3840 x 2160 resolution and 500 cd/m² brightness for clear, vibrant imagery.
- Multi-Touch Interaction - InGlass™ technology enables real multi-touch up to 20 points, supporting finger, glove, and stylus input.
- Video Conferencing Ready - Integrated Huddly IQ camera and high-end speakers facilitate high-quality virtual meetings and remote collaboration.
- Open PC Architecture - Includes an OPS slot and Compute Module slot for flexible PC integration and custom software deployment.
- Comprehensive Connectivity - Provides 3x HDMI, 2x DisplayPort, USB, LAN, and RS232 ports for diverse input and control requirements.
Ideal for meeting rooms, classrooms, and conference halls requiring interactive collaboration, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55-inch InfinityBoard 2.1 QL
- Accuracy
- < 1
- Controls
- LAN 100Mbit; remote control wire (3,5mm jack); RS232
- IP rating
- IP5x (front); IP2x (back)
- Orientation
- Face Up; 1; Landscape; Portrait
- Sensitivity
- 82.1 (2.83 V)
Display
- Brightness
- 500 cd/m²
- Colour depth
- 1.073 (10bit)
- Refresh rate
- 60
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178 / 178 (at contrast ratio > 10:1)
- Aspect ratio
- 16:9
- Contrast ratio
- 1100:1
- Frequency response
- 70 to 15
- Panel technology
- IPS with Edge LED backlights
- Response time
- 8 (grey-to-grey)
Touch
- Touch points
- Real multi-touch up to 20 touches
- Touch technology
- InGlass™
System
- Processor
- Intel® i7 4 x 3 GHz base frequency (up to 3.7 GHz turbo mode)
- Graphics
- 630 integrated Gen9-LP graphics controller
- OPS slot
- Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
- Operating system
- Android
- RAM
- 16 GB (DDR4), dual channel mode
- Storage
- 256 GB
- Operating hours
- 24/7
- Storage conditions
- 10 to 90
Connectivity
- Wi-Fi
- Intel Dual Band Wireless-AC 8260 802.11ac, dual band; Wi-Fi and bluetooth 4.2 adapter
- Inputs
- 1 x OPS Slot; 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
- Outputs
- 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
- Ports
- 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
- Connectivity options
- USB-HID
Camera & audio
- Audio in
- 1 x 3,5 mm jack
- Audio out
- 1 x 3,5 mm jack
- Built-in camera
- Yes
- Camera
- Huddly IQ (no microphone)
- Audio
- Integrated Speakers (10 W + 10 W)
- Audio codecs
- MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
- Zoom
- Digital Pan / Tilt / Zoom with 3x lossless digital zoom
Physical & warranty
- In the box
- Trolley (PD03Tipster, PDMHM-L, PD02MHA, PD03MHA); Wall mount (BalanceBox 400 MEDIUM, PDW S 32-55 L)
- Operating humidity
- 20 to 80
- Operating temperature
- +0 to +35
- Power consumption
- 132 Eco (shipment setting)
- Standby power
- < 0.5; < 2 (Networked Standby)
- Dimensions
- 1,284.5 x 877.3 x 90.6
- Weight
- 46.82
- Shipping dimensions
- Box 1: 1,430 x 250 x 920
- VESA mount
- 300 x 300 (FDMI); 4 holes; M6
- Shipping weight
- Box 1: 48.3; Box 2: 9.8
- Bezel size
- 18.4 (bottom); 18.4 (left/right/top)
- Power capacity (W)
- 40; 8
- Certifications
- CE; EAC; EMC Class B; FCC; RCM; REACH; RoHS; UL/C-UL
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the NEC InfinityBoard 2.1 QL still in production?
No, this model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model based on your specific requirements and site needs.
Which countries receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners at competitive rates.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
What is the touch technology used?
It uses InGlass™ touch technology, which supports up to 20 simultaneous touches using fingers, gloves, or styluses with an accuracy of less than 1mm.
Does it support Windows 10/11?
Yes, the native multi-touch system supports Windows 7 through 11, Linux, and Android, allowing integration with standard operating environments.
What PC options are available?
The panel includes an OPS slot for standard Intel OPS PCs and a proprietary Compute Module slot for custom hardware configurations tailored to your workflow.
How is pricing determined?
Pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options, with delivery times confirmed based on country and order size.
