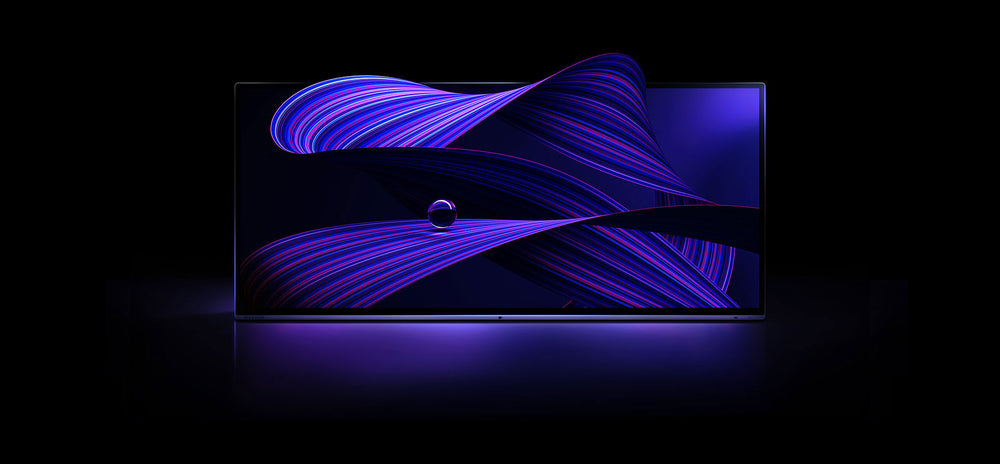

The Maxhub UW105NA is a 105-inch ultrawide digital signage display designed for high-impact visual communication. Featuring a 5120x2160 native resolution and 4000:1 contrast ratio, it delivers crisp imagery for corporate and educational environments. Smart-Boards supplies this unit across the GCC and Africa.
This ultrawide format screen utilizes a VA panel with 178-degree viewing angles to ensure visibility in large spaces. The direct-lit backlight provides 400 nits of typical brightness, suitable for standard indoor lighting conditions. With a 60Hz refresh rate and 6.5ms response time, the display renders content smoothly without significant motion blur, making it appropriate for dynamic digital signage applications.
Powered by an octa-core processor and Mali-G610 MP4 graphics, the unit runs on Android 13.0 with 8GB of memory and 64GB of storage. It supports Wi-Fi 6 via a removable module and includes an OPS slot for additional computing capabilities. The built-in media player and MAXHUB Pivot device management system simplify content updates and remote monitoring for multi-site deployments.
Key features
- Ultrawide 5K Resolution - The 105-inch screen offers a native 5120x2160 resolution in a 21:9 aspect ratio, providing ample horizontal space for timelines, dashboards, or wide video content.
- Integrated Android System - The device operates on Android 13.0 with 8GB RAM and 64GB storage, allowing standalone content playback without external media players.
- Connectivity and Control - External control is available via RS232, and the unit includes an IR receiver for remote operation alongside a removable Wi-Fi 6 module.
- Sensor and Power Efficiency - Built-in motion and light sensors optimize display performance automatically, while the unit meets ErP and Energy Star standards for energy consumption.
- Mounting and Dimensions - The display supports VESA 1000x400mm mounting patterns and includes a wall mount kit, with a net weight of 89.4kg requiring sturdy installation.
Ideal for corporate lobbies, university halls, and ministry information centers requiring wide-format digital displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- UW105NA
- Key features
- Anti-Glare, Motion Sensor, Light Sensor, Built-In Media Player, Device Management System, Screen Share
Display
- Backlight
- Direct LED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 5120 × 2160
- Screen size
- 105"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 21:9
- Contrast ratio
- 4,000:1
- Panel technology
- VA
- Response time
- 6.5 ms
System
- Processor
- ARM 4x Cortex-A76 + 4x Cortex-A55
- OPS slot
- Yes (80-pin Intel OPS)
- Operating system
- Android 13
- RAM
- 8 GB
- Storage
- 64 GB
- Operating hours
- 16/7
Connectivity
- DisplayPort
- DisplayPort × 1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 4
- HDMI output
- HDMI Out × 1
- Serial port
- RS-232 × 1
- USB-C
- USB-C × 1
- USB ports
- USB-A 3.0 × 4, USB-A 2.0 × 1
- Wi-Fi
- Removable Wi-Fi 6 module (2.4/5 GHz)
Camera & audio
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 16 W + 15 W
Physical & warranty
- Mounting type
- Wall mount × 1
- In the box
- Power Cord, Wi-Fi Module × 1, HDMI Cable × 1, Remote Control × 1, Wall Mount × 1, USB-C Cable × 1
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 550 W
- Dimensions
- 2511 x 1124 x 97 mm
- Weight
- 89.4 kg
- Shipping dimensions
- 2668 x 1305 x 280 mm
- VESA mount
- 1000 x 400 mm
- Warranty
- 3 years
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the native resolution of the Maxhub UW105NA?
The native resolution is 5120x2160 pixels, providing 5K UHD clarity in a 21:9 ultrawide format.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations, through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup with remote guidance if needed.
What is the typical brightness level?
The typical brightness is 400 nits, which is sufficient for standard indoor environments with controlled lighting.
Does the display include a media player?
Yes, the unit has a built-in media player powered by Android 13.0, allowing for standalone content playback without additional hardware.
What accessories are included in the package?
The package includes a power cord, one Wi-Fi module, a 2m HDMI cable, a remote control, a wall mount, and a 1.8m USB-C cable.
How is pricing determined for this display?
Pricing is by quotation only, with options for education, government, bulk, and tender requirements. Contact Smart-Boards for a specific quote.
