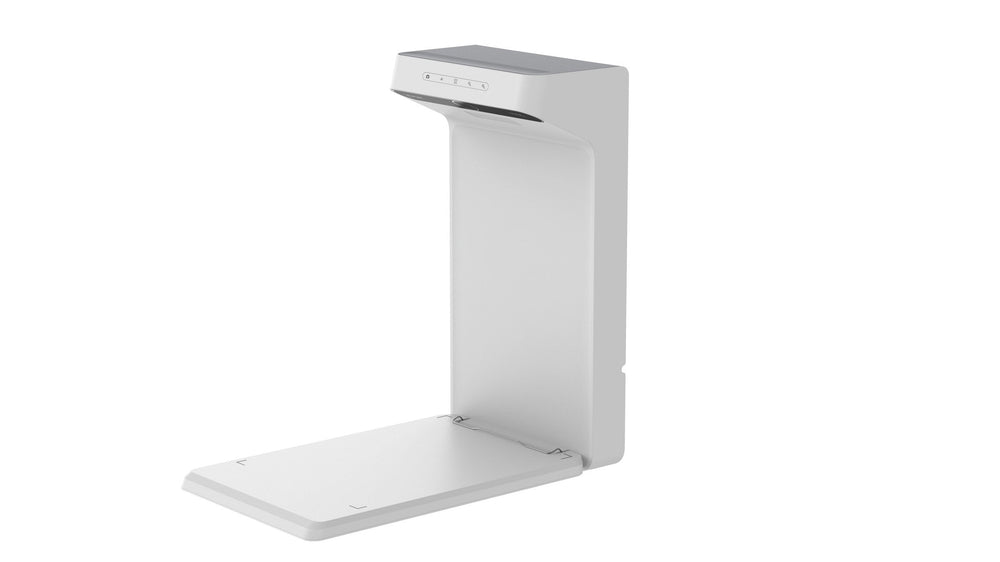

The Maxhub Document Camera is a high-resolution visual aid designed for educational and corporate presentations across the GCC and Africa. Featuring a 13 MP autofocus sensor and A4 paper support, it connects via USB to interactive flat panels for clear document sharing.
This accessory supports detailed visual communication with a 13 MP sensor delivering MJPG output up to 3120 x 4208 resolution. It includes a fill light with three adjustable levels and a built-in microphone for audio capture. The unit features an AI button and zoom controls, allowing users to highlight specific document sections or compare up to four screens simultaneously during meetings or lessons.
Designed for flexible deployment, the camera measures 230 x 423.5 x 134.8 mm and weighs 2.3 kg. It connects via a standard USB A to B cable to compatible displays. The package includes a wall-mount fixed bracket and screw pack for secure installation. Operating temperatures range from 0 to 40 °C, ensuring reliability in various regional environments across the GCC and Africa.
Key features
- High-Resolution Imaging - Captures documents at 13 MP resolution with autofocus and MJPG output up to 3120 x 4208 pixels for sharp text and images.
- A4 Document Support - Optimized for standard A4 format papers with adjustable fill light in three levels to reduce glare and ensure even illumination.
- Integrated Audio - Features a built-in microphone to capture audio commentary during document presentation, enhancing interactive sessions.
- Wall-Mount Ready - Includes a wall-mount fixed bracket and screw pack for permanent installation, with compact dimensions of 230 x 423.5 x 134.8 mm.
- USB Connectivity - Connects to displays via a single USB port using an included USB A to B cable, powered by DC 5 V input.
Ideal for: Classrooms, boardrooms, and multi-site deployments across the GCC and Africa requiring reliable document sharing and visual collaboration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Document Camera
- Product type
- Document Camera
- Key features
- 13 MP autofocus camera, A4 format, fill light, built-in microphone, one-piece arm, up to 4-screen comparison
- Functions
- Fill light (3 levels), photo capture, AI button, zoom in and out
Display
- Resolution
- 4208 × 3120
System
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- USB ports
- USB × 1
- Connectivity options
- USB (A to B cable)
Camera & audio
- Microphone
- Built-in
Physical & warranty
- Mounting type
- Wall mount (bracket included)
- In the box
- Document camera, USB cable (A to B), wall-mount fixed bracket, wall mount bracket, screw pack
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Dimensions
- 230 x 423.5 x 134.8 mm
- Weight
- 2.3 kg
- Shipping dimensions
- 318 x 486 x 206 mm
- Shipping weight
- 3.15 kg
- Input voltage
- DC 5 V
- Paper size
- A4
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum resolution of the camera?
The camera captures images at 13 MP, with MJPG output reaching up to 3120 x 4208 pixels for clear document detail.
Does it support A4 paper size?
Yes, the device is designed to accommodate standard A4 format documents and papers for educational and business use.
Is a microphone included?
Yes, the unit has a built-in microphone to allow for audio capture during presentations and interactive sessions.
Can it be wall-mounted?
Yes, the package includes a wall-mount fixed bracket and screw pack for secure installation on walls or desks.
What countries does Smart-Boards deliver to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations via established logistics partners.
Is installation included outside the UAE?
On-site installation is provided within the UAE only. For other countries, we deliver ready for local setup with remote guidance if needed.
What are the operating temperature limits?
The device operates between 0 to 40 °C and handles humidity from 10% to 90% RH, suitable for standard indoor environments.
