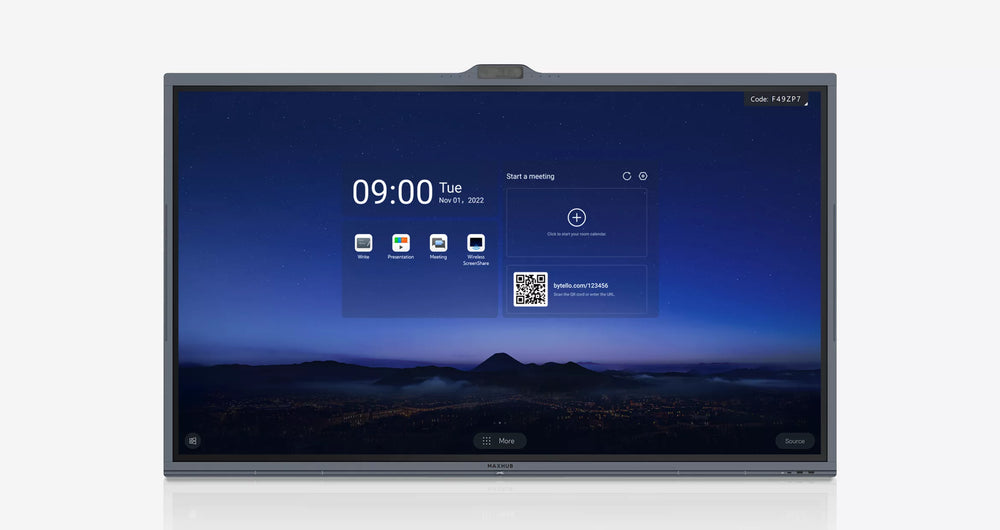

MAXHUB V8630 - 86-inch 4K Interactive Flat Panel. A 86-inch 4K touch display built for boardrooms, classrooms and training rooms.
Built for modern meeting rooms and classrooms, the MAXHUB V8630 is a 86-inch all-in-one interactive flat panel with a sharp 4K screen, responsive touch and built-in collaboration tools. It replaces the projector-and-whiteboard setup with one clean device that is fast to deploy and easy to use. Smart-Boards delivers the V8630 throughout the GCC and African markets with demos, tailored quotations and cost-efficient shipping through established logistics partners.
Key features
- 86-inch 4K UHD display at 350 cd/m² brightness for sharp, readable content
- 20 Points Multi Touch, Infrared touch for smooth, natural writing and group work
- Built-in Android on a 10th Gen Intel CPU (with MT61 PC Module) processor for apps, whiteboarding and casting
- Integrated audio (10W × 2 + 20W) that fills the room
- Built-in camera and microphones ready for video calls
- Flexible connectivity: HDMI IN × 1; USB 2.0 × 1, USB 3.0 × 2; USB Type-C × 2
| Accessories | 2 × Passive Stylus, 1 × Wall Mount |
|---|---|
| Audio out | Audio out × 1 |
| Backlight | Direct-lit LED |
| Brightness | 350 cd/m² |
| Built in camera | Yes |
| Cpu | 10th Gen Intel CPU (with MT61 PC Module) |
| Hdmi input | HDMI IN × 1 |
| Included cables | Standard Power Cord, 1 × Wi-Fi module, 1 × Type-C Cable (1.8 m) |
| Operating humidity | 10% to 90% RH |
| Operating temprature | 0 °C - 40 °C |
| Ops pc slot | Optional |
| Power consumption | 450 W |
| Power standby | 0.5 W |
| Product dimensions | 1969 × 1184 × 97 mm |
| Product weight | 60.6 kg |
|---|---|
| Resolution | 4K UHD |
| Screen size | 86" |
| Serial port | RS232 × 1 |
| Shipping dimensions | 2121 × 1304 × 225 mm |
| Speaker output | 10W × 2 + 20W |
| Speaker type | Built-in Speakers |
| Surface protection | Anti-Glare Smooth Glass |
| Touch accuracy | ± 1 mm |
| Touch points | 20 Points Multi Touch |
| Touch technology | Infrared |
| Touch usb ports | TOUCH 2.0 × 1 |
| Type c in | USB Type-C × 2 |
| Usb ports | USB 2.0 × 1, USB 3.0 × 2 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the MAXHUB V8630?
It is a 86-inch 4K interactive flat panel with multi-point touch and built-in Android - an all-in-one display for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
The V8630 runs at 4K UHD on a tft lcd with direct-lit led backlight, keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 20 Points Multi Touch, Infrared, so several people can write and annotate at the board at the same time with a natural feel.
4. Is the built-in audio strong enough?
Yes - the integrated speakers (10W × 2 + 20W) project clearly, with support for external audio when required.
5. How is the V8630 mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Because of its size we recommend professional mounting - included within the UAE.
6. Which countries can you deliver the V8630 to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
7. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
8. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the V8630 ready for your local team to set up, with remote guidance if needed.
9. What warranty do I get?
The V8630 is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
10. Do you support bulk, tender and education orders?
Yes - we offer tailored pricing for schools, universities, government and bulk or tender orders. Share your quantities and destination for a formal quotation.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
