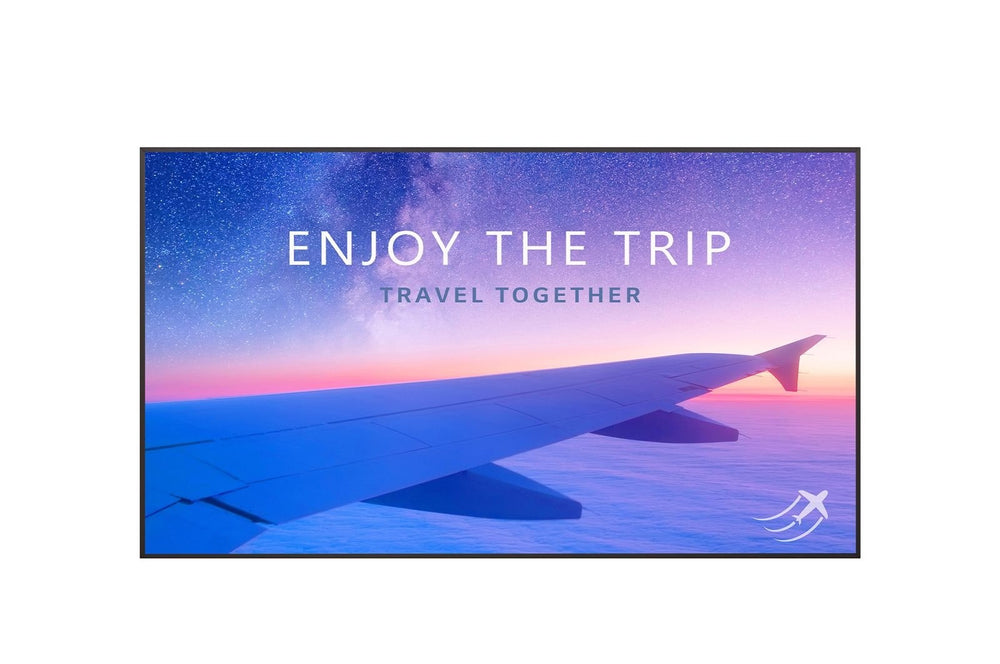

The LG 86UH7N-MP is an 86-inch UHD digital signage display designed for continuous commercial operation. Featuring a 700 nit brightness and webOS 6.0, it supports complex multi-tile configurations and 24/7 uptime. Smart-Boards supplies this unit across the GCC and Africa via quotation.
This 86-inch ADS panel delivers 3840 x 2160 resolution with 178-degree viewing angles, ensuring clarity in large spaces. The edge-lit backlight provides 700 nits of typical brightness, while the 1.07G color depth covers 95% of the BT709 gamut. Built-in Wi-Fi and Bluetooth simplify connectivity for digital content players and remote management tools.
Designed for 24/7 operation, the unit includes a temperature sensor and auto-brightness control to maintain performance. Connectivity options include two HDMI 2.2 inputs, one DP/USB-C port, and RS232C for building automation. Smart-Boards, as an authorised reseller, provides this model to schools, ministries, and corporations, offering live demonstrations and installation guidance within the UAE.
Key features
- UHD Visuals - The ADS panel provides 3840 x 2160 native resolution and 700 nit brightness for clear, vibrant images in well-lit commercial environments.
- Smart webOS Platform - Powered by webOS 6.0, the display supports local content scheduling, USB plug-and-play, and built-in Wi-Fi/BT for wireless management.
- Multi-Screen Tiling - The processor supports gapless playback and tile mode settings for up to 15x15 configurations, ideal for large video walls and digital signage networks.
- Commercial Connectivity - Inputs include two HDMI ports, one DP/USB-C port, RS232C, and RJ45 LAN, enabling robust integration with existing AV and control systems.
- 24/7 Durability - Engineered for continuous operation, the display features a temperature sensor and auto-brightness adjustment to ensure reliability in demanding settings.
- Easy Installation - The unit supports both portrait and landscape orientations and utilizes a standard 600 x 400mm VESA mount interface for flexible mounting options.
Ideal for: This display is ideal for corporate lobbies, educational institutions, and government buildings requiring reliable 24/7 digital signage, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86UH7N-MP
- Fire rating
- Class 1 (case top / back cover)
- IP rating
- IP5x
- Orientation
- Yes / Yes
Display
- Colour
- Black
- Backlight
- Edge
- Brightness
- 700 cd/m²
- Colour depth
- 1.07G (8bits + FRC)
- Refresh rate
- 120Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178 x 178
- Aspect ratio
- 16:9
- Colour gamut
- BT709 95%
- Contrast ratio
- 1,200:1
- Panel technology
- ADS
- Response time
- 8m (G to G)
System
- Operating system
- webOS 6
- Storage
- 16 GB
- Operating hours
- 24/7
Connectivity
- DisplayPort
- Yes(1), USB-C(DP Alternate mode) shared , 3840x2160@60Hz, HDCP 2.2/1.3
- Ethernet (RJ45)
- Yes (1)
- HDMI input
- Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
- Serial port
- Yes (1), 4pin Phone-jack
- USB ports
- USB2.0 Type A(2), USB2.0 Type C ((1), without PD funtion)
Camera & audio
- Audio out
- Yes (1)
- Speaker output
- Yes (10W X 2)
Physical & warranty
- In the box
- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA)
- Operating humidity
- 10 % to 80 %
- Operating temperature
- 0°C to 40°C
- Standby power
- 0.5 W
- Dimensions
- 1928.8 x 1099.8 x 29.7 mm (without IR, Handle)
- Weight
- 53.0 kg
- Shipping dimensions
- 2100 x 1250 x 253 mm
- VESA mount
- 600 x 400
- Shipping weight
- 66.7 kg
- Bezel size
- 13.4 mm (Even)
- Input voltage
- AC 100-240V~, 50/60Hz
- Power source
- Built-In Power
- Certifications
- CB / NRTL
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 86UH7N-MP still in production?
No, this model is discontinued. However, Smart-Boards can confirm current availability or recommend the latest successor model that meets your specific requirements.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners to ensure cost-effective delivery.
Can you install this display outside the UAE?
On-site installation is only available within the UAE. For other regions, we deliver the unit ready for local setup, providing remote guidance and documentation to assist your team.
What is the brightness level of this screen?
The typical brightness is 700 nits, which is sufficient for most indoor commercial environments and helps maintain visibility under standard ambient lighting conditions.
Does the display support 24/7 operation?
Yes, the LG 86UH7N-MP is designed for 24-hour daily operation and includes sensors to monitor temperature and adjust brightness automatically for sustained performance.
What smart features are built into the webOS?
It includes webOS 6.0 with local content scheduling, group manager capabilities, USB plug-and-play, and built-in Wi-Fi and Bluetooth for wireless connectivity.
How is pricing handled for this product?
Pricing is provided by quotation only. We offer options for education, government, bulk purchases, and tender submissions, with delivery times confirmed upon request.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
