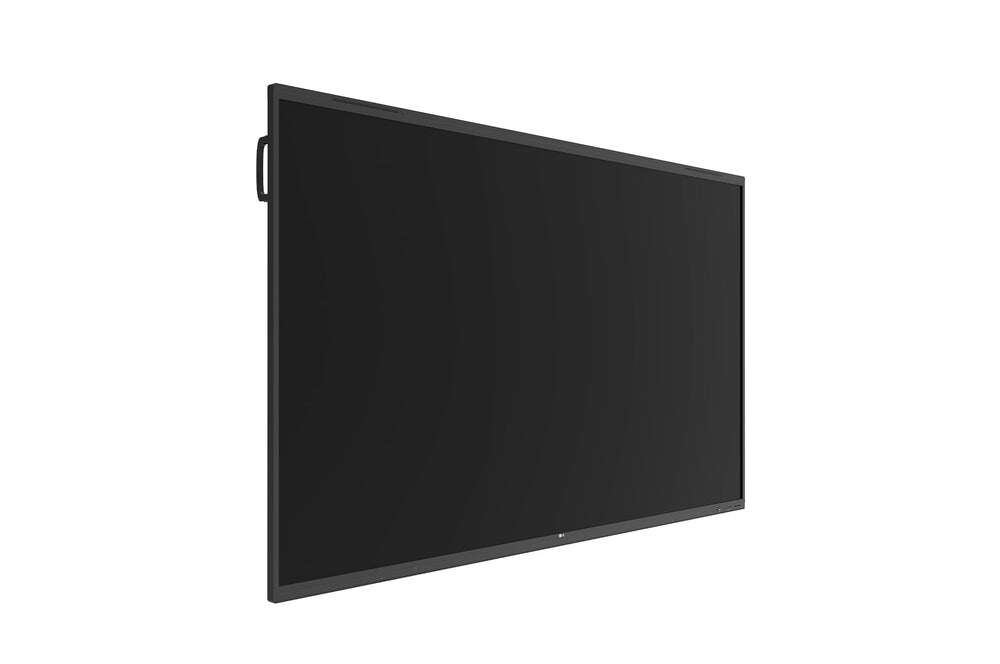

The LG CreateBoard Pro 86TR3PN is an 86-inch UHD interactive flat panel designed for collaborative environments. It features a 3840x2160 IPS display, Android 13 operating system, and integrated audio for immediate deployment. Smart-Boards supplies this model to educational and corporate clients across the GCC and Africa.
This 86-inch display delivers 3840x2160 resolution on an IPS panel, ensuring clear visibility from 178-degree viewing angles. The integrated Android 13 (EDLA) OS enables native app usage without external computers, while dual built-in Wi-Fi and Bluetooth slots allow flexible connectivity. Built-in speakers provide 18Wx2 + 8Wx2 audio output, reducing the need for external sound systems in meeting rooms or classrooms.
Connectivity includes four HDMI inputs, one DisplayPort, and multiple USB ports for peripheral attachment. The unit supports Wake on LAN and Fast Power On for efficient management in multi-site rollouts. Designed for 16 hours of daily operation, the tempered safety glass surface withstands heavy use. Smart-Boards provides manufacturer warranty coverage and after-sales support for installations in the UAE and delivery-ready units for other GCC and African countries.
Key features
- UHD IPS Display - The 86-inch screen offers 3840x2160 native resolution with 400nit brightness and 10-bit color depth for accurate visual reproduction.
- Android 13 OS - Built-in Android 13 with EDLA certification allows direct app installation and operation without a connected PC.
- Integrated Audio - Four built-in speakers deliver 72W total power (18Wx2 + 8Wx2) for clear audio output in conference or lecture settings.
- Connectivity Options - Ports include four HDMI inputs, one DisplayPort, USB-C, USB 3.0, USB 2.0, RJ45 LAN, and RS232C for versatile integration.
- Safety & Mounting - Tempered safety glass protects the screen, while the 800x600mm VESA pattern supports standard wall or stand mounting.
Ideal for: Suitable for lecture halls, boardrooms, and collaborative workspaces, this panel suits buyers across the GCC and Africa seeking reliable interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable (3 M × 1)
- Key features
- Wake on LAN, Sensors: Temperature, Auto brightness
Display
- Backlight
- Direct
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Safety Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 4,000:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 50 Points Multi Touch
- Touch response time
- ≤ 2.5 ms
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A76 + 4x Cortex-A55
- Graphics
- Mali G52MP2
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Temperature Sensor, Auto Brightness Sensor
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- DisplayPort
- DP × 1
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI In × 4
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- Touch-USB 2.0 × 2
- USB-C
- Type-C × 2
- USB ports
- USB 3.0 × 4, USB 2.0 × 3
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5 GHz
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- 8 (Built-in)
- Speaker output
- 18 W × 2, 8 W × 2
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable (3 M × 1), Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- < 530 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1957 × 1171 × 86 mm
- Weight
- 63.5 kg
- Shipping dimensions
- 2110 × 1291 × 225 mm
- VESA mount
- 800 × 600 mm (VESA)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the LG 86TR3PN have built-in Wi-Fi and Bluetooth?
Yes. The device includes built-in Wi-Fi and Bluetooth via a slot type module, allowing users to connect peripherals or share screens wirelessly without additional hardware.
What is the operating system on this interactive panel?
It runs on Android 13 with EDLA certification. This allows direct installation of Android apps, enabling standalone operation for presentations and collaboration without a computer.
Which countries can Smart-Boards deliver this product to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Delivery times and costs are confirmed on the quotation based on the destination.
Is on-site installation included for orders outside the UAE?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed to assist with the installation process.
What is the screen resolution and refresh rate?
The panel has a native 3840x2160 (UHD) resolution and a 60Hz refresh rate, providing sharp image quality suitable for detailed documents and media playback in professional environments.
Does the LG CreateBoard Pro support screen sharing?
Yes. It supports screen sharing via the CreateBoard Share feature, allowing users to wirelessly project content from compatible devices directly onto the 86-inch display for collaborative work.
What warranty and support does Smart-Boards provide?
Smart-Boards is an authorized reseller providing the manufacturer's warranty plus Smart-Boards after-sales support. This ensures technical assistance and spare parts availability for the product across the GCC and Africa.
