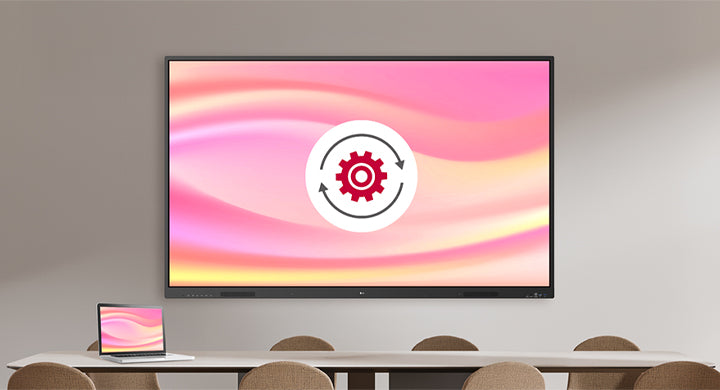

The LG CreateBoard 86TR3BQ is an 86-inch UHD interactive digital board designed for collaborative enterprise and educational environments. It features a 3840x2160 resolution, 350nit brightness, and integrated OPS compatibility, supplied by Smart-Boards to organisations in the GCC and Africa.
This 86-inch IPS panel delivers 3840x2160 resolution with 350nit brightness for clear visibility in diverse lighting conditions. The 178-degree viewing angles ensure content remains legible across wide seating arrangements. With a 10-bit colour depth and 5000:1 dynamic contrast ratio, the display renders precise details for professional presentations and interactive sessions.
Connectivity includes three HDMI inputs, four USB 3.0 ports, and a USB Type-C port for versatile device integration. The built-in OPS slot supports local processing, while RS232C and LAN ports enable centralised management. Smart Energy Saving features reduce power consumption, and the tempered glass surface provides durable, shatter-proof performance for high-traffic areas.
Key features
- UHD Display - The 86-inch IPS panel offers 3840x2160 native resolution with 350nit brightness and 178-degree viewing angles.
- OPS Compatibility - A built-in OPS slot allows for local computing integration, supporting Windows-based interactive software without external devices.
- Connectivity Options - Equipped with three HDMI inputs, four USB 3.0 ports, one USB Type-C, RS232C, and LAN ports for robust system integration.
- Durable Construction - Tempered safety glass with shatter-proof and anti-reflective coatings ensures longevity and readability in bright environments.
- Management Features - Supports Wake on LAN, RS232C sync, and Smart Energy Saving to simplify IT administration and reduce operational costs.
Ideal for boardrooms, lecture halls, and corporate training centres requiring reliable 86-inch UHD displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Key features
- Wake on LAN
Display
- Backlight
- Direct
- Brightness
- 350 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 40 Points Multi Touch
- Touch response time
- ≤ 10 ms
System
- Ambient light sensor
- Yes
- OPS slot
- Optional
- Operating system
- Android
Connectivity
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI × 3
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 2
- USB-C
- USB Type C × 1
- USB ports
- USB 3.0 Type A × 4, USB 2.0 Type A × 1
- Wake-on-LAN
- Yes
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 16 W × 2
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Wall Mount(WM-L000S), Floor Stand(ST-000F, ST860F)
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- < 437 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1957 × 1160 × 97 mm
- Weight
- 51 kg
- Shipping dimensions
- 2110 × 1283 × 225 mm
- VESA mount
- 800 × 600 mm (VESA)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 86TR3BQ suitable for large meeting rooms?
Yes, the 86-inch screen size and 350nit brightness make it suitable for large rooms. The 178-degree viewing angles ensure content is visible from wide seating positions. It supports multi-device connectivity for flexible meeting setups.
Does this model include an OPS computer slot?
Yes, the LG 86TR3BQ includes a built-in OPS slot for local processing. This allows you to install a compatible Windows-based OPS module to enable standalone interactive functionality without external computers.
Which countries in the GCC and Africa can receive delivery?
Smart-Boards ships to GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain. We also deliver to selected African countries through established logistics partners to ensure cost-effective transport for all regions.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, units are delivered ready for local setup. Remote guidance is available to assist local technicians with mounting and configuration during the process.
What is the warranty coverage for this panel?
The product comes with the manufacturer's warranty plus Smart-Boards after-sales support. The specific warranty length is confirmed in the quotation. Our team provides documentation and support for claims in your region.
Can I get a demonstration before purchasing?
Yes, we offer live or virtual demonstrations before purchase. This allows you to verify the 86-inch UHD display quality and connectivity options. Contact our team to schedule a session tailored to your requirements.
What is the power consumption of this unit?
The unit features Smart Energy Saving capabilities to reduce power usage. It supports AC 100-240V input and has a power-off consumption of 0.5W. Exact wattage figures are provided in the technical specifications sheet upon request.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
