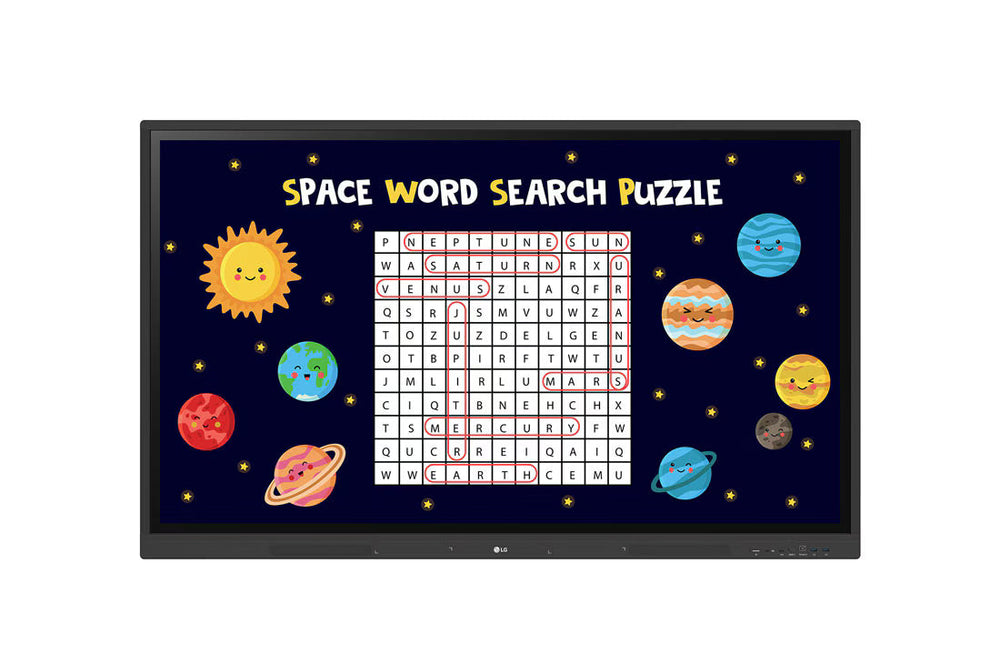

The LG CreateBoard 98TR3DK is a 98-inch UHD interactive flat panel designed for collaborative environments across the GCC and Africa. Featuring a 3840x2160 IPS display and 40-point multi-touch, it supports hybrid learning and enterprise meetings through integrated Android 13 and Wi-Fi 6 connectivity.
This 98-inch interactive display utilises an IPS panel with a 3840x2160 native resolution to deliver clear visuals in large conference rooms or lecture halls. The screen operates at 60Hz with a 1200:1 contrast ratio, ensuring legible text and accurate colour reproduction for presentations. A built-in quad-core processor and 8GB of RAM power the integrated Android 13 operating system, allowing users to run applications directly on the device without external computers. Connectivity options include three HDMI inputs supporting HDCP2.2 and a USB Type-C port for single-cable data and power transfer.
Designed for heavy daily use, the unit supports 16 hours of operation per day with a maximum brightness of 400 nits. The touch interface responds in under 5ms and supports up to 40 touch points on Windows systems, facilitating simultaneous input for group brainstorming sessions. Wireless capabilities are handled by Wi-Fi 6 and Bluetooth 5.0, enabling easy screen sharing via LG CreateBoard Share. For management, the panel includes LG ConnectedCare DMS for remote monitoring across multiple sites, and it features built-in 15W stereo speakers for audio output.
Key features
- UHD Visual Clarity - The 98-inch IPS panel provides a 3840x2160 resolution with a 1200:1 contrast ratio for sharp text and image detail in bright rooms.
- Multi-Touch Collaboration - Supports up to 40 simultaneous touch points on Windows and 32 on Android, with a response time of ≤5ms for fluid interaction.
- Integrated Android 13 OS - Runs on Android 13 with 8GB RAM and 64GB storage, allowing direct app usage and background image customization without external PCs.
- Wireless Connectivity - Equipped with Wi-Fi 6 (802.11ax) and Bluetooth 5.0 for fast screen sharing and peripheral pairing in busy network environments.
- Centralised Management - Includes LG ConnectedCare DMS for remote device monitoring and software updates, simplifying administration for multi-site deployments.
Ideal for universities, government ministries, and corporate offices in the GCC and Africa requiring large-format collaboration spaces.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable 3 M × 1
- Key features
- Wake on LAN, Sensors: Auto brightness
Display
- Backlight
- Direct
- Brightness
- 440 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 98"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 40 Points Multi Touch
- Touch response time
- ≤ 5 ms
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A55
- Graphics
- Mali G52MP2
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Auto Brightness Sensor
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 2
- USB-C functions
- USB-PD, DP-Alt
- USB-C
- Type-C × 1
- USB ports
- USB 3.0 × 4, USB 2.0 × 1
- VGA input
- VGA × 1
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 15W × 2
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable 3 M × 1, Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 395 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 2244 × 1323 × 91 mm
- Weight
- 103.6 kg
- Shipping dimensions
- 2406 × 1474 × 280 mm
- VESA mount
- 800 × 600 mm (VESA)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum number of simultaneous touch points?
The LG CreateBoard 98TR3DK supports up to 40 touch points on Windows operating systems and up to 32 touch points on Android. This allows multiple users to write or navigate simultaneously without lag.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times and costs are confirmed on the quotation based on the specific destination and order size.
Is on-site installation included for orders outside the UAE?
On-site installation is available only within the UAE. For deliveries to other countries, the unit arrives ready for local setup. Smart-Boards provides remote guidance to assist local teams with mounting and initial configuration.
Does the panel support OPS modules?
Yes, the LG 98TR3DK is OPS type compatible with a built-in power supply for the slot. This allows you to add an optional OPS PC for Windows or Linux environments while maintaining the Android system for standalone use.
What are the connectivity options for external devices?
The panel features three HDMI ports (HDCP2.2), one VGA input, USB 3.0 Type-A (4 ports), and one USB Type-C port supporting DP-Alt and USB-PD. It also includes Gigabit LAN and RS232C for control integration.
What is the brightness level of the screen?
The display offers a typical brightness of 400 nits with glass and 390 nits without glass. The maximum brightness reaches 440 nits without glass, ensuring visibility in well-lit conference rooms and classrooms.
Can I purchase accessories separately?
Yes, Smart-Boards supplies compatible accessories such as mobile stands, wall mounts, and stylus pens. Contact our team for a quotation on specific accessories required for your installation in the GCC or Africa.
