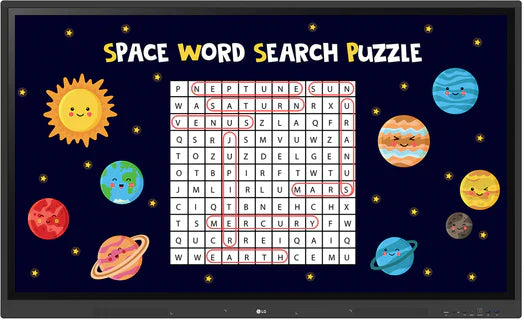

The LG CreateBoard 86TR3DK is an 86-inch UHD interactive flat panel designed for collaborative environments. Featuring Android 13, 40-point multi-touch, and built-in WiFi 6, it supports modern digital workflows. Smart-Boards supplies this model across the GCC and Africa with quotation-based pricing.
This 86-inch display utilizes IPS panel technology to deliver a native 3840x2160 resolution with a 1200:1 contrast ratio. The screen achieves 400 nits brightness under typical conditions, ensuring visibility in well-lit spaces. Powered by a quad-core processor and 8GB RAM, the integrated Android 13 operating system enables smooth multitasking and app performance without external hardware.
Connectivity is robust, featuring HDMI, VGA, RS232C, and Gigabit LAN inputs alongside USB-C with DisplayPort Alt Mode and power delivery. The device supports OPS module slots for flexible computing integration and includes LG ConnectedCare for remote device management. With a 58.6kg weight and VESA 800x600 mounting compatibility, it suits fixed or mobile stand installations.
Key features
- UHD Display Quality - The 86-inch IPS panel provides 3840x2160 resolution with 1.07 billion colors and 178-degree viewing angles.
- Android 13 Operating System - Built-in Android 13 with 8GB RAM and 64GB storage allows direct app execution and content sharing.
- Multi-Touch Interaction - Supports up to 40 simultaneous touch points with ±1mm accuracy and ≤5ms response time on Windows, Mac, and Android.
- Comprehensive Connectivity - Includes three HDMI ports, one VGA input, RS232C, RJ45 LAN, and a USB-C port with DisplayPort Alt Mode.
- Integrated Audio and Management - Features dual 15W speakers, LG ConnectedCare DMS support, and OPS slot compatibility for enterprise management.
- Included Accessories - Package contains a remote controller, two writing pens, power cord, USB cable, HDMI cable, and WiFi module.
Ideal for: Schools, universities, and corporate training centers across the GCC and Africa requiring reliable, high-capacity interactive displays for multi-site deployment.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, HDMI Cable (3 M × 1)
- Key features
- Wake on LAN, Sensors: Auto brightness
Display
- Backlight
- Direct
- Brightness
- 440 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 68%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 40 Points Multi Touch
- Touch response time
- ≤ 5 ms
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A55
- Graphics
- Mali G52MP2
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Auto Brightness Sensor
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 2
- USB-C functions
- USB-PD, DP-Alt
- USB-C
- USB Type C × 1
- USB ports
- USB 3.0 × 4, USB 2.0 × 1
- VGA input
- VGA × 1
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 15W × 2
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1, Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 385 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1957 × 1160 × 100 mm
- Weight
- 58.6 kg
- Shipping dimensions
- 2110 × 1283 × 225 mm
- VESA mount
- 800 × 600 mm (VESA)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the LG CreateBoard 86TR3DK support multi-point touch?
Yes. The panel supports up to 40 simultaneous touch points with an accuracy of ±1mm and a response time of ≤5ms. It is compatible with Windows, Mac, Linux, and Android operating systems via USB connection.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery costs are minimized through established logistics partners, and timelines are confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup. Remote guidance is available to assist local teams with installation and configuration during the deployment process.
What is the internal storage capacity?
The device includes 64GB of internal storage and 8GB of RAM. This allows for the installation of Android applications and caching of content directly on the panel without requiring an external computer for basic operations.
Does the panel include a WiFi module?
Yes. The package includes a built-in WiFi module supporting 802.11a/b/g/n/ac/ax standards (WiFi 6). This enables wireless screen sharing via LG CreateBoard Share and stable network connectivity for DMS features.
What is the power consumption?
The unit operates on 100-240V~ 50/60Hz power. In standby mode, power consumption is ≤0.5W. It features smart energy saving capabilities managed through the Android interface to optimize power usage during idle periods.
Can the display be mounted on a wall?
Yes. The panel supports the VESA™ Standard Mount Interface of 800x600mm. This allows for secure wall mounting or attachment to compatible mobile stands. Ensure the mounting hardware supports the 58.6kg weight of the display head.
