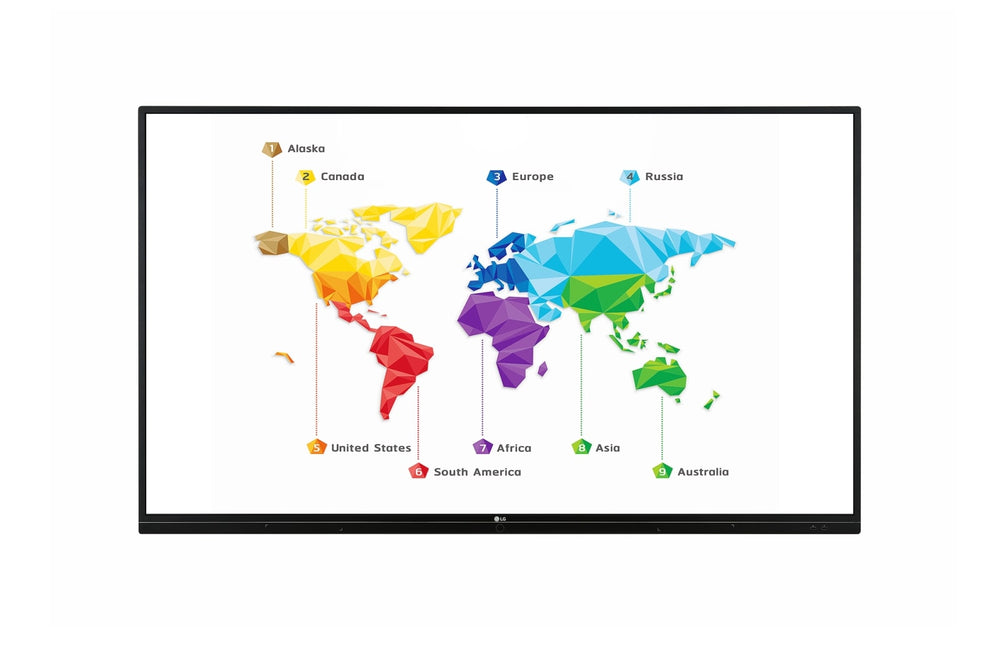

The LG 86TR3BF is an 86-inch UHD interactive flat panel designed for collaborative environments across the GCC and Africa. This model features a 330-nit IPS display, 20-point infrared touch, and built-in Android and Windows compatibility for versatile digital presentations.
This 86-inch interactive display delivers 4K UHD clarity with a 330-nit brightness level, ensuring legible content in well-lit conference rooms and classrooms. The IPS panel provides wide 178-degree viewing angles, allowing multiple users to see accurate colours from the side. Its 20-point multi-touch capability supports simultaneous writing and navigation, facilitating effective group brainstorming sessions.
Designed for institutional use, the unit includes an OPS slot for flexible computing integration and robust connectivity via HDMI, USB, and RJ45 ports. The embedded speakers provide 24W of audio output, reducing the need for external sound systems. Smart-Boards supplies this LG CreateBoard series to educational and corporate clients, offering expert guidance on setup and regional logistics.
Key features
- High Precision Touch - Infrared technology enables 20-point multi-touch with 1.5mm accuracy for smooth writing and navigation.
- 4K UHD IPS Display - The 86-inch screen offers 3840 x 2160 resolution and 330 nits brightness with a 178-degree viewing angle.
- Integrated OPS Slot - Supports OPS Type compatible computing modules for seamless Windows and Android system integration.
- Comprehensive Connectivity - Equipped with three HDMI inputs, USB ports, RS232C, and RJ45 LAN for versatile device connection.
- Built-in Audio - 24W stereo speakers (12W + 12W) provide clear audio output for presentations without external hardware.
Ideal for: Suitable for classrooms, boardrooms, and training centres requiring large-format collaboration, ideal for buyers across the GCC and Africa managing multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86TR3BF
- Product type
- Interactive Flat Panel
- Key features
- Infrared touch, 20-point multi-touch, 330 nits with protection glass, embedded writing software, OPS compatible, 24 W speakers, 30,000-hour minimum life, Windows and Android support
- Compatibility
- Windows 7/8/10/XP, Linux, macOS, Android
- Duty cycle
- 16 hours/day
- Orientation
- Landscape
Display
- Brightness
- 330 cd/m²
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 1,100:1
- Panel technology
- IPS
- Response time
- 8 ms (G to G)
Touch
- Touch accuracy
- 1.5 mm
- Touch points
- 20-point multi-touch, 10 writing points
- Touch response time
- 60 ms (Android) / 100 ms (Windows)
- Touch technology
- Infrared
System
- OPS slot
- Yes (OPS Type compatible)
Connectivity
- Touch USB ports
- USB 2.0 Type-B × 2
- USB ports
- USB 3.0 × 3, USB 2.0 × 3
- Ports
- HDMI In × 3, RGB In, Audio In, HDMI Out × 1, Optical Out, RS232C In, RJ45 LAN
Camera & audio
- Speaker output
- 24 W (12 W + 12 W)
Physical & warranty
- In the box
- Power cord, USB cable (Type A to Type B), HDMI cable, two writing pens, remote control, user manual, quick start guide
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 365 W (typical), 419 W (maximum)
- Dimensions
- 1957 x 1160 x 86 mm
- Weight
- 67 kg (head only)
- Shipping dimensions
- 2230 x 1499 x 285 mm
- VESA mount
- 800 x 600 mm
- Shipping weight
- 109 kg (packed)
- Bezel size
- 17.7 mm top and sides, 45.7 mm bottom
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, NRTL, FCC Class A, CE
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 86TR3BF currently available for purchase?
This model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor models that meet your specific technical requirements.
Which countries in the GCC and Africa receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners at competitive rates.
Is installation provided outside the UAE?
On-site installation is limited to the UAE. For other countries, units are delivered ready for local setup with remote guidance available to assist your technical team.
What is the touch technology used in this panel?
The LG 86TR3BF uses infrared touch technology, supporting 20-point multi-touch and 10 writing points with 1.5mm accuracy.
Does the unit support OPS computing modules?
Yes, the panel includes an OPS slot compatible with standard OPS Type modules, allowing easy integration of Windows or Android computing systems.
What operating systems are compatible with the touch interface?
The touch interface works with Windows 7/8/10/XP, Linux, macOS, and Android, ensuring broad compatibility with existing institutional software.
How is the price determined for this product?
Pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options; contact the team for a tailored quote based on your region.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
