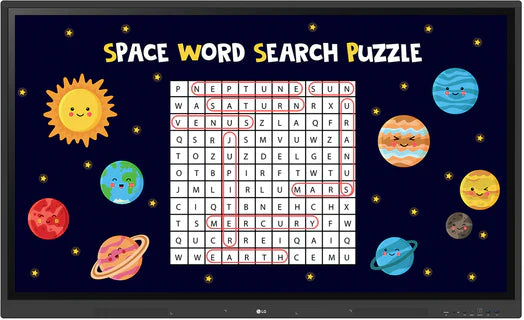

The LG CreateBoard 55TR3DK is a 55-inch UHD interactive flat panel designed for collaborative environments. It features 40-point multi-touch, a built-in Android operating system, and an OPS slot. Smart-Boards supplies this unit across the GCC and Africa with quotation-based pricing.
This 55-inch interactive display delivers 3840 x 2160 resolution with IPS panel technology for consistent viewing angles. It supports up to 40 touch points on Windows or 32 on Android, with a response time under 8ms. The device includes built-in 15W stereo speakers and runs on a quad-core processor, ensuring smooth operation for digital signage or classroom use.
Connectivity is handled via three HDMI inputs, USB-C, and gigabit LAN, with an RJ45 output for network daisy-chaining. The unit accepts standard OPS modules for flexible computing integration. Power consumption is low at 0.5W in standby, and the panel operates reliably between 0°C and 40°C. Smart-Boards provides this model to educational and corporate buyers in the region.
Key features
- UHD Interactive Display - The 55-inch screen offers 3840 x 2160 native resolution with 16.7 million colors and 390 nits brightness for clear visual content.
- Multi-Touch Capability - Users can interact with up to 40 touch points on Windows systems or 32 points on Android, with ±1mm accuracy for precise input.
- Integrated Android OS - The panel runs a quad-core Android operating system, providing immediate usability without a connected PC for presentations and collaboration.
- OPS Module Support - A dedicated slot allows for the installation of OPS computers, enabling flexible computing setups while maintaining a clean display profile.
- Comprehensive Connectivity - The interface includes three HDMI inputs, USB-C, four USB 3.0 ports, and gigabit LAN for robust audio-visual integration.
Ideal for classrooms, boardrooms, and training centers requiring high-touch interaction and clear UHD visuals, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1
- Key features
- PIP, PBP (2), Screen Share, Smart Energy Saving, Wake on LAN, Auto Brightness Sensor, Booting Logo Image, Connected Care
- Orientation
- Landscape
Display
- Backlight
- Direct
- Brightness
- 390 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 40 Points Multi Touch
- Touch response time
- ≤ 5 ms
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A55
- Graphics
- Mali G52MP2
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Auto Brightness Sensor
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI (HDCP 2.2) × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 2
- USB-C functions
- USB-PD, DP-Alt
- USB-C
- USB Type C × 1
- USB ports
- USB 3.0 × 4, USB 2.0 × 1
- VGA input
- VGA × 1
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 15W × 2
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1, Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 170 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1271 × 774 × 87 mm
- Weight
- 26.1 kg
- Shipping dimensions
- 1401 × 859 × 220 mm
- VESA mount
- 400 × 200 mm (VESA)
- Bezel size
- 18 mm (T/L/R), 45 mm (B)
- Power source
- 100-240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the LG 55TR3DK support OPS modules?
Yes, the panel includes a dedicated OPS slot, allowing you to insert an OPS PC for computing functionality. This feature supports flexible integration for various commercial and educational setups without adding external hardware clutter.
What is the touch point capacity?
The LG CreateBoard 55TR3DK supports up to 40 touch points on Windows operating systems. On its native Android interface, it handles up to 32 simultaneous touch points, ensuring smooth collaboration for multiple users.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Delivery times are confirmed on the quotation based on the specific country and order size.
Is on-site installation available outside the UAE?
No, on-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed, ensuring cost-effective logistics for international orders.
What audio features are built-in?
The panel includes two 15W built-in speakers for clear audio output. It also features audio in and audio out ports, allowing connection to external sound systems or microphones as required for your specific environment.
Can this panel be mounted on a wall?
Yes, the LG 55TR3DK supports standard VESA mounting with a 400 x 200 mm interface. This allows for flexible installation options, including wall mounts or adjustable stands, to suit different room layouts and viewing heights.
What is included in the box?
The package contains the display, two writing pens, a remote controller with batteries, and essential cables including a 3-meter power cord, 5-meter USB cable, and 3-meter HDMI cable. A user manual and quick start guide are also provided.
