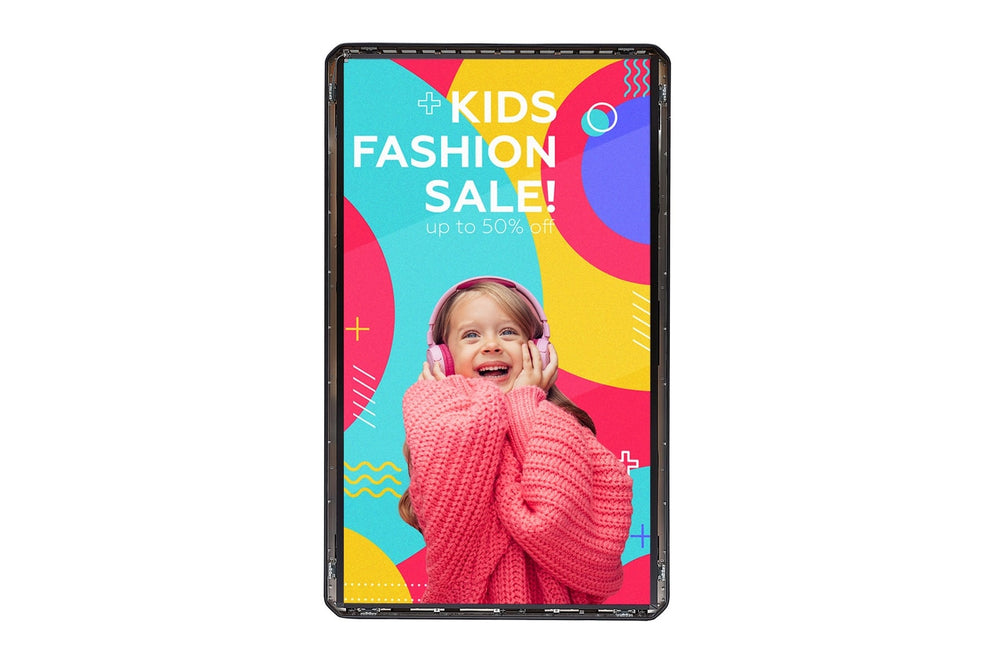

The LG 86XF3SK is an 86-inch open-frame digital signage display engineered for high-glare environments. Featuring 3,300-nit brightness and portrait orientation, it ensures clear visibility in direct sunlight. Smart-Boards supplies this robust solution for commercial and public sector sites across the GCC and Africa.
This open-frame panel utilises an IPS panel to deliver 3,300 nits of typical brightness, ensuring content remains legible even under intense direct sunlight. The 86-inch screen size provides 3,840 x 2,160 resolution at 120 Hz, supported by webOS 6.0 for streamlined media management. Designed for 24/7 operation, it maintains performance within a 0 to 50 °C operating temperature range, making it suitable for demanding digital signage applications where standard displays fail.
Built for durability and integration, the unit weighs 140 kg and features a 52 mm top/bottom bezel. It supports portrait orientation only, with dimensions of 1,202.8 x 2,003 x 163.88 mm (W x H x D). Connectivity includes HDMI, DP, RS232C, and RJ45 LAN ports for reliable control. Smart-Boards, as an authorised reseller, provides quote-only pricing, manufacturer warranty, and after-sales support for installations in the UAE and other GCC and African regions.
Key features
- High Brightness - 3,300-nit typical brightness ensures visibility in direct sunlight and high-glare environments.
- Portrait Design - Optimised for portrait orientation only, with a 52 mm top and bottom bezel for clean vertical displays.
- 4K UHD Clarity - Delivers 3,840 x 2,160 resolution on an 86-inch IPS panel with 120 Hz refresh rate for sharp images.
- webOS Platform - Runs on webOS 6.0 with 8 GB eMMC storage for efficient content management and playback.
- Robust Connectivity - Equipped with HDMI, DP, RS232C, and LAN ports for easy integration into existing AV control systems.
Ideal for transit hubs, retail storefronts, and public information kiosks requiring high visibility, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86XF3SK
- Product type
- Open-Frame Digital Signage Display
- Key features
- Direct sunlight operation, 4K UHD at 120 Hz, 3,300-nit brightness, portrait orientation, webOS 6.0, SuperSign CMS, 24/7 operation, Smart Energy Saving
- Duty cycle
- 24/7
- Orientation
- Portrait (landscape not supported)
Display
- Colour
- Black
- Brightness
- 3300 cd/m²
- Colour depth
- 1.07 billion colours
- Refresh rate
- 120 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178º x 178º
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 68%
- Contrast ratio
- 1,100:1 (typical)
- Panel technology
- IPS
- Response time
- 8 ms
System
- Operating system
- webOS 6
- Storage
- 8 GB
Connectivity
- Ports
- HDMI In × 1, DP In × 1, Audio In, RS232C In, RJ45 (LAN) In, IR In, USB 2.0 × 1, External Speaker Out, RS232C Out, RJ45 (LAN) Out, IR Out (shared with RS232C)
Physical & warranty
- In the box
- Remote controller (2 batteries), HDMI cable, USB cables (2), LAN extension cables (2), SMA cables (2), IR cable, power cables, cord grips, screws, corner brackets, manual
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 50 °C (without direct sunlight), 0 to 40 °C (direct sunlight)
- Standby power
- 0.5 W (power off)
- Dimensions
- 1202.8 x 2003 x 163.88 mm (W x H x D)
- Weight
- 140 kg
- Bezel size
- 52 mm (top/bottom), 66.4 mm (left/right)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC, VCCI, ErP
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can the LG 86XF3SK operate in direct sunlight?
Yes. The display achieves 3,300 nits typical brightness, allowing clear content visibility even under direct sunlight. It operates effectively in temperatures up to 50 °C without direct sun and up to 40 °C when exposed to direct sun.
Does this model support landscape orientation?
No. The LG 86XF3SK is designed for portrait orientation only. Landscape mode is not supported by the hardware or webOS 6.0 software configuration.
Which countries receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations via established logistics partners. Delivery times depend on the country and order size, confirmed in your quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available from the Smart-Boards team to assist with configuration and initial deployment.
What is included in the box?
The package contains the display, remote controller with batteries, HDMI and USB cables, LAN extension cables, SMA cables, IR cable, power cables, cord grips, screws, corner brackets, and the user manual for complete setup.
What connectivity ports are available?
The unit features one HDMI In, one DP In, Audio In, RS232C In/Out, RJ45 LAN In/Out, IR In/Out, one USB 2.0, and External Speaker Out for flexible integration with control systems and audio equipment.
Can Smart-Boards arrange a demonstration?
Yes. We offer live or virtual demonstrations before purchase to verify suitability for your environment. Contact our team to schedule a viewing, as pricing is quote-only and tailored to your specific regional requirements.
