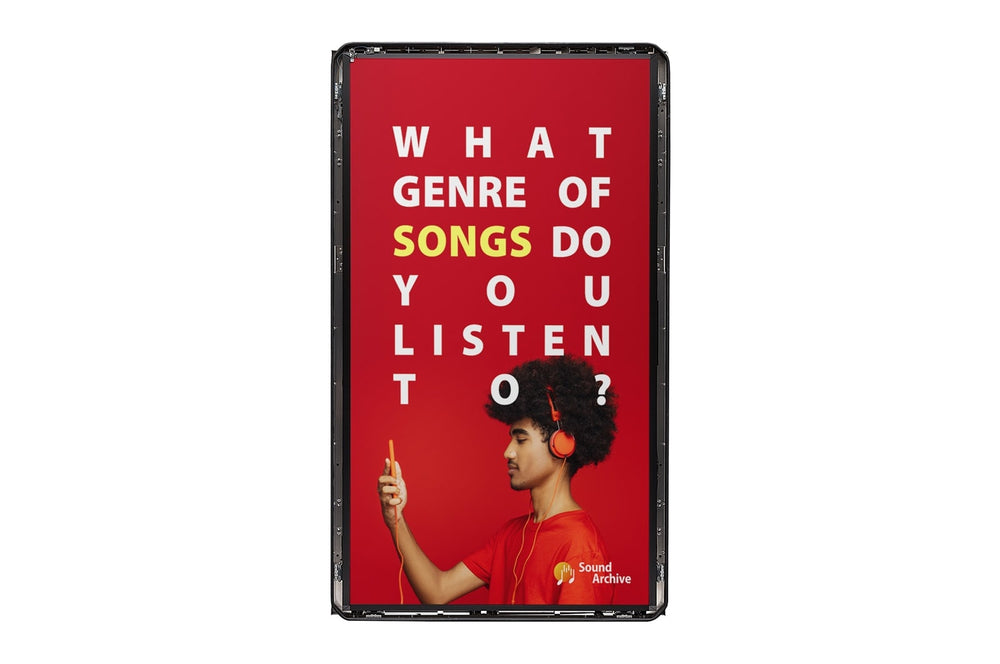

The LG 86XF3CK is an open-frame digital signage display designed for high-brightness environments. Featuring 3,300 nits of luminance and 4K UHD resolution, it ensures visibility in direct sunlight. Smart-Boards supplies this model across the GCC and Africa for enterprise digital signage needs.
This 86-inch open-frame unit utilizes IPS panel technology to deliver 3,300 nits of typical brightness, enabling clear content visibility even under direct sunlight. The 120 Hz refresh rate and 10-bit color depth support smooth motion and accurate visuals, while the 24/7 duty cycle rating ensures reliability for continuous operation in demanding public or commercial settings.
Running on webOS 6.0, the display integrates with SuperSign CMS for centralized content management. The open-frame design allows for flexible mounting in custom enclosures or kiosks. With ports including HDMI, DisplayPort, and RS232C, it offers robust connectivity for diverse integration scenarios across business and educational sites in the region.
Key features
- High Brightness - Delivers 3,300 nits typical brightness for clear visibility in direct sunlight and high ambient light conditions.
- 4K UHD Resolution - Provides a 3840 x 2160 pixel count on an 86-inch IPS panel for sharp, detailed image reproduction.
- Portrait Orientation - Supports vertical mounting for space-efficient digital signage solutions, with landscape orientation not supported.
- webOS 6.0 - Built-in operating system enables standalone content playback and integration with SuperSign CMS for management.
- Durable Construction - Rated for 24/7 operation with an operating temperature range of 0 to 40 °C when solar radiation is present.
Ideal for: Suitable for retail kiosks, transport hubs, and corporate lobbies requiring high-brightness displays, suitable for buyers across the GCC and Africa seeking durable open-frame signage solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86XF3CK
- Product type
- Open-Frame Digital Signage Display
- Key features
- 4K UHD, 3,300-nit brightness, 120 Hz refresh, direct sunlight operation, portrait orientation, 24/7 operation, webOS 6.0, SuperSign CMS
- Duty cycle
- 24/7
- Orientation
- Portrait (landscape not supported)
Display
- Colour
- Black
- Brightness
- 3300 cd/m²
- Colour depth
- 10-bit, 1.07 billion colours
- Refresh rate
- 120 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- 3% haze surface treatment
- Viewing angle
- 178º x 178º
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 68%
- Contrast ratio
- 1,100:1 (typical)
- Panel technology
- IPS
- Response time
- 8 ms
System
- Operating system
- webOS 6
- Storage
- 8 GB
Connectivity
- Ports
- HDMI In × 1, DP In × 1, RS232C In × 2, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 × 2, RS232C Out, RJ45 (LAN) Out, IR Out (shared with RS232C)
Physical & warranty
- In the box
- Remote controller (2 batteries), HDMI cable, USB cables (2), LAN extension cables (2), SMA cables (2), IR cable, power cables, cord grips, screws, corner brackets, manual
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C (with solar), 0 to 50 °C (without solar)
- Power consumption
- 1,450 W typical (full white, front), 1,950 W maximum
- Standby power
- 0.5 W (power off)
- Dimensions
- 1202.8 x 2003 x 229.18 mm (W x H x D)
- Weight
- 201.8 kg
- Bezel size
- 66.4 mm (left/right), 52 mm (top/bottom)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC, VCCI
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the typical brightness of the LG 86XF3CK?
The typical brightness is 3,300 nits. This high luminance ensures the screen remains readable even in environments with direct sunlight exposure.
Can this display be mounted in portrait orientation?
Yes, the LG 86XF3CK supports portrait orientation. However, it does not support landscape orientation, so vertical mounting is required for standard use.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries and African nations through established logistics partners. Delivery costs are minimized, and lead times are confirmed on the quotation.
Is on-site installation available outside the UAE?
No, on-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What operating system does the display use?
It runs webOS 6.0, which allows for standalone media playback and connectivity with SuperSign CMS for centralized content management across multiple displays.
Does the unit support 24/7 continuous operation?
Yes, the LG 86XF3CK is rated for 24/7 duty cycle operation. It maintains performance within an operating temperature range of 0 to 40 °C with solar exposure.
What is the screen size and resolution?
The display features an 86-inch screen size with a 3840 x 2160 (4K UHD) resolution. The aspect ratio is 16:9, providing a wide viewing area for digital signage.
