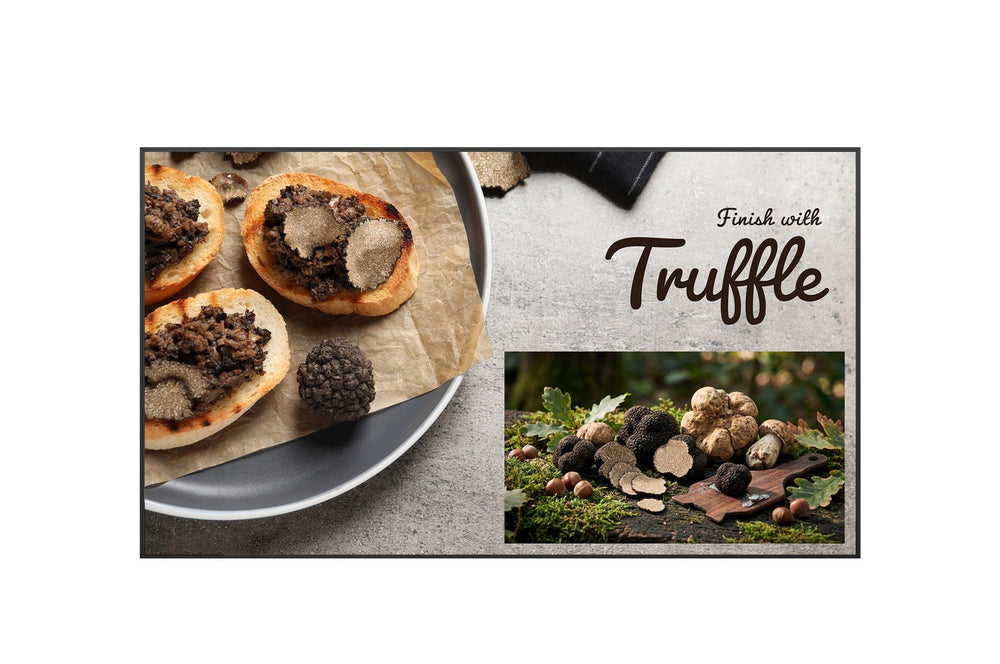

The LG 86UP5R-E is an 86-inch 4K UHD digital signage display designed for 24/7 commercial operation, featuring 500-nit brightness and built-in Wi-Fi and Bluetooth connectivity. Smart-Boards supplies this unit across the GCC and Africa, offering delivery and installation services within the UAE.
This 86-inch ADS panel delivers 3840 x 2160 resolution with a 120 Hz refresh rate and 1,200:1 contrast ratio, ensuring clear visuals in bright environments. The 500-nit brightness and 178° viewing angles support effective information sharing in lobbies, retail spaces, and corporate corridors throughout the GCC and Africa. Built-in webOS 8.0 enables content management via SuperSign CMS, while the 32 GB storage supports local media playback without external players.
Constructed for continuous duty cycles, the display operates reliably within 0 to 40 °C temperatures and features IP5X dust resistance for durability. Connectivity includes three HDMI inputs, DisplayPort, RS232C, and RJ45 LAN for network control, supporting Crestron Connected integration. Smart-Boards provides quotation-based pricing for bulk orders, with delivery logistics to GCC and African countries managed through established partners to ensure cost-effective supply.
Key features
- 4K UHD Panel - 86-inch ADS screen with 3840 x 2160 resolution, 500 nits brightness, and 120 Hz refresh rate for sharp, flicker-free signage.
- Commercial webOS - Runs webOS 8.0 with 32 GB storage, supporting SuperSign CMS, PIP, 4-way PBP, and tile mode for complex layouts.
- Network Control - Features RJ45 LAN, RS232C In/Out, and Crestron Connected compatibility for remote monitoring and system integration.
- Built-in Connectivity - Includes built-in Wi-Fi and Bluetooth for wireless content updates and peripheral pairing without additional adapters.
- 24/7 Durability - Designed for continuous operation with IP5X dust resistance and a duty cycle rating for reliable commercial use.
- Mounting Options - Supports VESA 600 x 400 mm mounting for flexible installation on walls or stands in various commercial settings.
Ideal for: Corporate lobbies, retail environments, educational institutions, and hospitality venues across the GCC and Africa requiring reliable, high-brightness digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86UP5R-E
- Product type
- Digital Signage Display
- Key features
- webOS 8.0, 120 Hz, PIP and 4-way PBP, Tile mode, SuperSign CMS, Cloud, SNMP, Crestron Connected
- IP rating
- IP5X
- Orientation
- Portrait / Landscape
Display
- Brightness
- 500 cd/m²
- Colour depth
- 1.07 billion colors
- Refresh rate
- 120 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- BT.709 95%
- Contrast ratio
- 1,200:1
- Panel technology
- ADS
- Response time
- 8 ms
System
- Operating system
- webOS 8
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Built-in
- Wi-Fi
- Built-in
- Ports
- HDMI In × 3, DisplayPort In, RS232C In/Out, RJ45 LAN In, IR In, USB 3.0 × 1, USB 2.0 × 1, Audio Out
Camera & audio
- Speaker output
- 10 W x 2
Physical & warranty
- In the box
- Remote controller (2 batteries), power cord, quick start guide, regulation book, phone to RS232C gender, cable holders
- Operating humidity
- 10% to 80%
- Operating temperature
- 0 to 40 °C
- Power consumption
- 144 W (Smart Energy Saving, 70%)
- Standby power
- 0.5 W
- Dimensions
- 1928.8 x 1099.8 x 29.7 mm
- Weight
- 53 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class B, CE, KC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the LG 86UP5R-E support 24/7 operation?
Yes, the display is rated for 24/7 duty cycle operation, making it suitable for continuous digital signage applications in commercial environments.
Which countries receive delivery?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners. Delivery times are confirmed on the quotation.
Is installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
What operating system does it use?
The display runs webOS 8.0, enabling content management via SuperSign CMS, cloud features, and SNMP for network monitoring and control.
Does it have built-in wireless connectivity?
Yes, the LG 86UP5R-E includes built-in Wi-Fi and Bluetooth for wireless content updates and peripheral pairing without extra hardware.
How do I control the display remotely?
Remote control is possible via RS232C, RJ45 LAN, or Crestron Connected integration, allowing for centralized management of multiple units.
What ports are available?
Inputs include three HDMI, DisplayPort, RS232C, RJ45 LAN, and IR. USB ports include one 3.0 and one 2.0, plus an Audio Out.
