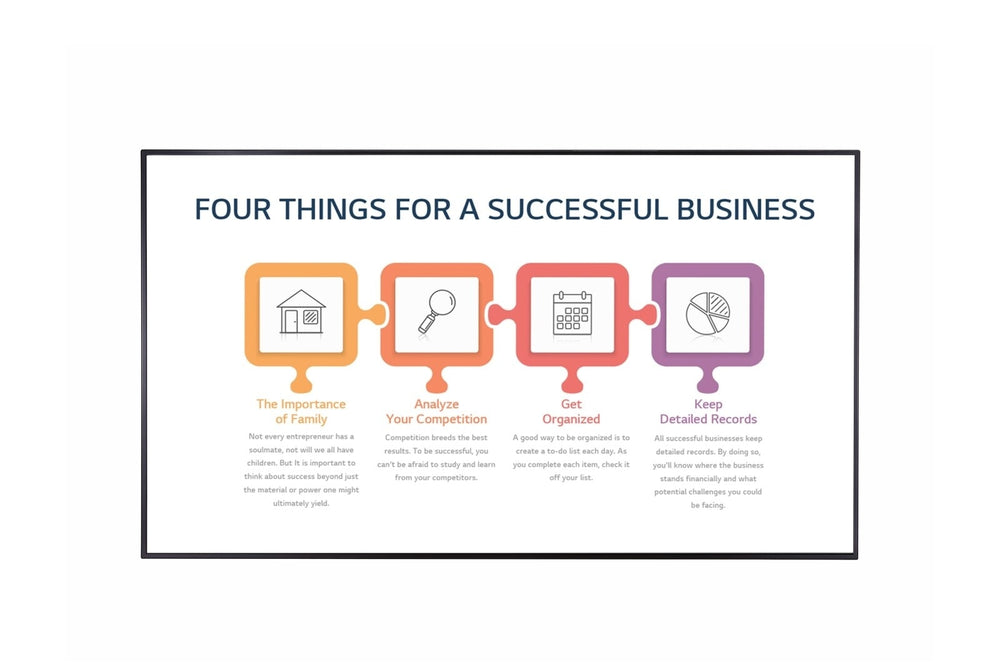

The LG 86UM3DG-H is an 86-inch UHD large-screen digital signage display designed for commercial environments. It features a 3840 x 2160 resolution, 350 nits brightness, and a 14.3 mm even bezel for multi-panel installations. Smart-Boards, an authorised LG reseller, provides quotation-based supply across the GCC and Africa.
This 86-inch IPS panel delivers 4K UHD clarity with 1.07 billion colors and a 1,100:1 contrast ratio. The 14.3 mm even bezel supports portrait or landscape orientation for flexible mounting. With 350 nits brightness and a 24/7 duty cycle, it ensures reliable performance in public spaces. The display includes SuperSign CMS and ConnectedCare for remote management.
Smart-Boards is an authorised reseller supplying this model to schools, ministries, and corporations across the GCC and Africa. As a discontinued product, availability is confirmed on request, with current successor options available. The site offers live demonstrations, quote-only pricing, and manufacturer warranty support. Delivery times vary by country and order size.
Key features
- UHD Resolution - The 86-inch screen provides 3840 x 2160 pixel clarity with 10-bit color depth for detailed content.
- Slim Bezel Design - A 14.3 mm even bezel enables seamless multi-panel video walls for large-scale digital signage.
- Commercial Durability - Designed for 24/7 operation with 350 nits brightness and an operating temperature range of 0 to 40 °C.
- Flexible Orientation - Supports both portrait and landscape mounting with VESA 600 x 400 mm compatibility for versatile installation.
- Remote Management - Integrates with SuperSign CMS and LG ConnectedCare for efficient content updates and device monitoring.
Ideal for corporate lobbies, educational institutions, and government facilities requiring large-format displays across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86UM3DG-H
- Product type
- Digital Signage Display
- Key features
- IPS panel, 350 nits, 1,100:1 contrast, portrait and landscape, SuperSign CMS, SuperSign Control+, LG ConnectedCare
- Orientation
- Portrait / Landscape
Display
- Brightness
- 350 cd/m²
- Colour depth
- 10-bit, 1.07 billion colors
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° x 178°
- Colour gamut
- BT.709 95%
- Contrast ratio
- 1,100:1
- Panel technology
- IPS
- Response time
- 8 ms
System
- Operating hours
- 24/7
Camera & audio
- Speaker output
- Built-in speaker
Physical & warranty
- In the box
- Remote controller, power cord, quick start guide, regulation book, phone to RS232C gender
- Operating humidity
- 10% to 80%
- Operating temperature
- 0 to 40 °C
- Dimensions
- 1926.2 x 1097.2 x 60.6 mm
- Weight
- 49.0 kg
- VESA mount
- 600 x 400 mm
- Bezel size
- 14.3 mm (even)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Power source
- Built-in power supply
- Certifications
- CB / NRTL, FCC Class A, CE, KC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product available?
The LG 86UM3DG-H is discontinued. Smart-Boards can confirm current stock availability or recommend the latest successor model upon request.
Which countries receive delivery?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at competitive rates.
Is on-site installation included?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup with optional remote guidance.
What is the bezel width?
The bezel size is 14.3 mm and is even on all sides, ensuring a consistent appearance when used in multi-panel video wall configurations.
Does it support vertical mounting?
Yes, the display supports both portrait and landscape orientations, allowing flexible installation depending on the venue's layout requirements.
What is the power requirement?
The unit operates on 100–240 V AC, 50/60 Hz with a built-in power supply, suitable for standard commercial power infrastructure in the GCC.
Can I see a demo first?
Smart-Boards offers live or virtual demonstrations before purchase to help you evaluate the display's performance for your specific use case.
