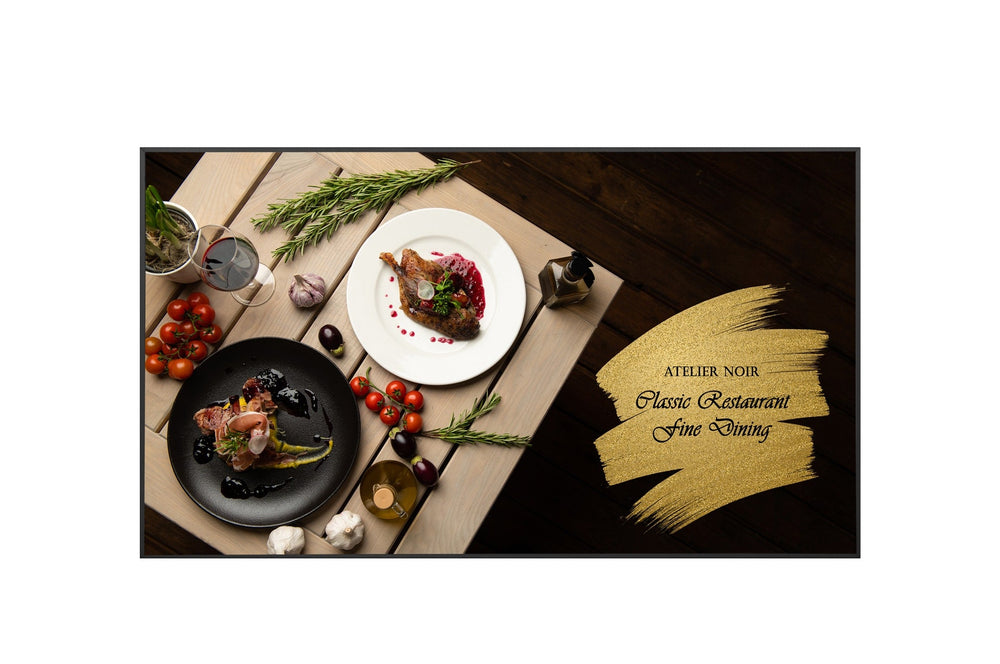

The LG 86UH5Q-GQ is an 86-inch 4K UHD digital signage display designed for continuous commercial operation. This webOS 8.0-enabled unit offers 500 nits brightness, IP5X dust protection, and multi-tile capabilities for high-visibility environments in the GCC and Africa.
This 86-inch commercial display delivers 4K UHD resolution (3840 x 2160) on an ADS panel with a 13.4 mm even bezel, ensuring sharp visuals for lobbies and retail spaces. The webOS 8.0 operating system manages content via SuperSign CMS, while Connected Care enables remote monitoring. With 16 GB of storage and support for 1.07 billion colors, it provides reliable performance for dynamic digital signage applications.
Built for durability, the 86UH5Q-GQ supports 24/7 duty cycles and carries an IP5X rating to resist dust ingress in challenging environments. It accepts 100–240 V AC input, making it suitable for diverse regional power standards. The unit includes RS232C and RJ45 LAN ports for integration into existing AV infrastructure, and its 53.0 kg weight requires standard VESA 600 x 400 mm mounting for secure installation.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with 500 nits brightness and BT.709 95% color gamut for vivid imagery.
- Commercial Durability - Engineered for 24/7 operation with an IP5X dust-resistant rating and 1,200:1 contrast ratio.
- webOS 8.0 Platform - Runs on webOS 8.0 with 16 GB storage, supporting SuperSign CMS and Connected Care for remote management.
- Flexible Connectivity - Features 3x HDMI In, 1x DisplayPort In, RJ45 LAN, and RS232C for robust system integration.
- Multi-Tile Display - Supports tile mode up to 15 x 15, PIP, and PBP (4-way) for large-scale video wall configurations.
Ideal for corporate lobbies, retail environments, and educational institutions requiring reliable 24/7 digital signage across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86UH5Q-GQ
- Product type
- Digital Signage Display
- Key features
- webOS 8.0, 24/7 operation, IP5X rating, Tile Mode up to 15 x 15, PIP and PBP (4-way), Video Tag (4), SuperSign CMS, Connected Care
- Duty cycle
- 24/7
- IP rating
- IP5X
- Orientation
- Portrait and landscape
Display
- Backlight
- Edge
- Brightness
- 500 cd/m²
- Colour depth
- 1.07 Billion colors (8-bit + FRC)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- BT.709 95% (DCI-P3 80%)
- Contrast ratio
- 1,200:1 (typical)
- Panel technology
- ADS
- Response time
- 8 ms (G to G, typical)
System
- Operating system
- webOS 8
- Storage
- 16 GB
Connectivity
- Ports
- HDMI In × 3 (4K 60 Hz), DisplayPort In × 1 (4K 60 Hz), RS232C In and Out, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 Type A × 2, Audio Out
Camera & audio
- Speaker output
- 10 W x 2 (built-in)
Physical & warranty
- In the box
- Remote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holders (6) and 7-pin cable holder
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 120 W (Smart Energy Saving, 70%)
- Dimensions
- 1928.8 x 1099.8 x 29.7 mm (without IR and handle)
- Weight
- 53.0 kg (head only)
- VESA mount
- 600 x 400 mm
- Bezel size
- 13.4 mm (even)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class B, CE, KC, Energy Star, ePEAT (US)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the LG 86UH5Q-GQ support 24/7 operation?
Yes, this display is designed for 24/7 duty cycle operation, making it suitable for continuous commercial signage applications in high-traffic areas.
Which countries in the GCC and Africa receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners at competitive costs.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available if needed.
What is the bezel size of this 86-inch display?
The LG 86UH5Q-GQ features an even bezel size of 13.4 mm, minimizing visual distraction in single-display or multi-tile configurations.
Can I control the display via network?
Yes, the unit includes an RJ45 LAN port and RS232C In/Out for network control and integration with existing AV management systems.
What operating system does this signage display use?
It runs on webOS 8.0, providing access to apps, SuperSign CMS for content management, and Connected Care for remote diagnostics and updates.
What is included in the box for setup?
The package includes a remote controller with batteries, power cord, quick setup guide, regulation book, phone to RS232C adapter, and cable holders.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
