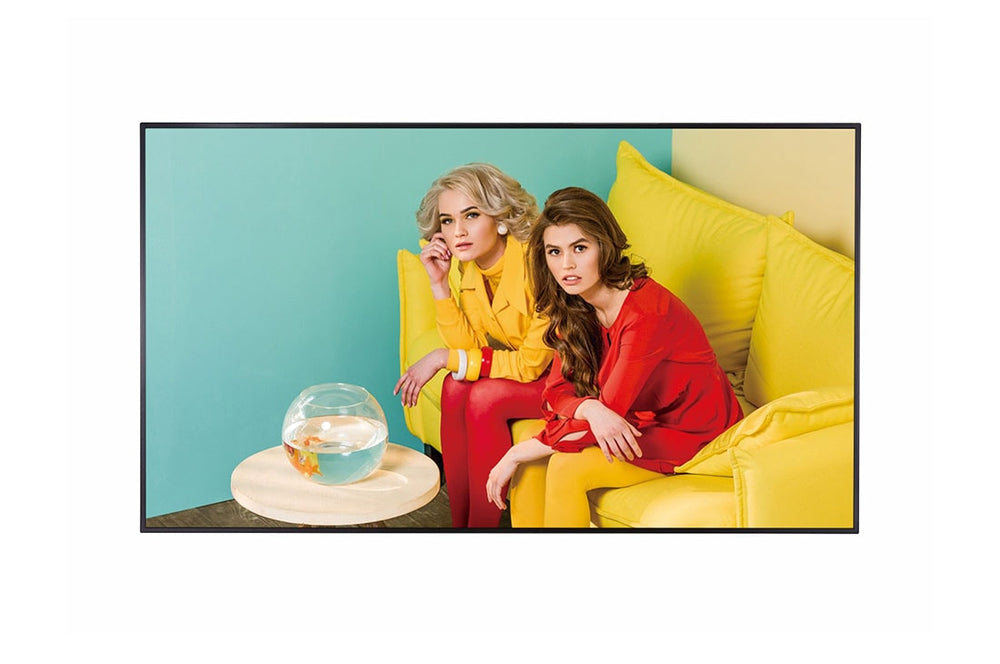

The LG 86UH5E is a discontinued 86-inch 4K UHD digital signage display designed for high-brightness commercial environments. Featuring 500 nits luminance and an off-bezel aesthetic, it supports OPS modules and RS232C/LAN control. Smart-Boards, an authorised reseller based in Dubai, supplies this model to educational, government, and corporate clients across the GCC and Africa.
This 86-inch UHD panel delivers 3840 x 2160 resolution at 500 nits, ensuring clear visibility in well-lit spaces. The 14.3 mm even bezel creates a near-frameless appearance for large-format installations. Weighing 49 kg, it requires a VESA 600 x 400 mm mount. The unit includes a DP cable, power cord, and remote controller for immediate setup. Operating temperatures range from 0 to 40 °C, suitable for standard indoor environments.
Connectivity includes RS232C and RJ45 LAN ports for centralized management via SuperSign CMS. An OPS-type slot allows for flexible media player integration. The display operates on 100–240 V AC input with 280 W maximum power consumption. Smart-Boards provides quote-only pricing for this discontinued unit, with availability confirmed per order. Delivery time depends on the destination country and order size, as detailed in the quotation process.
Key features
- UHD Resolution - The 86-inch screen provides 3840 x 2160 pixel density for sharp content rendering.
- High Brightness - 500 nits of luminance ensures legibility in ambient light without additional shielding.
- Professional Control - RS232C and RJ45 LAN ports enable networked management via SuperSign CMS.
- OPS Compatibility - The OPS-type slot allows for easy insertion and removal of computing modules.
- Included Accessories - Package contains a DP cable (1.8 m), power cord, remote controller, and quick setup guide.
Ideal for corporate lobbies, educational halls, and public venues across the GCC and Africa requiring large-format UHD displays with reliable network control.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86UH5E
- Product type
- Digital Signage Display
- Key features
- OPS-type compatible, SuperSign CMS, SuperSign Control and Control+, RS232C and RJ45 LAN control, IR input, off-bezel design
Display
- Brightness
- 500 cd/m²
- Resolution
- 4K UHD
- Screen size
- 86"
System
- OPS slot
- OPS-type compatible
Connectivity
- Ports
- RS232C In and Out (4-pin phone jack), RJ45 (LAN) In, IR In
Physical & warranty
- In the box
- Remote controller, power cord, quick setup guide, DP cable (1.8 m), regulation book, phone to RS232C gender adapter
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 215 W (typical), 280 W (max), 151 W (Smart Energy Saving)
- Dimensions
- 1926.2 x 1097.2 x 60.6 mm (without handle and logo)
- Weight
- 49 kg (head only)
- VESA mount
- 600 x 400 mm
- Bezel size
- 14.3 mm (even), off-bezel
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC, ErP (EU)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 86UH5E still in production?
No, the LG 86UH5E is a discontinued model. Smart-Boards can confirm current stock availability for remaining units or recommend the current successor model depending on your project timeline and requirements.
Which countries receive delivery for this product?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners. Delivery costs are minimised, and specific transit times are confirmed on your quotation.
Does Smart-Boards install this display outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed to assist your technical team with the physical mounting and cabling.
What control protocols are supported?
The display supports RS232C serial control and RJ45 LAN control. It is compatible with LG's SuperSign CMS for content management and SuperSign Control for power scheduling and status monitoring.
Does the unit include a media player?
The display does not include a built-in media player, but it features an OPS-type compatible slot. You can install a compatible OPS module to run content independently of an external device.
What is the power consumption of the 86UH5E?
The typical power consumption is 215 W, with a maximum of 280 W. It also features Smart Energy Saving mode, which reduces consumption to 151 W when the screen is off or in standby.
What certifications does this model hold?
The LG 86UH5E holds CB, NRTL, FCC Class A, CE, KC, and ErP (EU) certifications. These ensure compliance with international safety and electromagnetic standards for commercial deployment.
