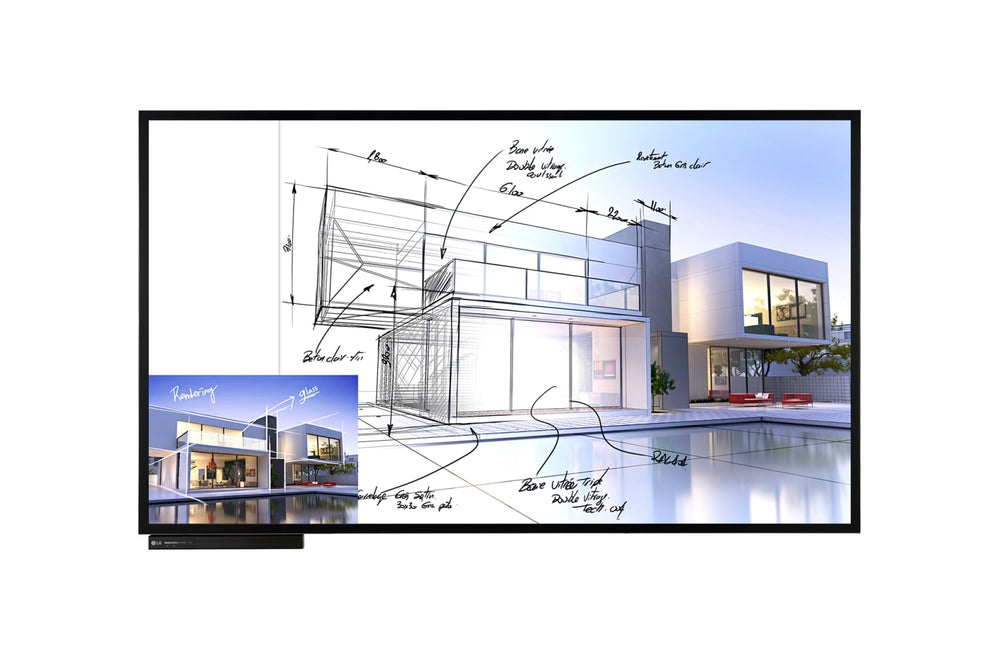

The LG 86TN3F is an 86-inch 4K UHD interactive flat panel designed for collaborative environments. Featuring in-cell touch technology and 10 W built-in speakers, it supports multi-user input for dynamic presentations. Smart-Boards supplies this model to educational and corporate clients across the GCC and Africa.
This 85.6-inch display delivers 3840 x 2160 resolution with 350 nits brightness, ensuring clear visibility in well-lit GCC and African classrooms. The IPS panel offers 178-degree viewing angles, allowing groups to collaborate comfortably from the side. Its 1.5 mm touch accuracy and 20-point finger input enable precise annotation for up to 20 users simultaneously on Windows systems.
Connectivity includes three HDMI inputs, one DisplayPort, and an optional OPS slot for flexible computer integration. The unit weighs 66.7 kg and mounts to VESA 600 x 400 mm standards. Smart-Boards provides live demonstrations and quote-only pricing, with delivery available to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and selected African nations. Installation is limited to the UAE, with remote guidance for other regions.
Key features
- 4K UHD Display - The 85.6-inch IPS panel provides 3840 x 2160 resolution with 350 nits brightness for sharp content visibility.
- In-Cell Touch - Supports 20-point finger input on Windows and 2-point active pen writing with 1.5 mm accuracy for precise interaction.
- Audio Output - Built-in stereo speakers deliver 10 W per channel, reducing the need for external sound systems in small to medium rooms.
- Connectivity Options - Includes three HDMI In, one DisplayPort In, DVI-D In, and an optional KT-OPSF kit for OPS module compatibility.
- Included Accessories - The box contains two touch pens, a 3 m HDMI cable, a remote controller, power cord, and a USB Type-C cable.
Ideal for lecture halls, boardrooms, and training centers requiring large-format collaboration, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86TN3F
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, in-cell touch, 20-point finger input on Windows, 2-point active pen, 1.5 mm accuracy, 10 W speakers per channel, OPS-compatible, IDB App
- Compatibility
- Windows 7 Professional, Windows 8.1, Windows 10
- Duty cycle
- 16 hours a day
- Orientation
- Landscape
Display
- Colour
- Black
- Brightness
- 350 cd/m²
- Resolution
- 4K UHD
- Screen size
- 85.6"
- Viewing angle
- 178º x 178º
- Aspect ratio
- 16:9
- Contrast ratio
- 1,000:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- 1.5 mm
- Touch points
- 20-point finger (Windows), 10-point finger (webOS), 2-point active pen
- Touch response time
- 70 ms (Windows 10 PC)
- Touch technology
- In-cell
System
- OPS slot
- OPS-compatible (optional KT-OPSF kit)
Connectivity
- USB ports
- USB 2.0 × 2, USB Type-C (USB 2.0) × 1, Touch Out USB 2.0 Type-B × 2
- Ports
- HDMI In × 3, DisplayPort In × 1, DVI-D In × 1, RS232C In/Out
Camera & audio
- Speaker output
- 10 W per channel (built-in)
Physical & warranty
- In the box
- Remote controller, power cord, quick start guide, HDMI cable (3 m), regulation book, RS232C gender adapter, touch pens (2), pen tips (12), tip remover (2), USB Type-C cable, ferrite core filter
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 360 W typical, 420 W maximum
- Dimensions
- 1952.6 x 1164.1 x 86.4 mm (W x H x D)
- Weight
- 66.7 kg
- VESA mount
- 600 x 400 mm
- Bezel size
- 28.8 mm (set, all sides)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 86TN3F suitable for large classrooms?
Yes. The 86-inch 4K UHD screen and 350 nits brightness ensure visibility in large spaces. The 178-degree viewing angle allows students from side seats to see clearly, while 20-point touch enables multiple students to interact simultaneously.
Which countries receive delivery?
Delivery is available to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African countries. Logistics partners handle shipping at the lowest possible cost, with delivery times confirmed on your specific quotation based on order size and destination.
Does the panel support Windows 10?
Yes. The device is compatible with Windows 7 Professional, Windows 8.1, and Windows 10. It supports 20-point finger input and 2-point active pen writing when connected to a compatible PC via HDMI or the optional OPS slot.
Is installation included?
On-site installation is available only within the UAE. For other GCC and African countries, the unit is delivered ready for local setup. Smart-Boards provides remote guidance to assist your technical team with mounting and initial configuration.
What is the weight and mount size?
The panel weighs 66.7 kg and measures 1952.6 x 1164.1 x 86.4 mm. It uses a standard VESA 600 x 400 mm mount pattern, allowing compatibility with most heavy-duty wall brackets or mobile stands available locally.
Can I add a computer module?
Yes. The panel is OPS-compatible. You can purchase the optional KT-OPSF kit to install an OPS PC module directly into the back of the display, simplifying cabling and providing a built-in computing solution for presentations.
What accessories are in the box?
The package includes a remote controller, power cord, quick start guide, 3 m HDMI cable, RS232C gender adapter, two touch pens, twelve pen tips, a tip remover, USB Type-C cable, and a ferrite core filter for signal stability.
