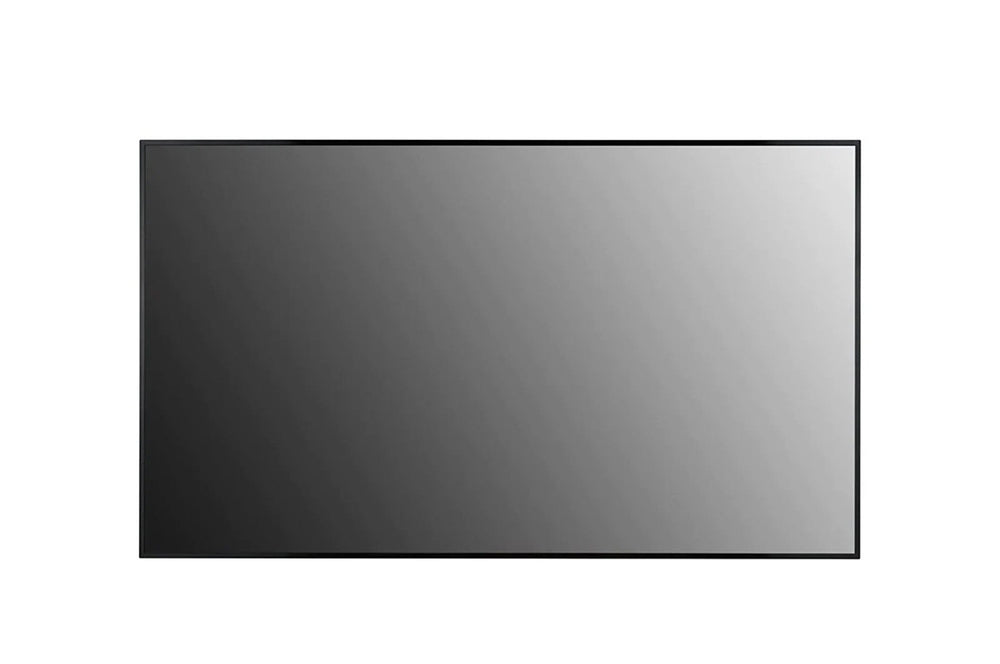

The LG 75XF3ES is a discontinued 75-inch high-brightness open frame digital signage display designed for demanding commercial environments. Featuring 3000 nits typical brightness and 4K UHD resolution, it supports reliable content management via SuperSign CMS. Smart-Boards, an authorised reseller, supplies this model across the GCC and Africa with tailored logistics and support options.
This open frame signage display delivers 4K UHD clarity with 3000 nits of typical brightness, ensuring visibility in well-lit spaces. The 11.8 mm even bezel allows for clean multi-panel installations, while the integrated power supply simplifies integration. Control is managed via RS-232C or RJ45 connections, supporting SuperSign CMS for centralized content updates. Designed for continuous operation, it operates within a 0 to 50 °C temperature range.
As a discontinued model, availability varies by region and stock status. Smart-Boards confirms current supply levels or recommends the latest successor upon inquiry. We provide verified documentation and assist with multi-site rollouts across the GCC and Africa. Delivery costs are optimized through established logistics partners, with installation services available within the UAE and remote guidance for other countries.
Key features
- High Brightness Panel - Provides 3000 nits typical brightness for clear visibility in ambient light.
- 4K UHD Resolution - Delivers 3840 x 2160 pixel detail for sharp text and graphics.
- Open Frame Design - Allows flexible integration into custom kiosks or digital signage frames.
- Centralized Control - Supports RS-232C and RJ45 connections for SuperSign CMS monitoring.
- Compact Dimensions - Measures 1675.2 x 953.6 x 128.9 mm with a 37.5 kg head weight.
Ideal for: Suitable for corporate lobbies, retail environments, and transport hubs requiring high-brightness displays, ideal for buyers across the GCC and Africa managing multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 75XF3ES
- Product type
- High Brightness Open Frame Signage Display
- Key features
- 75-inch 4K UHD, 3000 nits typical brightness, open frame, 11.8 mm even bezel, RS-232C and RJ45 control, built-in power, SuperSign CMS
- Compatibility
- SuperSign CMS (content management), SuperSign Control+ / Control (monitoring)
- Controls
- RS-232C In/Out, RJ45 In, IR
- Form factor
- Open frame
- Safety rating
- IEC 60950-1 / EN 60950-1 / UL 60950-1
Display
- Brightness
- 3000 cd/m²
- Resolution
- 4K UHD
- Screen size
- 75"
Connectivity
- Ethernet (RJ45)
- RJ45 In
- Serial port
- RS-232C In / Out
Physical & warranty
- In the box
- Remote control, power cord, HDMI cable, IR extension kit, manual
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 50 °C
- Dimensions
- 1675.2 x 953.6 x 128.9 mm
- Weight
- 37.5 kg (head)
- Shipping dimensions
- 1816 x 1106 x 285 mm
- Shipping weight
- 47.0 kg
- Bezel size
- 11.8 mm (even)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Power source
- Built-in power supply
- Certifications
- FCC Class A, CE, KC (EMC)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 75XF3ES still in production?
No, the LG 75XF3ES is a discontinued model. Smart-Boards can confirm current stock availability or recommend the latest successor series for your specific requirements.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners, ensuring lowest possible delivery costs.
Does Smart-Boards offer installation services?
On-site installation is available within the UAE only. For other countries, we deliver the unit ready for local setup and provide remote guidance if needed.
What is the brightness level of this display?
The LG 75XF3ES offers 3000 nits typical brightness, making it suitable for environments with high ambient light levels such as retail or outdoor-facing interiors.
How is content managed on this display?
It is compatible with SuperSign CMS for content management and SuperSign Control+ or Control for monitoring, accessible via RJ45 Ethernet or RS-232C ports.
What accessories are included in the box?
The package includes a remote control, power cord, HDMI cable, IR extension kit, and user manual. Additional mounting hardware may be required for custom integration.
What is the operating temperature range?
The display is rated for an operating temperature of 0 to 50 °C and humidity of 10% to 80% RH, suitable for standard indoor commercial environments.
