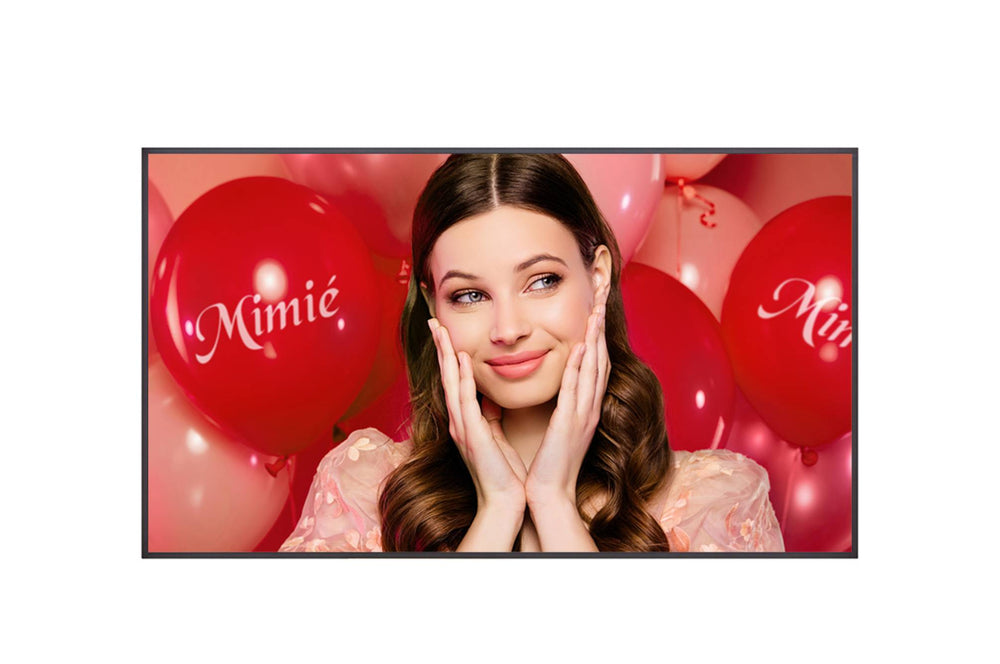

The LG 55UH7Q-E is a 55-inch UHD signage display designed for continuous commercial operation. Featuring 4K resolution, 700-nit brightness, and webOS 8.0, it supports PIP/PBP and CMS integration. Smart-Boards supplies this model for multi-site deployments across the GCC and Africa.
This 55-inch digital signage display delivers 3840 x 2160 resolution on an ADS panel with a 16:9 aspect ratio. The typical brightness of 700 nits ensures clear visibility, while the 11.4 mm even bezel allows for tight video wall configurations. It supports portrait and landscape orientations with a VESA 300 x 300 mm mount pattern.
Powered by webOS 8.0, the unit includes 16 GB of storage and built-in Wi-Fi and Bluetooth for flexible connectivity. Connectivity options include three HDMI inputs, one DisplayPort, RJ45 LAN, and RS232C for control. The display handles 24/7 duty cycles, operating within 0 to 40 °C and 10% to 80% RH humidity.
Key features
- 4K UHD Clarity - The ADS panel provides 3840 x 2160 resolution with 95% BT.709 color gamut and 1.07 billion colors for accurate content reproduction.
- Commercial Durability - Engineered for 24/7 operation, the display maintains performance in temperatures from 0 to 40 °C and features an IP5X dust protection rating.
- Flexible Connectivity - Inputs include three HDMI, one DisplayPort, RJ45 LAN, RS232C, and two USB 2.0 ports, supporting PIP and PBP split-screen modes.
- Integrated Operating System - webOS 8.0 runs on 16 GB of internal storage, enabling built-in applications and compatibility with SuperSign CMS for centralized content management.
- Audio and Control - Built-in 10 W x 2 speakers provide audio output, while IR and RS232C interfaces allow for integration into existing control systems.
Ideal for: Suitable for corporate lobbies, retail environments, and educational institutions requiring reliable 24/7 display solutions across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Tilt range
- Up to 15° face down (at 40 °C)
- Model
- 55UH7Q-E
- Product type
- Digital Signage Display
- Key features
- 4K UHD ADS panel, 700-nit typical brightness, 1,200:1 contrast, webOS 8.0, 16 GB storage, Wi-Fi and Bluetooth, PIP and PBP, SuperSign CMS and Control+
- Duty cycle
- 24/7
- IP rating
- IP5X
- Orientation
- Portrait and landscape
Display
- Backlight
- Edge-lit
- Brightness
- 700 cd/m²
- Colour depth
- 1.07 billion colors
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- BT.709 95%
- Contrast ratio
- 1,200:1 (typical)
- Panel technology
- ADS
- Response time
- 8 ms
System
- Operating system
- webOS 8
- Storage
- 16 GB
Connectivity
- Bluetooth
- Built-in
- Wi-Fi
- Built-in
- Ports
- HDMI In × 3, DisplayPort In × 1, RS232C In/Out, RJ45 LAN In × 1, IR In, USB 2.0 Type A × 2, Audio Out
Camera & audio
- Speaker output
- 10 W × 2
Physical & warranty
- In the box
- Remote controller, power cord, quick start guide, regulation book, RS232C gender adapter
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 71 W (Smart Energy Saving 70%)
- Dimensions
- 1240.1 x 711.9 x 29.7 mm
- Weight
- 14.3 kg (display head)
- VESA mount
- 300 x 300 mm
- Bezel size
- 11.4 mm even bezel
- Input voltage
- 100–240 V AC, 50/60 Hz
- Power source
- Built-in power supply
- Certifications
- CB / NRTL, FCC Class B, CE, KC, ePEAT (US)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this display suitable for video walls?
Yes, the LG 55UH7Q-E features an 11.4 mm even bezel designed for seamless video wall configurations. The 300 x 300 mm VESA mount pattern allows for precise alignment in multi-display setups.
Which countries can receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations via established logistics partners. Delivery times depend on the specific country and order size, confirmed on the quotation.
Does the company provide installation in the UAE?
Yes, on-site installation is available within the UAE. For other regions, units are delivered ready for local setup, with remote guidance provided if needed to assist with configuration.
What are the operating temperature limits?
The display operates within a temperature range of 0 to 40 °C and humidity levels from 10% to 80% RH. It is designed for 24/7 continuous operation in commercial environments.
Can I control the display centrally?
Yes, the unit supports SuperSign CMS and Control+ for centralized content management. It also includes RJ45 LAN and RS232C ports for network and serial control integration.
Does it support split-screen viewing?
Yes, the LG 55UH7Q-E supports Picture-in-Picture (PIP) and Picture-by-Picture (PBP) modes. This allows multiple video sources to be displayed simultaneously on the single 55-inch screen.
What connectivity ports are included?
The display features three HDMI inputs, one DisplayPort, one RJ45 LAN, RS232C In/Out, IR In, two USB 2.0 Type A ports, and an Audio Out jack for external speakers.
