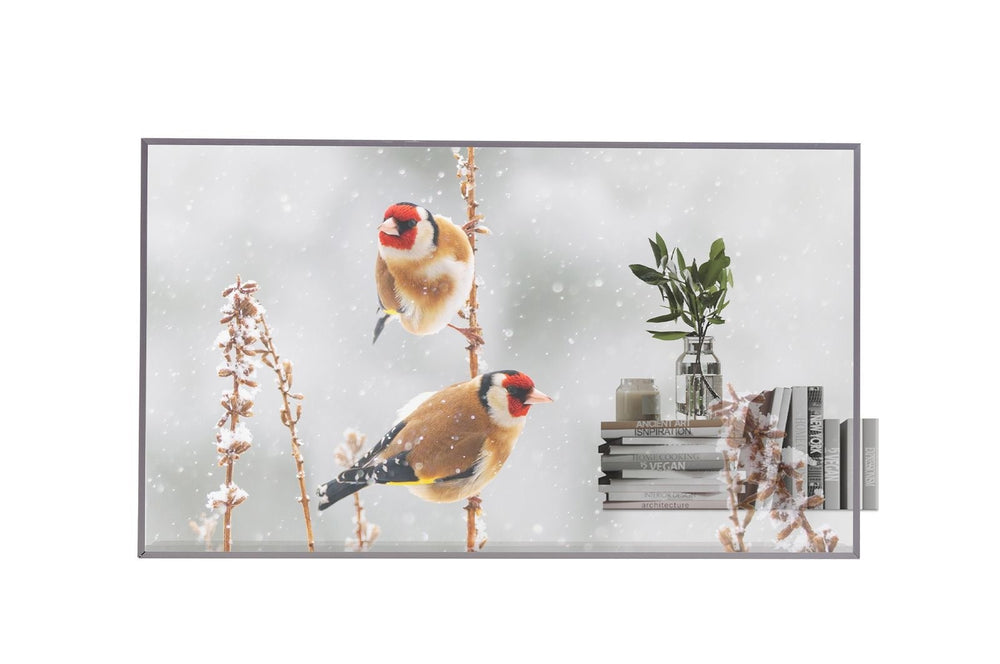

The LG 55EW5P-M is a 55-inch transparent OLED digital signage display designed for high-impact visual communication. It features 43% transparency, Full HD resolution, and webOS 7.5 for local scheduling. Smart-Boards supplies this model across the GCC and Africa with quotation-based pricing.
This transparent OLED panel blends digital content with physical environments, allowing viewers to see through the screen while viewing vibrant graphics. The 55-inch display offers a 1920 x 1080 resolution with DCI 90% color gamut, ensuring accurate imagery. With 43% transparency and a contrast ratio of 200,000:1, it maintains clarity in well-lit commercial spaces. The unit weighs 14.1 kg for the head and supports both portrait and landscape orientations.
Managed via webOS 7.5, the signage box includes 16 GB eMMC storage and supports SuperSign CMS for remote content updates. Connectivity options include HDMI In, DP In/Out, and RJ45 LAN for network control. The display operates on 100–240 V AC power and supports daisy-chaining for video wall configurations. It is suitable for retail, corporate, and educational environments requiring interactive transparency.
Key features
- Transparent OLED Technology - Features 43% transparency for blending digital content with physical backgrounds.
- Full HD Resolution - Delivers 1920 x 1080 pixels with 10-bit color depth for 1.07 billion colours.
- webOS 7.5 Platform - Built-in operating system with 16 GB storage for local content scheduling and apps.
- Video Wall Capabilities - Supports daisy-chaining and tile mode for seamless multi-panel installations.
- Comprehensive Connectivity - Includes HDMI In, DP In/Out, RJ45 LAN, and USB ports for versatile integration.
Ideal for: Retail storefronts, corporate lobbies, and educational spaces across the GCC and Africa requiring high-visibility transparent displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55EW5P-M
- Product type
- Transparent OLED Signage Display
- Key features
- Transparency 43%, Portrait/landscape, Daisy chain, Video wall tile mode, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Display
- Brightness
- 200 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 120 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- DCI 90%, BT.709 110%
- Contrast ratio
- 200,000:1
- Panel technology
- OLED
- Response time
- 0.1 ms (G to G), 8 ms (MPRT)
System
- Operating system
- webOS 7
- Storage
- 16 GB
- Operating hours
- 18/7 (moving content only)
Connectivity
- Ports
- HDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, IR In/Out, Audio Out × 1
Physical & warranty
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 0.5 W (standby)
- Dimensions
- 1237.6 x 717.9 x 86.5 mm (head)
- Weight
- 14.1 kg (head), 2.6 kg (signage box)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the transparency level of the LG 55EW5P-M?
The display offers 43% transparency, allowing clear visibility of the background while showing digital content.
Which countries in the GCC and Africa receive this product?
Smart-Boards ships to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African countries via established logistics partners at low cost.
Is on-site installation available outside the UAE?
On-site installation is only available within the UAE. Other countries receive the unit for local setup with remote guidance.
Does this model support remote content management?
Yes, it supports SuperSign CMS and local scheduling via webOS 7.5 for easy content updates across multiple units.
What are the operating temperature requirements?
The display operates within 0 to 40 °C and 10% to 80% RH humidity, suitable for standard indoor commercial environments.
Can the display be used in a video wall configuration?
Yes, the 55EW5P-M supports daisy-chaining and video wall tile mode for multi-panel setups.
What ports are available for connectivity?
It includes one HDMI In, one DP In, one DP Out, RJ45 LAN, two USB 2.0, and RS232C ports.
