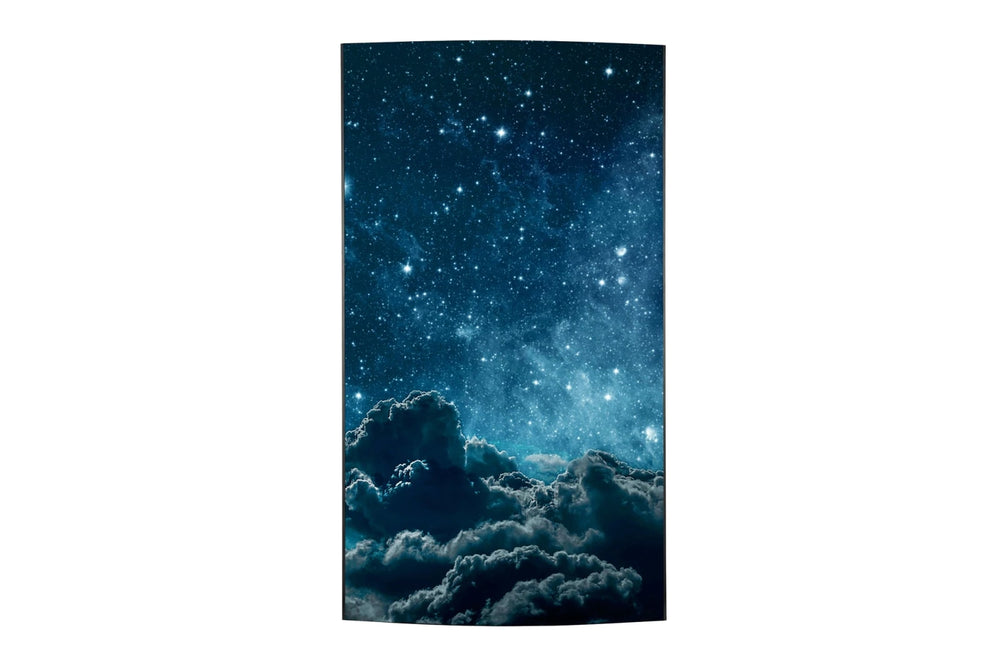

The LG 55EF5F-P is a 55-inch flexible curved open-frame OLED digital signage display designed for high-impact visual communication. Featuring a 0.6 mm ultra-narrow bezel and 400 nits typical brightness, it supports landscape or portrait orientation for seamless tiling in commercial environments across the GCC and Africa.
This open-frame panel utilises OLED technology to deliver a 150,000:1 contrast ratio and 178° viewing angles, ensuring consistent image quality from multiple perspectives. With a typical brightness of 400 nits at 25% APL, it maintains visibility in well-lit interiors. The display supports a duty cycle of 18 hours per day for moving video content, operating reliably between 0 and 40 °C. Its flexible design allows for curved installations, while the head weighs 7.8 kg for manageable integration.
Connectivity and control are managed via RS232C, RJ45 LAN, and IR inputs, enabling integration with the signage box controller and SuperSign CMS. The package includes necessary cabling such as FFC, DP, and LC cables, along with tiling set fixers for multi-panel setups. As a discontinued model, availability should be confirmed directly with our team, who can advise on current stock or suitable successor options for your project requirements.
Key features
- OLED Visuals - 55-inch OLED panel with 1920 x 1080 resolution and 150,000:1 contrast ratio for deep blacks and vivid colours.
- Curved Design - Flexible form factor with 0.6 mm top/bottom bezels, allowing for immersive curved installations or flat mounting.
- Control Interface - Includes RS232C, RJ45 LAN, and IR ports for monitoring and control via signage controllers or CMS software.
- Operational Specs - Rated for 18 hours daily use of moving video, with typical brightness of 400 nits and 10-80% humidity tolerance.
- Installation Kit - Supplies include tiling fixers, flex bars, shield cover, and various cables (DP, FFC, LAN) for complete setup.
Ideal for: Suitable for retail windows, museum exhibits, and corporate lobbies requiring curved or flat displays, with logistics support for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55EF5F-P
- Product type
- Digital Signage Display
- Key features
- Flexible curved OLED, landscape and portrait, signage box controller, SuperSign CMS, Signage365Care, RS232C and LAN control, tiling set fixers
- Duty cycle
- 18 hours/day, 7 days a week (moving video)
- Orientation
- Landscape and portrait
Display
- Brightness
- 400 cd/m²
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 150,000:1
- Panel technology
- OLED
Connectivity
- Ports
- RS232C In/Out, RJ45 LAN In/Out, IR In
Physical & warranty
- In the box
- Remote controller, power cord, quick setup guide, IR receiver, regulation book, RS232C gender adapter, RS232 cable, FFC cables (4), DP cable, LAN cable, LC cable, tapes, screws, shield cover, tiling set fixers, flex bars
- Operating humidity
- 10% to 80%
- Operating temperature
- 0 to 40 °C
- Power consumption
- 309 W typical / 318 W maximum
- Dimensions
- 701.4 x 1219.7 x 38.0 mm (head, with pem-nut)
- Weight
- 7.8 kg (head)
- Shipping weight
- 18.9 kg (packed)
- Bezel size
- Off-bezel 0.6 mm top/bottom, 6.7 mm sides
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 55EF5F-P still in production?
No, the LG 55EF5F-P is a discontinued model. Our team can confirm current stock availability or recommend the current successor model for your specific installation needs.
Which countries in the GCC and Africa do you ship to?
We ship to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners. Delivery times depend on the country and order size, which is confirmed on the quotation.
Do you provide installation services outside the UAE?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided by our team if needed to assist your local technicians.
What is the maximum duty cycle for this display?
The display is rated for 18 hours per day, 7 days a week when playing moving video content. It operates within a temperature range of 0 to 40 °C and 10-80% humidity.
Does the package include cabling for tiling?
Yes, the box includes FFC cables, DP cables, LAN cables, LC cables, and tiling set fixers. It also provides an RS232C gender adapter and cable for control connectivity.
Can this open frame be mounted in portrait orientation?
Yes, the LG 55EF5F-P supports both landscape and portrait orientations, making it versatile for various digital signage layouts and vertical content display requirements.
What warranty and support do you offer?
We provide the manufacturer warranty along with Smart-Boards after-sales support. As an authorised reseller, we also offer live or virtual demonstrations and quote-only pricing for education or bulk orders.
