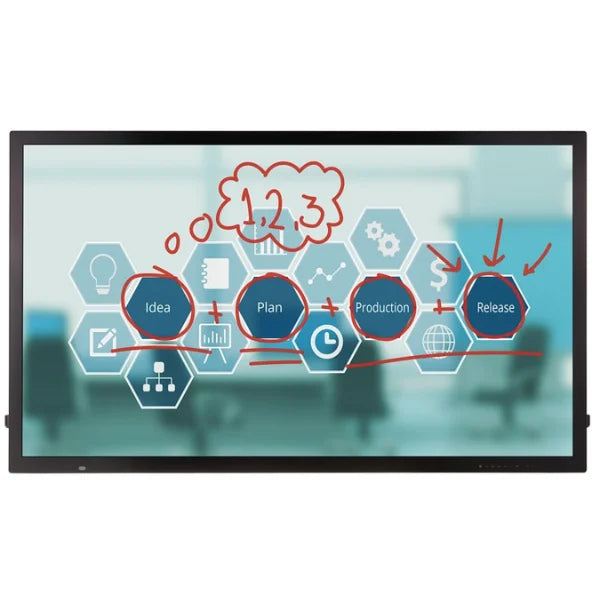

The LG 55TC3D is a 55-inch interactive flat panel featuring Full HD resolution and 40-point P-Cap touch. Designed for educational and corporate environments, it supports multi-platform connectivity. Smart-Boards supplies this discontinued model across the GCC and Africa through authorized channels.
This LG TC3D series display combines a 55-inch screen with a 450 cd/m² brightness level for clear visibility in well-lit rooms. It offers extensive connectivity including three HDMI inputs, DisplayPort, DVI-D, and RS232C control for integration into existing AV infrastructure. The unit weighs 30.1kg and requires a 300 x 300 mm VESA mount for wall installation.
As a discontinued product, availability is confirmed by the Smart-Boards team upon request. The device operates within 0°C to 40°C and includes SuperSign Premium software for content management. We provide manufacturer warranty coverage and after-sales support for buyers in the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, ensuring reliable service for multi-site deployments.
Key features
- 40-Point Touch - Supports up to 40 simultaneous touch points with 2mm accuracy using P-Cap Ag Metal Mesh technology.
- High Brightness - Delivers 450 cd/m² typical brightness to maintain image clarity in standard indoor lighting conditions.
- Robust Connectivity - Includes three HDMI ports, DisplayPort, DVI-D, USB 3.0/2.0, and RJ45 for reliable network control.
- Smart Energy Saving - Consumes ≤ 70W in smart energy saving mode to reduce power usage during idle periods.
- Software Suite - Comes with SuperSign Premium for content management and SuperSign Link for device monitoring and control.
Ideal for: Classrooms and meeting rooms in the GCC and Africa requiring reliable interactive displays for collaboration and digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55TC3D
- Product Name
- LG 55TC3D Interactive Digital Board Manufacturer: LG Display Size: 55 inches Resolution: Ultra HD (3840 × 2160) Aspect Ratio: 16:9 Touch Technology: Multi-Touch (Up to 10 Touch Points) Viewing Angle: 178° Wide Viewing Angle Connectivity: HDMI, USB, LAN, Audio In/Out Wireless Sharing: Yes (Screen Mirroring & Casting) Built-in Speakers: Yes Whiteboard Functionality: Yes Operating System Compatibility: Windows, macOS, Android Design: Anti-Glare, Durable Surface, Slim Bezel Power Supply: AC 100–240V, 50/60Hz Country of Origin: South Korea
Display
- Brightness
- 450 cd/m²
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
Touch
- Touch accuracy
- 2 mm
- Touch points
- 40-point multi-touch
- Touch technology
- PCAP
- Touchscreen
- Yes
Connectivity
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 3
- Touch USB ports
- Touch USB 2.0 × 2
- Connectivity options
- HDMI, USB, Ethernet, Audio In/Out
Physical & warranty
- In the box
- Remote Controller (incl. battery 2 ea), Power Cord, QSG, HDMI Cable 3 M, Regulation Book, Phone to RS232C Gender, Touch Pen × 2, Touch Pen Tip × 1
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Dimensions
- 1276.4 x 751.9 x 63.9 mm
- Weight
- 30.1 kg
- Shipping dimensions
- 1369 x 890 x 210 mm
- VESA mount
- 300 x 300 mm
- Bezel size
- 32.7 mm (T), 33.4 mm (L/R), 38.8 mm (B)
- Country of origin
- South Korea
- Power source
- 100-240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 55TC3D still in production?
No, this model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model based on your specific project requirements and location.
Which countries do you deliver to?
We ship to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African countries through established logistics partners at competitive rates.
Is installation included for orders outside the UAE?
On-site installation is available only within the UAE. For other countries, we deliver the unit ready for local setup, providing remote guidance if needed during the configuration process.
What is the touch technology used?
The display uses P-Cap (Ag Metal Mesh) touch technology, supporting up to 40 touch points simultaneously with an accuracy of 2mm for precise interaction.
Does it support macOS?
Yes, the built-in OPS slot supports macOS 10.12 Sierra and 10.13 High Sierra, provided the host computer meets the minimum CPU requirements for these operating systems.
What is included in the box?
The package includes the monitor, remote controller with batteries, power cord, HDMI cable, touch pens, tips, QSG, and regulation book for immediate setup.
How do I get pricing for this unit?
Pricing is available by quotation only. Contact our sales team with your delivery location and quantity to receive a detailed quote including education or bulk options.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
