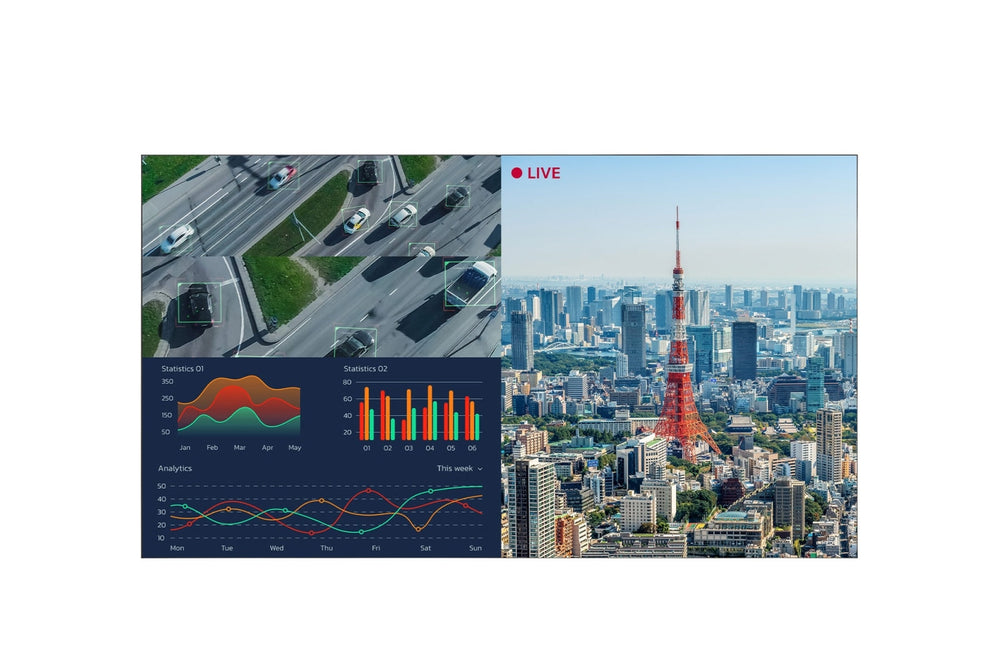

The LG 55VM5R-H is a 55-inch FHD video wall display designed for high-density installations across the GCC and Africa. Featuring a slim 1.7mm bezel, 500 nits brightness, and webOS 6.1, it supports 24/7 operation. Smart-Boards supplies this model for corporate, educational, and government sites in the region.
This 55-inch ADS panel delivers Full HD resolution with 500 nits of typical brightness and a 1,200:1 contrast ratio. The slim profile includes a 1.7mm panel-to-panel bezel and 0.5mm to 1.2mm active-area bezel, ensuring clean visuals. It features 178-degree viewing angles, 16.7 million colors, and an 8ms response time. The display supports portrait or landscape orientation and operates continuously for 24/7 use with a 50,000-hour minimum lifespan.
Built for reliability, the unit includes an internal accelerometer sensor, temperature sensor, and eMMC storage for local content scheduling. Connectivity options include two HDMI inputs (HDCP 2.2/1.4), DisplayPort in/out, RS232C, and RJ45 LAN ports for network sync and SNMP management. It supports daisy chaining via HDMI and DP, gapless playback, and screen rotation. The webOS 6.1 interface allows for local key operation and group manager controls, making it suitable for multi-site rollouts in the GCC and Africa.
Key features
- Slim Bezel Design - Features a 1.7mm panel-to-panel bezel and 0.5mm to 1.2mm active-area bezel for minimal visual interruption.
- 24/7 Operation - Engineered for continuous use with a 50,000-hour minimum lifespan and 24 hours/day operation capability.
- webOS 6.1 Platform - Integrated webOS 6.1 supports local content scheduling, group manager controls, and USB plug-and-play functionality.
- Network Management - Includes RJ45 LAN ports for local network sync, SNMP support, and RS232C sync for centralized control.
- Flexible Connectivity - Provides two HDMI inputs (HDCP 2.2/1.4), DisplayPort in/out, and IR in/out for versatile signal routing.
Ideal for corporate lobbies, command centers, and educational campuses requiring reliable digital signage and video walls across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55VM5R-H
- Product type
- Video Wall Display
- Key features
- Tile mode, DP and HDMI daisy chain, failover, local content scheduling, gapless playback, control manager and SNMP, Wake on LAN, screen rotation
- IP rating
- IP5X (tested)
- Orientation
- Landscape, Portrait
Display
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Colour depth
- 16.7 million
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Surface protection
- Anti-glare (25% haze)
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- ADS
- Response time
- 8 ms
System
- Operating system
- webOS 6
- Storage
- 8 GB
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort in and out
- Ethernet (RJ45)
- RJ45 in × 1, RJ45 out
- HDMI input
- HDMI In × 2
- Serial port
- RS-232C in and out
- USB ports
- USB 2.0 Type-A × 1
Camera & audio
- Audio out
- Yes
Physical & warranty
- In the box
- Remote controller with 2 batteries, power cord, RS-232C cable, LAN cable, DP cable, IR receiver, manual
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 170 W (typical), 200 W (max)
- Standby power
- 0.5 W
- Dimensions
- 1212.7 x 683.5 x 90.1 mm
- Weight
- 20.1 kg
- Shipping dimensions
- 1393 x 955 x 303 mm
- VESA mount
- 600 x 400 mm
- Shipping weight
- 28.3 kg
- Bezel size
- 1.7 mm bezel-to-bezel (1.2 mm top/left, 0.5 mm bottom/right)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class B, CE, KC, Energy Star 8.0
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the bezel width of the LG 55VM5R-H?
The panel-to-panel bezel width is 1.7mm. The active-area-to-active-area bezel width varies by side: 3.1mm total, with 1.9mm on the top/left and 1.2mm on the bottom/right.
Can this display operate continuously?
Yes, the LG 55VM5R-H is designed for 24/7 operation with a minimum lifespan of 50,000 hours, making it suitable for always-on commercial environments.
Does the 55VM5R-H support network management?
Yes, it includes RJ45 LAN ports for local network synchronization and supports SNMP for centralized monitoring and control across multiple units.
Is the display available in portrait mode?
Yes, the LG 55VM5R-H supports both portrait and landscape orientations, allowing for flexible installation configurations in various spaces.
Which countries can receive the 55VM5R-H?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners, confirming delivery times per quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available if needed.
What mounting interface does the 55VM5R-H use?
The display uses a VESA standard mount interface of 600 x 400 mm, ensuring compatibility with standard video wall brackets and stands.
