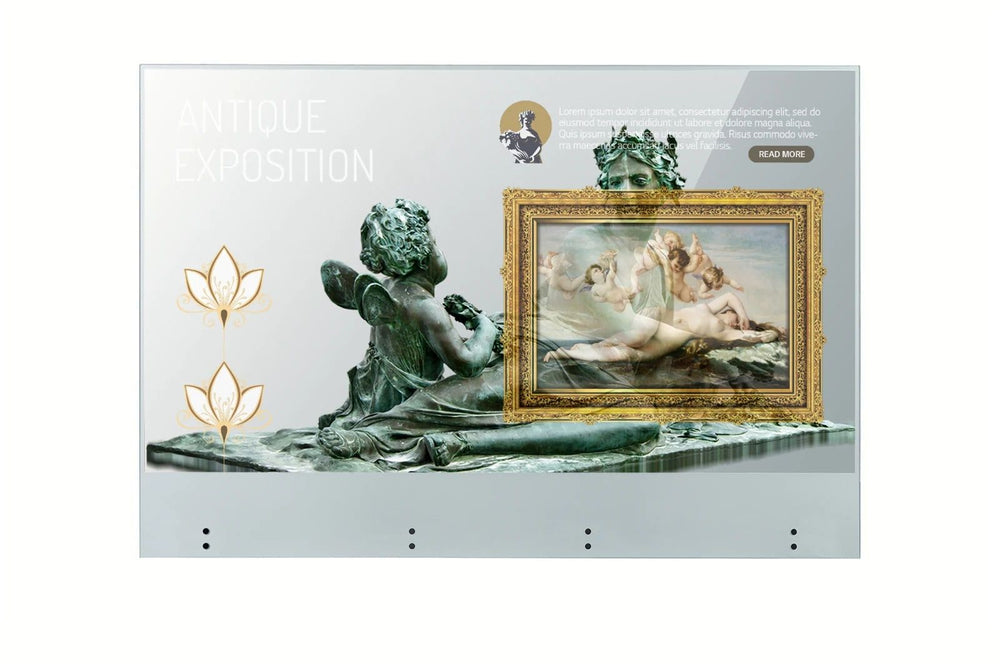

The LG 55EW5TF-A is a 55-inch transparent OLED touch signage display designed for high-impact digital information in retail and corporate environments. Supplying this model across the GCC and Africa, Smart-Boards offers quote-only pricing and logistics support for multi-site deployments.
This transparent OLED display combines 150 nits brightness with 33% transparency to overlay content on physical backgrounds without blocking visibility. The 55-inch panel features 10-point multi-touch with 3.5 mm accuracy, allowing interactive engagement in retail windows or lobbies. Running webOS 4.0 on 16 GB storage, it supports local scheduling and SuperSign CMS integration for centralized content management across diverse locations.
Smart-Boards supplies the 55EW5TF-A.AMA, .AMI, and .AMN variants to schools, ministries, and companies in the GCC and Africa. We coordinate shipping through established logistics partners to ensure cost-effective delivery to your site. While on-site installation is limited to the UAE, we provide remote guidance for setup in other countries. Our team confirms delivery timelines and quotation details based on order size and destination.
Key features
- Interactive Transparency - The 55-inch OLED panel offers 33% transparency with 10-point touch and 3.5 mm accuracy for engaging content overlay.
- Connectivity Options - Includes HDMI In, DP In/Out, RS232C, and RJ45 LAN ports for robust integration with existing AV infrastructure.
- Compact Design - The head weighs 14.6 kg with dimensions of 1225.5 x 832.9 x 7.0 mm, while the signage box is 3.4 kg.
- Operational Reliability - Supports 18/7 duty cycles for moving content with operating temperatures between 0 and 40 °C.
- Content Management - Features webOS 4.0, 16 GB eMMC storage, and compatibility with SuperSign CMS for centralized control.
Ideal for: Suitable for retail windows, corporate lobbies, and museum displays requiring interactive transparency, ideal for buyers across the GCC and Africa seeking transparent OLED signage solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 55EW5TF-A
- Product type
- Transparent OLED Touch Signage Display
- Key features
- Transparency 33%, 10-point touch, Portrait/landscape, Screen rotation, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Display
- Brightness
- 150 cd/m²
- Colour depth
- 1.07 billion colours
- Refresh rate
- 120 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- BT.709 120%
- Contrast ratio
- 150,000:1
- Panel technology
- OLED
- Response time
- 1 ms (G to G), 8 ms (MPRT)
Touch
- Touch accuracy
- 3.5 mm
- Touch points
- 10-point multi-touch
System
- Operating system
- webOS 4
- Storage
- 16 GB
- Operating hours
- 18/7 (moving content only)
Connectivity
- Ports
- HDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 Type A × 2, USB 2.0 Type B × 1 (touch), IR In/Out, Audio Out × 1
Physical & warranty
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 0.5 W (standby)
- Dimensions
- 1225.5 x 832.9 x 7.0 mm (head)
- Weight
- 14.6 kg (head), 3.4 kg (signage box)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / NRTL, FCC Class A, CE, KC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the LG 55EW5TF-A available for purchase?
Yes, Smart-Boards is an authorised reseller of LG products and supplies the 55EW5TF-A model. Pricing is by quotation only, and we can confirm current availability based on your specific order size and destination country.
Which countries can receive this signage display?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners. Delivery costs are minimised, and specific timelines are confirmed on the quotation.
Do you provide installation in the GCC?
On-site installation is available only within the UAE. For other GCC and African countries, units are delivered ready for local setup, with remote guidance provided if needed to assist your technical team.
What is the touch accuracy of this display?
The 55-inch panel supports 10-point multi-touch with an accuracy of 3.5 mm, ensuring precise interaction for digital signage applications in high-traffic areas.
Can I get a demonstration before buying?
Yes, Smart-Boards offers live or virtual demonstrations of the LG 55EW5TF-A. This allows you to verify performance and suitability for your specific environment before finalising the quotation.
What warranty does this product carry?
The product includes the manufacturer's warranty plus Smart-Boards after-sales support. We manage the support process to ensure your team receives necessary assistance throughout the product lifecycle.
Does the 55EW5TF-A support vertical mounting?
Yes, the signage box and panel support portrait/landscape orientation and screen rotation, allowing flexible mounting options for various architectural requirements in retail or corporate spaces.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
