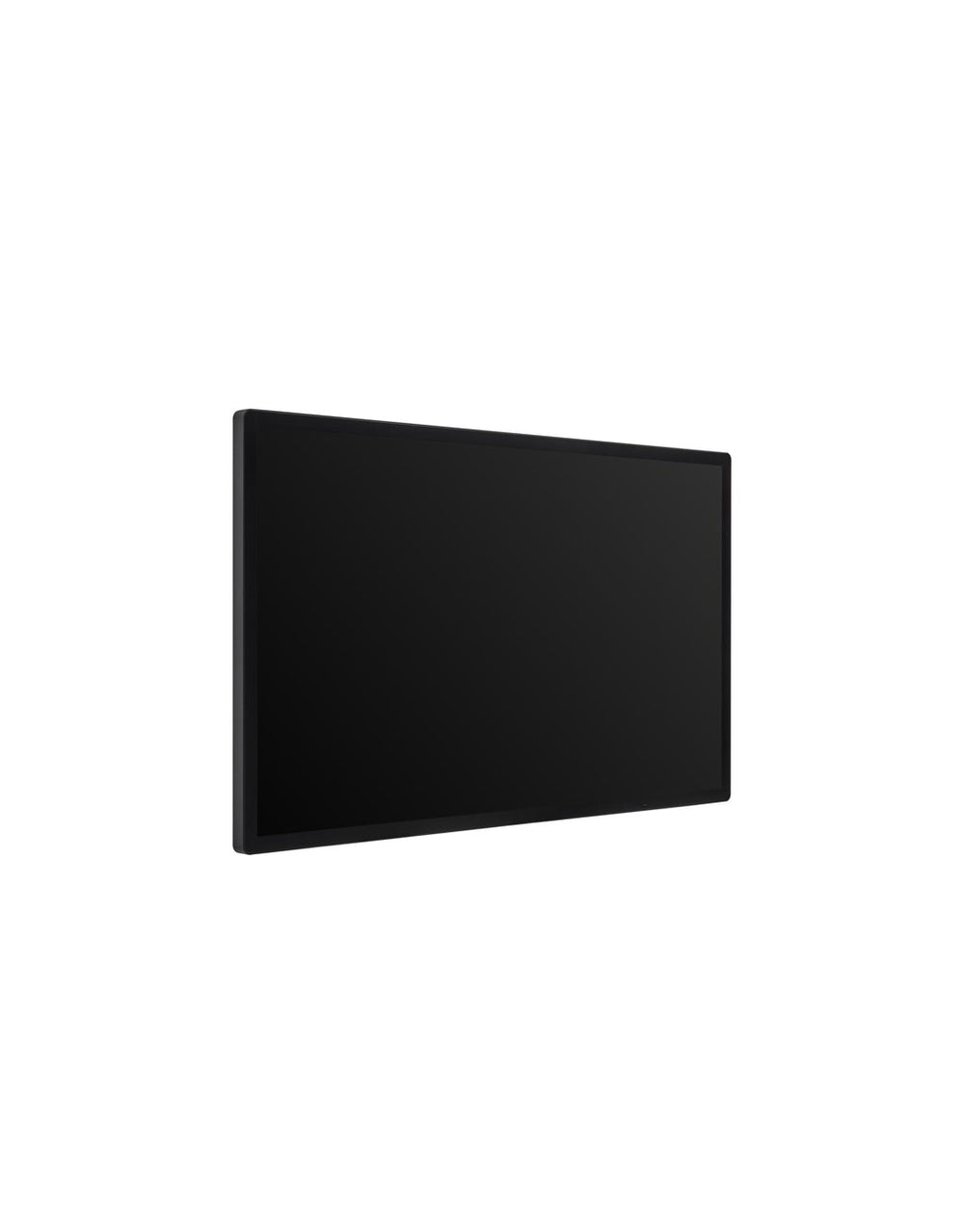

The LG 55TF5Q is a 55-inch open-frame touch kiosk designed for high-traffic digital signage. It features 4K UHD resolution, Android 13, and IP5X protection. Smart-Boards supplies this unit across the GCC and Africa for corporate and public use.
This 55-inch open-frame display delivers 4K UHD clarity for interactive public information systems. The screen offers 450 nits brightness with tempered glass, ensuring visibility in varied lighting conditions. Android 13 powers the interface, supporting multi-touch input across Windows and macOS environments without requiring webOS.
Built for durability, the kiosk carries an IP5X rating against dust ingress and withstands diverse operating temperatures. It includes built-in Wi-Fi and Bluetooth for network flexibility, alongside HDMI 2.2 inputs for reliable content playback. The 30.5 mm bezel provides a clean aesthetic for wall or stand mounting in lobbies and transit hubs.
Key features
- 4K UHD Touch Display - The 55-inch panel provides 3840 x 2160 resolution with 10-point multi-touch capability and under 35 ms response time.
- Android 13 Operating System - Runs on Android 13, enabling direct app installation and compatibility with touch functions on Windows and macOS hosts.
- IP5X Dust Protection - The enclosure meets IP5X standards to resist dust accumulation, making it suitable for harsh or high-traffic public environments.
- Connectivity Options - Includes dual HDMI 2.2 inputs, RS232C control, RJ45 LAN, and built-in Wi-Fi and Bluetooth for flexible integration.
- VESA Mounting Support - Supports 400 x 400 mm VESA patterns and allows 30° tilt in both face-up and face-down orientations for custom installations.
Ideal for airport wayfinding, retail information points, and corporate lobbies, suiting buyers across the GCC and Africa seeking durable interactive signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Tilt range
- 30° face up, 30° face down
- Model
- 55TF5Q
- Product type
- Touch Kiosk Display
- Key features
- 4K UHD touch, 3,200:1 dynamic contrast, 450 nits with tempered glass, Android 13, built-in Wi-Fi and Bluetooth, 5 W x 2 speakers, IP5X, 400 x 400 mm VESA
- Compatibility
- Touch on Android, Windows, macOS
- IP rating
- IP5X
- Orientation
- Portrait and landscape
Display
- Brightness
- 450 cd/m²
- Colour depth
- 16.7 million colors
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° x 178°
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
Touch
- Touch accuracy
- 3.0 mm
- Touch points
- 10-point multi-touch
- Touch response time
- Under 35 ms (touch-down latency)
System
- Operating system
- Android 13
Connectivity
- Touch USB ports
- USB 2.0 Type-B × 1
- USB ports
- USB 3.0 Type-A × 1, USB 2.0 Type-A × 1
- Ports
- HDMI In × 2 (HDCP 2.2), RS232C In, RS232C Out, RJ45 LAN In, IR In, Audio In, Audio Out
Camera & audio
- Speaker output
- 5 W x 2
Physical & warranty
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Standby power
- 0.5 W
- Dimensions
- 1270.6 x 741.4 x 56.85 mm (with touch panel)
- Weight
- 24.5 kg (head only)
- Shipping dimensions
- 1430 x 160 x 845 mm
- VESA mount
- 400 x 400 mm
- Bezel size
- 30.5 mm even bezel (with black area)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, cULus, FCC Class A, CE, ERP, Energy Star
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the brightness level with the glass installed?
The brightness is 450 nits typically when the tempered glass is installed. Without the glass, the unit reaches 550 nits. This ensures readable content in well-lit indoor spaces.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Delivery costs are minimized through established logistics partners.
Is on-site installation available in KSA or Qatar?
No. On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available from the Dubai office.
Does this kiosk support touch on Windows and macOS?
Yes. The 10-point multi-touch interface is compatible with Windows and macOS operating systems. It connects via USB for touch data transmission alongside HDMI for video.
What is the power consumption in standby mode?
The standby power consumption is 0.5 W. The unit operates on 100–240 V AC, 50/60 Hz, making it compatible with standard power supplies across different regional grids.
Can the display be mounted in portrait orientation?
Yes. The kiosk supports both portrait and landscape orientations. It allows for 30° tilt face-up and 30° tilt face-down to adjust viewing angles for different user heights.
Does Smart-Boards provide after-sales support?
Yes. In addition to the manufacturer warranty, Smart-Boards provides after-sales support. The team can assist with technical queries and confirm availability or successors if needed.
