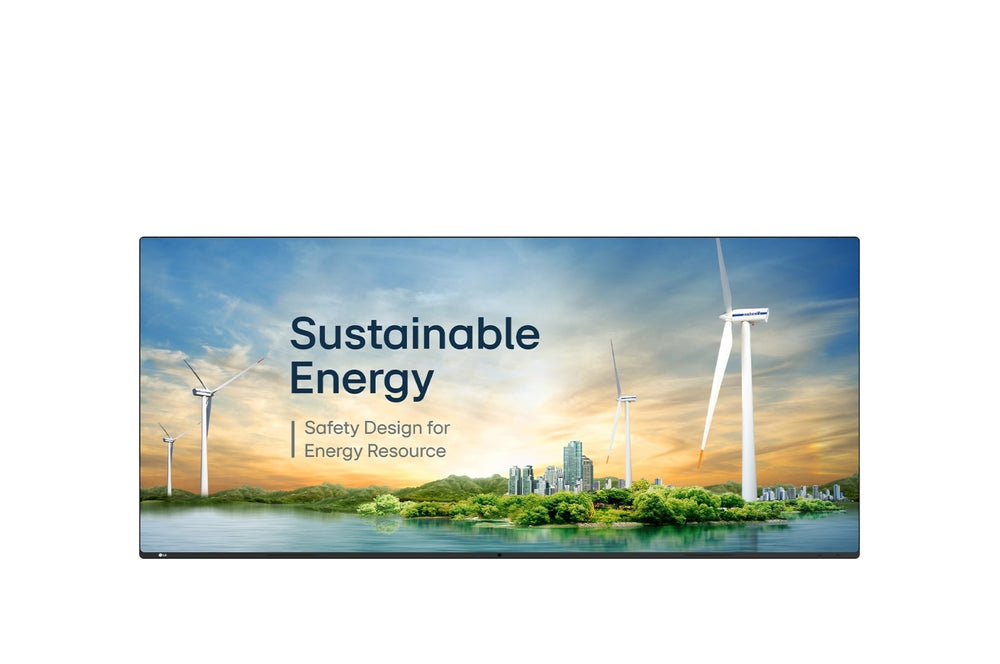

The LG 105BM5N is a 105-inch 5K UltraWide digital signage display featuring a 21:9 aspect ratio and 400-nit brightness for high-impact visual content in command centers and boardrooms. Smart-Boards, an authorised reseller, supplies this model across the GCC and Africa with logistics support.
This 105-inch direct-lit VA panel delivers a native 5120 x 2160 resolution with a 4000:1 contrast ratio, ensuring clear text and vivid imagery in professional environments. The display supports 10-bit color depth and covers 72% NTSC, making it suitable for detailed data visualization and media playback. With a viewing angle of 178x178 degrees, content remains visible from wide perspectives, ideal for collaborative spaces and large audience areas.
Built for continuous operation, the 105BM5N handles 16 hours of daily use with an operating temperature range of 0°C to 40°C. It includes built-in power, two 16W speakers plus a 15W subwoofer, and WiFi 6 connectivity for stable network integration. The unit features 8GB RAM and 64GB storage, along with an OPS slot for flexible content management systems. Smart-Boards provides quote-based pricing and regional delivery to ensure reliable deployment across multiple sites.
Key features
- UltraWide Format - The 21:9 aspect ratio and 5120 x 2160 resolution provide expansive horizontal space for timelines, dashboards, and multi-window layouts.
- High Brightness - Typical brightness reaches 400 nits to maintain visibility in well-lit boardrooms and public spaces without glare interference.
- Commercial Durability - Designed for 16 hours daily operation with thermal tempering protection glass and CB/NRTL safety certifications for enterprise reliability.
- Connectivity Options - Integrated WiFi 6, Bluetooth 5.2, Gigabit LAN, and HDMI inputs allow flexible network configuration and peripheral attachment.
- OPS Support - An OPS slot with built-in power enables easy installation of Windows-based media players for remote content management and updates.
Ideal for: This display suits command centers, executive boardrooms, and educational facilities across the GCC and Africa requiring large-format, high-resolution content presentation.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 105BM5N
- Product type
- Stretch Signage Display
- Key features
- Internal Memory (64 GB), Wi-Fi (Slot Type), Auto Brightness Sensor, Proximity Sensor, Power Indicator, Local Key Operation (Power Key), Android 13.0 (AOSP), USB Plug & Play, Screen Share (LG CreateBoard Share), Wake on LAN, Network Ready, HDMI-CEC
- Orientation
- Landscape & Portrait
Display
- Backlight
- Direct LED
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 5120 × 2160
- Screen size
- 105"
- Surface protection
- 25% haze
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 21:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 4,000:1
- Panel technology
- VA
- Response time
- 6.5 ms
System
- Processor
- ARM 4x Cortex-A76 + 4x Cortex-A55
- Graphics
- Mali-G610 MP4
- OPS slot
- Yes (80-pin Intel OPS)
- Operating system
- Android 13
- RAM
- 8 GB
- Storage
- 64 GB
- Operating hours
- 16/7
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- DisplayPort (In, Out)
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 4
- HDMI output
- HDMI Out × 1
- Serial port
- RS-232 × 1
- USB-C
- USB-C (DP Alt Mode, 100 W charging)
- USB ports
- USB-A 3.0 × 4, USB-A 2.0 × 3, USB-B 2.0 Out × 3
- Wi-Fi
- Optional
Camera & audio
- Audio in
- Audio in
- Audio out
- Optical SPDIF out
- Speaker output
- 2 × 16 W + 15 W
Physical & warranty
- In the box
- Power Cord, HDMI Cable, Remote Controller, SI07B, Wall Mount
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 350 W / 850 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 2510.6 x 1123.1 x 93.6 mm
- Weight
- 90.1 kg
- Shipping dimensions
- 2668 x 280 x 1305 mm
- VESA mount
- 1000 x 400 mm
- Shipping weight
- 122.9 kg
- Bezel size
- 3.5 mm (T/L/R), 23 mm (B)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this display suitable for 24/7 operation?
No. The LG 105BM5N is rated for 16 hours of operation per day. For continuous 24/7 use, please contact our team for models specifically designed for non-stop commercial duty cycles.
What is the bezel width of the 105BM5N?
The bezel width is 3.5mm on the top, right, and left sides, and 23mm on the bottom side. This asymmetrical design is standard for this ultra-wide signage model.
Can the display be mounted vertically?
No. The specifications indicate that portrait orientation is not supported. This model is designed exclusively for landscape mounting configurations in digital signage applications.
Which countries receive delivery from Smart-Boards?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners. Delivery times and costs are confirmed in your quotation.
Is on-site installation available outside the UAE?
No. On-site installation is only provided within the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed to assist your team.
Does it support remote content management?
Yes. The display includes LG ConnectedCare DMS support and LG RS232C command capabilities, allowing centralized monitoring and content updates across multiple locations.
What is included in the box?
The package contains the monitor, power cord, HDMI cable, remote controller with battery, wall mount hardware, and the SI07B interface module for connectivity and control.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
