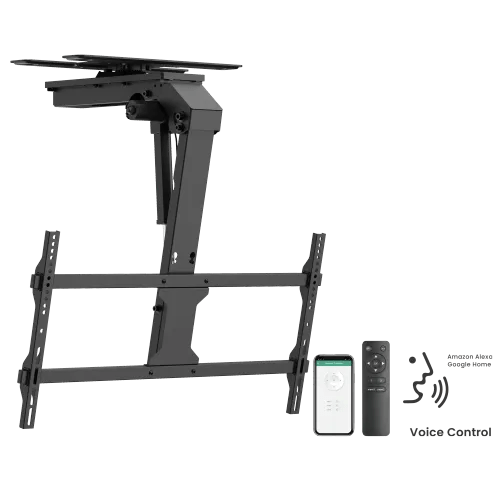

VSYS VCM-M0748DS Motorised Ceiling Mount for 43"–86" Displays, 45 kg. A ceiling-hung screen that folds away and repositions itself on command.

A ceiling mount solves the no-usable-wall problem, but it creates a second one: once the screen is up there, nobody can reach it. Changing the viewing angle for a differently arranged room means a ladder. The VSYS VCM-M0748DS removes that step. An electric push-rod motor drives tilt from 0 to minus 75 degrees and swivel through 90 degrees either side, and a flip-down foldable design lifts the panel up towards the ceiling when the room is being used for something else. It takes 43" to 86" displays up to 45 kg. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.

Movement is driven three ways: the supplied RF remote, the Tuya smartphone app, or voice through Amazon Alexa and Google Home once the unit is on the network. A collision-avoidance system stops the motor if it detects an obstruction in the swivel path, which matters on a powered arm at head height. The mount drops 177 mm below the ceiling, fixes to a solid ceiling or twin joists at 406 mm spacing, accepts VESA from 200x100 mm to 800x400 mm, and runs on 100-240 V AC through the included 3 m cord. Certification covers CE, ErP, EU Cybersecurity, FCC and RoHS, with strength testing to four times the rated load.

Key features

• Electric push-rod motor drives tilt from 0 to minus 75 degrees - a very deep downward angle for a screen mounted overhead
• Powered swivel through plus 90 to minus 90 degrees turns the display to face a different part of the room without a ladder
• Flip-down foldable design lifts the panel up out of the way when the space is being used for something else
• Three control methods: RF remote, Tuya app or voice via Amazon Alexa and Google Home
• Collision-avoidance system halts the motor when an obstacle is detected in the swivel path
• 45 kg capacity across 43" to 86" screens, strength tested to four times the rated load
• VESA 200x100 mm to 800x400 mm covers wide large-format panels as well as standard televisions
• Compact 177 mm ceiling drop keeps the parked screen close to the slab
• Certified to CE, ErP, EU Cybersecurity, FCC and RoHS - relevant for a networked, mains-powered device in a tender file
• Runs on 100-240 V AC with a 3 m power cord, ceiling plate and RF remote supplied in the box
