The Jabra Reach (8700-101) is a BYOD extension system designed for video conferencing rooms. It delivers 4K60 4:4:4 resolution and lossless audio over a single USB-C cable, eliminating clutter. Smart-Boards supplies this solution across the GCC and Africa for multi-site deployments.
Jabra Reach extends Bring Your Own Device connectivity from any seat at the table to the room’s presentation system. By using a single USB-C cable, it transmits high-resolution 4K60 4:4:4 video, audio, and control signals without the need for adapters or complex drivers. This approach supports both BYOD setups with Jabra PanaCast video bars and Android-based rooms configured for Microsoft Teams Rooms on Android or Zoom Rooms. Users gain instant access to room peripherals, ensuring a consistent experience regardless of where they sit.

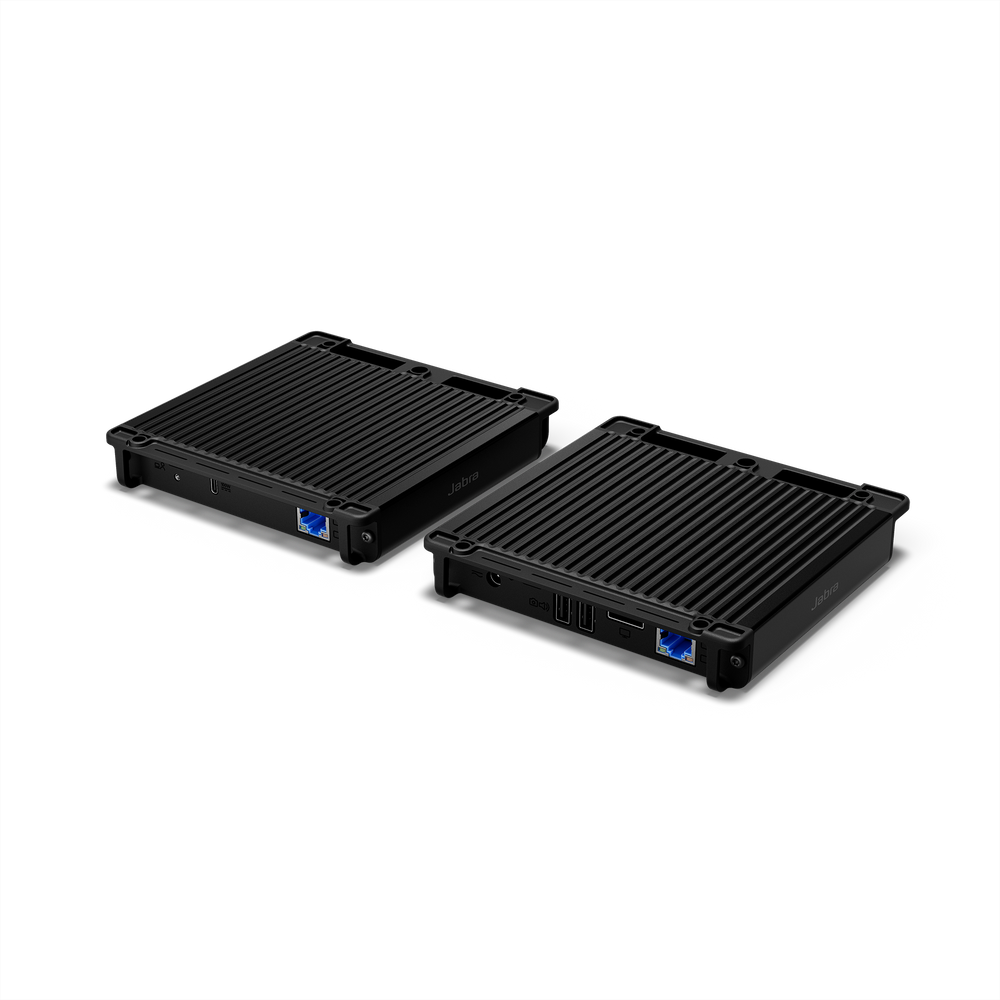

Designed for clean installations, the system features a tamperproof design with concealed ports and standardized components. The transmitter (TX) and receiver (RX) units connect via an RJ45 HDBaseT link, allowing flexible mounting on walls, tables, or displays. It is compatible with Jabra PanaCast 40, 50, 55, U30, Huddly IQ, and Speak2 75 devices. Management is simplified through Jabra Plus and web console tools, with signed and encrypted firmware ensuring security. The system operates within 0 to 35 °C and includes a 2-year manufacturer warranty.
Key features
- Single-Cable Connectivity - Extends BYOD to every seat using one USB-C cable, supporting laptop charging and data transfer without additional adapters.
- 4K60 Video Resolution - Delivers lossless 4K60 4:4:4 video and HDCP content across the room via the HDBaseT link between TX and RX units.
- Broad Video Bar Compatibility - Works with Jabra PanaCast 40/50/55, U30, Huddly IQ, and Speak2 75 for integrated audio and video extension.
- Flexible Mounting Options - Units can be mounted on walls, tables, displays, or grommets, with dimensions of 134 x 24 x 135 mm per box.
- Secure Management - Features signed and encrypted firmware, manageable via Jabra Plus and web console for enterprise-wide deployment control.
Ideal for: Suitable for schools, universities, and corporate offices in the GCC and Africa requiring scalable, clutter-free BYOD extension for Jabra and Huddly video conferencing setups.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Reach
- Product type
- BYOD Extension System
- Key features
- Single-cable USB-C BYOD, 4K60 4:4:4, HDCP, Jabra Plus and web console management, signed and encrypted firmware
- Compatibility
- Jabra PanaCast 40 VBS, PanaCast U30, PanaCast 50/55 VBS, PanaCast 50, Huddly IQ, Speak2 75
Display
- Resolution
- 4K UHD
System
- Storage conditions
- -20 to 45 °C
Connectivity
- HDMI output
- 1 x HDMI 2.0 (RX)
- USB ports
- 2 x USB-A 2.0, 1 x USB-C 2.0 (RX); 1 x USB-C 2.0 with DP alt mode and PD (TX)
- Connectivity options
- RJ45 HDBaseT link between RX and TX boxes
Physical & warranty
- Mounting type
- Wall, table, display, grommet
- Operating temperature
- 0 to 35 °C
- Dimensions
- 134 x 24 x 135 mm (each box)
- Weight
- 302 g (RX), 297 g (TX)
- Warranty
- 2 years
- Input voltage
- 100–240 V AC, 12 V / 2 A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does Jabra Reach support Microsoft Teams Rooms on Android?
Yes. In Android-based rooms with compatible video bars, Jabra Reach allows hosts to share content directly through the Teams or Zoom meeting interface or via room peripherals.
Which countries receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners, with availability confirmed on quotation.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup with remote guidance provided by the Smart-Boards team.
What is the warranty period?
The Jabra Reach comes with a 2-year manufacturer warranty, backed by Smart-Boards after-sales support for the GCC and African regions.
Can the system charge laptops?
Yes, optional laptop charging is available over the USB-C connection, depending on the connected video bar's power delivery capabilities.
How is the system managed?
Administrators can manage the device using Jabra Plus software or the web console, ensuring firmware updates and configuration are secure and centralized.
Does it require drivers?
No. The system is plug-and-play, extending BYOD to the whole room without needing additional drivers or complex software installation on user devices.
