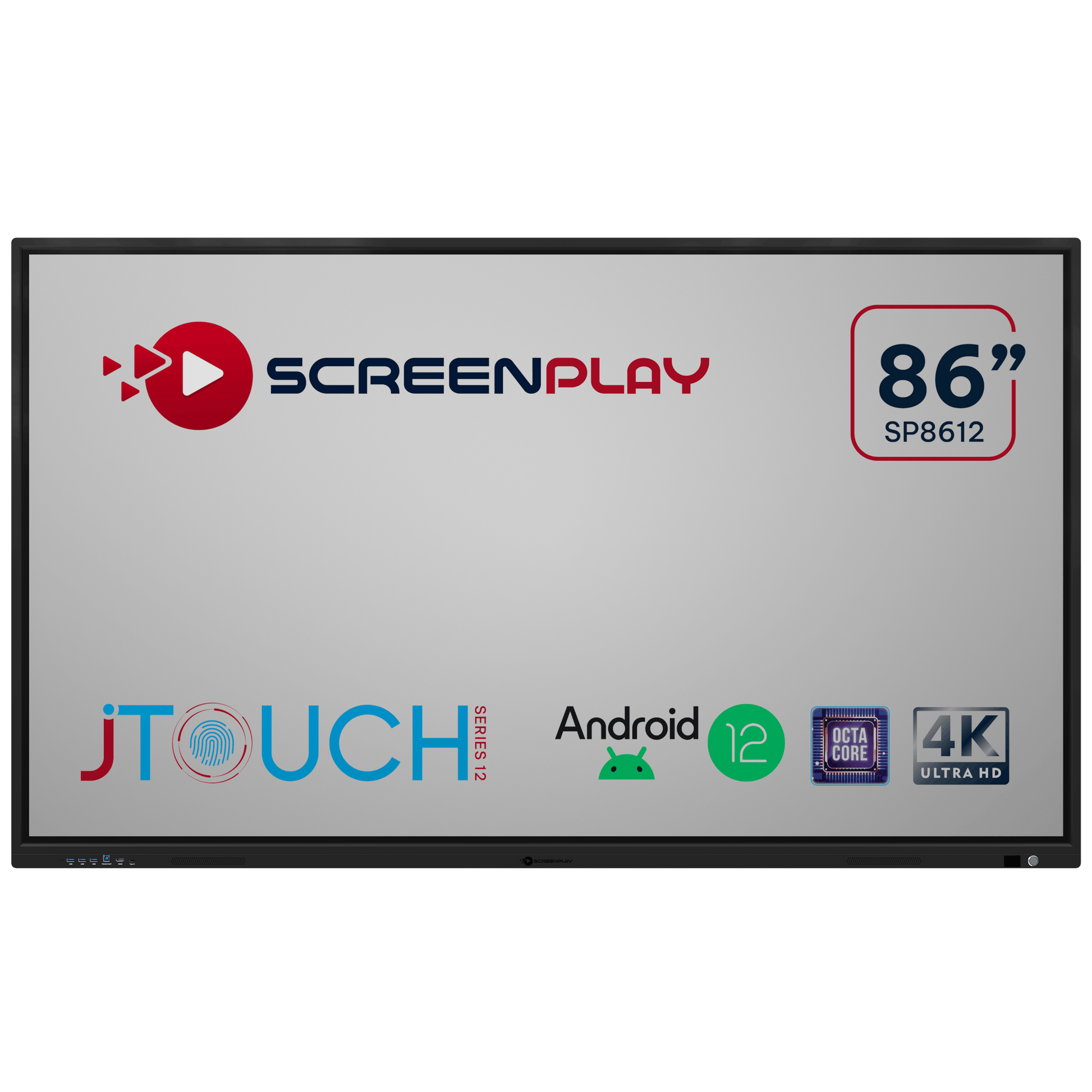

The InFocus ScreenPlay JTouch Series 12 SP8612 is an 86-inch interactive flat panel designed for educational and corporate environments. Featuring native 4K resolution and 500 cd/m² brightness, it ensures clarity in bright rooms. Smart-Boards supplies this model across the GCC and Africa with regional logistics support.
Designed for modern collaboration, the InFocus SP8612 integrates interactive capabilities into an 86-inch display with native 4K resolution (3840 x 2160 pixels). The screen utilizes D-LED backlighting to achieve 500 cd/m² maximum brightness, which maintains visibility in high-glare classrooms or conference rooms with significant natural light. The rigid aluminum alloy frame provides the durability required for high-traffic educational and business settings, ensuring long-term reliability for institutions across the region.
Connectivity options prioritize flexibility for diverse source devices, featuring dual HDMI 2.0 ports with ARC/CEC compatibility to streamline control and audio-Video transmission. Additional inputs include VGA, USB Type-C, USB 3.0, and dual USB-B ports, ensuring compatibility with both legacy and modern equipment. Audio is managed via a 3.5mm Stereo Mini Jack output and SPDIF, allowing seamless integration with existing sound systems. Smart-Boards offers live or virtual demonstrations to verify suitability before purchase.
Key features
- Native 4K Resolution - The display delivers 3840 by 2160 pixels for sharp text and detailed video content in a 16:9 aspect ratio.
- High Brightness Output - Reaching 500 cd/m², the screen effectively counters ambient light in brightly lit lecture halls and meeting spaces.
- Durable Aluminum Frame - Constructed from rugged aluminum alloy to withstand daily use and physical impacts in active institutional environments.
- Comprehensive Connectivity - Includes dual HDMI 2.0, VGA, USB Type-C, USB 3.0, and dual USB-B ports for versatile device integration.
- ARC/CEC Support - HDMI ARC/CEC functionality allows streamlined control of connected devices using a single remote interface.
Ideal for: The InFocus SP8612 suits large lecture halls, corporate boardrooms, and training centers across the GCC and Africa where high brightness and 4K clarity are required for effective presentations.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- VGA Cable, USB Cable, Regional Power Cord
- SD card slot
- TF Card Slot × 1
- Key features
- NFC card reader, Sensors: Temperature, Touch: 32-point multi-touch (Android) / 50-point (Windows)
Display
- Backlight
- D-LED
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 32 Points Multi Touch (Android), 50 Points Multi Touch (Windows)
- Touch response time
- < 6 ms
- Touch technology
- Infrared
System
- Processor
- ARM Cortex Octa Core A55 1.4GHz, A55 ×8
- Graphics
- ARM Mali Quad Core G52 600 MHz, G52 ×4
- OPS slot
- Optional
- Operating system
- Android 12
- RAM
- 8 GB
- Sensors
- Temperature
- Storage
- 128 GB
- Storage conditions
- -20 to 40 °C, 10% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (10/100 Mbps) × 2
- HDMI input
- HDMI In (HDMI 2.0) × 2
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- Touch-USB × 2 (USB-B × 2)
- USB-C functions
- Supports video, audio, touch, data, 45W charging
- USB-C
- USB-C (video, audio, touch, data, 45 W charging)
- USB ports
- USB 3.0 × 3, USB 2.0 × 1
- VGA input
- VGA × 1 (Mini D-sub 15-pin)
- Wi-Fi
- Wi-Fi 5 (802.11ac), 2.4/5 GHz
Camera & audio
- Audio in
- Audio In × 1 (3.5 mm Stereo Mini Jack)
- Audio out
- Audio Out × 1 (3.5 mm Stereo Mini Jack)
- Speaker output
- 2 × 15 W
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Remote Control, Wall Mount, Simplified Users Guide
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 500 W (max)
- Standby power
- < 0.5 W
- Dimensions
- 1953 x 1165 x 88 mm
- Weight
- 70 kg
- Shipping dimensions
- 2080 x 1295 x 180 mm
- VESA mount
- 400 x 800 mm
- Shipping weight
- 83 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / CE / EMC / IC / FCC / UL / NOM
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can the InFocus SP8612 be delivered to multiple countries?
Yes. Smart-Boards ships to GCC nations (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African countries through established logistics partners. Delivery time depends on the specific country and order size, which is confirmed in the quotation.
Is on-site installation included for deliveries outside the UAE?
No. On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance may be provided to assist local technicians with the initial configuration and mounting.
What is the maximum brightness of this 86-inch model?
The 86-inch SP8612 achieves a maximum brightness of 500 cd/m². This specification helps maintain image clarity in environments with significant natural lighting or high ambient light levels.
Does the screen support HDMI ARC and CEC?
Yes. The two HDMI 2.0 ports support ARC (Audio Return Channel) and CEC (Consumer Electronics Control). This allows audio to be sent back to a receiver and enables control of connected devices via a single remote.
What warranty coverage is provided?
The product comes with the manufacturer's standard warranty. Smart-Boards provides additional after-sales support as an authorised reseller. Specific warranty terms and duration are detailed in the official product documentation.
Can I view a live demonstration before purchasing?
Yes. Smart-Boards offers live or virtual demonstrations for clients in the GCC and Africa. This allows you to verify the interactive features and display quality before committing to a bulk or multi-site order.
How is pricing determined for this model?
Pricing is quote-only. Smart-Boards provides quotation-only pricing with options for education, government, bulk, and tender requirements. Costs vary by region and order size; please request a formal quote for accurate figures.
