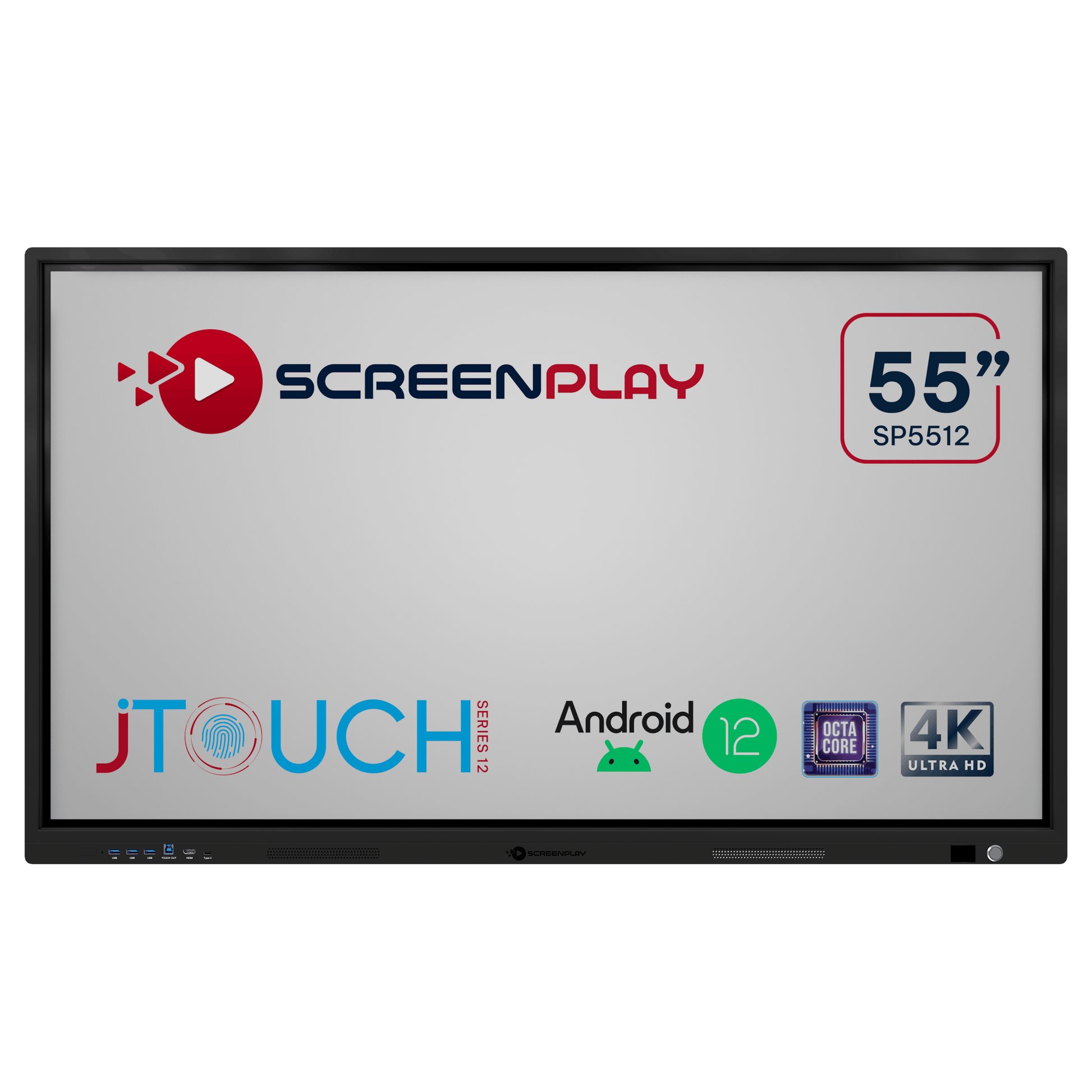

The InFocus ScreenPlay JTouch Series 12 SP5512 is a 55-inch interactive flat panel designed for educational and corporate environments. Featuring native 4K resolution (3840 x 2160) and 450 cd/m² brightness, it supports collaboration in well-lit rooms. Smart-Boards supplies this durable aluminum-framed unit to clients across the GCC and Africa.
This interactive display combines high-performance visuals with robust connectivity for versatile classroom or meeting room use. The 55-inch screen delivers a static contrast ratio of 1200:1 and a dynamic contrast ratio of 4000:1, ensuring clear video and slide content. Built with a rugged aluminum alloy frame, it resists dings and falls, extending lifespan in busy educational settings. The D-LED backlight provides consistent illumination, while the 16:9 aspect ratio matches standard media formats.
Connectivity options include dual HDMI 2.0 inputs with ARC/CEC for streamlined device control, alongside USB-C and USB 3.0 ports for modern peripherals. Audio output is handled via 3.5mm jack or SPDIF, while VGA and USB-B inputs support legacy hardware integration. Smart-Boards offers live or virtual demonstrations to verify suitability for your specific site requirements. We provide manufacturer warranty coverage and after-sales support for installations within the UAE.
Key features
- 4K Resolution Display - Native 3840 x 2160 pixel count with D-LED backlight for sharp image clarity.
- Bright Screen Output - 450 cd/m² maximum brightness suitable for rooms with moderate natural lighting.
- Durable Construction - Rugged aluminum alloy frame designed to withstand impacts in educational environments.
- HDMI Connectivity - Two HDMI 2.0 ports with ARC/CEC support for single-remote device management.
- Modern Input Options - Includes USB Type-C, USB 3.0, VGA, and USB-B ports for versatile source connection.
Ideal for small classrooms, lecture halls, and corporate meeting rooms requiring durable 4K visuals, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- VGA Cable, USB Cable, Power Cord
- SD card slot
- TF Card Slot × 1
- Key features
- NFC card reader, Sensors: Temperature
Display
- Backlight
- D-LED
- Brightness
- 450 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 32 Points Multi Touch
- Touch response time
- ≤ 6 ms
- Touch technology
- Infrared
System
- Processor
- ARM 8x Cortex-A55, 1.4 GHz
- Graphics
- ARM Mali Quad Core G52 600 MHz
- OPS slot
- Optional
- Operating system
- Android 12
- RAM
- 8 GB
- Sensors
- Temperature
- Storage
- 128 GB
- Storage conditions
- -20 to 40 °C, 10% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 × 1 (10/100)
- HDMI input
- HDMI In (HDMI 2.0) × 3
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- Touch-USB × 2
- USB-C functions
- Supports video, audio, touch, data, 45W charging
- USB-C
- USB-C (video, audio, touch, data, 45 W charging)
- USB ports
- USB 3.0 × 3, USB 2.0 × 1
- VGA input
- VGA × 1 (Rear)
- Wi-Fi
- Built-in, 2.4/5 GHz
Camera & audio
- Audio out
- Audio Out × 1
- Speaker output
- 2 × 15 W
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- Remote Control, Wall Mount, Simplified Users Guide
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- < 300 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1210 × 680 × 88 mm
- Weight
- 30 kg
- Shipping dimensions
- 1370 × 900 × 180 mm
- VESA mount
- 400 × 400 mm (VESA)
- Shipping weight
- 38 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / CE / EMC / IC / FCC / UL / NOM
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the SP5512 support HDMI ARC?
Yes, the two HDMI 2.0 inputs support ARC and CEC protocols. This allows you to control connected devices using a single remote and handle audio and video over one cable.
What is the maximum brightness of the 55-inch model?
The 55-inch SP5512 reaches 450 cd/m². This brightness level is adequate for most indoor environments, though larger 86-inch or 98-inch models in the series offer 500 cd/m² for brighter spaces.
Which countries receive delivery from Smart-Boards?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times depend on the country and order size, confirmed in your quotation.
Is installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup. We offer remote guidance if needed to assist your team with the configuration process.
What ports are available for connectivity?
Inputs include VGA, two HDMI 2.0, USB-C, one USB 3.0, and two USB-B ports. Outputs consist of a 3.5mm stereo jack and SPDIF. This mix supports both modern laptops and legacy AV equipment.
Is this product new or a successor model?
The SP5512 is listed as a current model in the ScreenPlay JTouch Series 12. If this specific unit is unavailable, our team can check stock or recommend the current successor model available for your region.
What warranty coverage is included?
The product comes with the manufacturer's warranty. Smart-Boards provides additional after-sales support for customers in the GCC and Africa. We are an authorised reseller ensuring genuine parts and service access.
