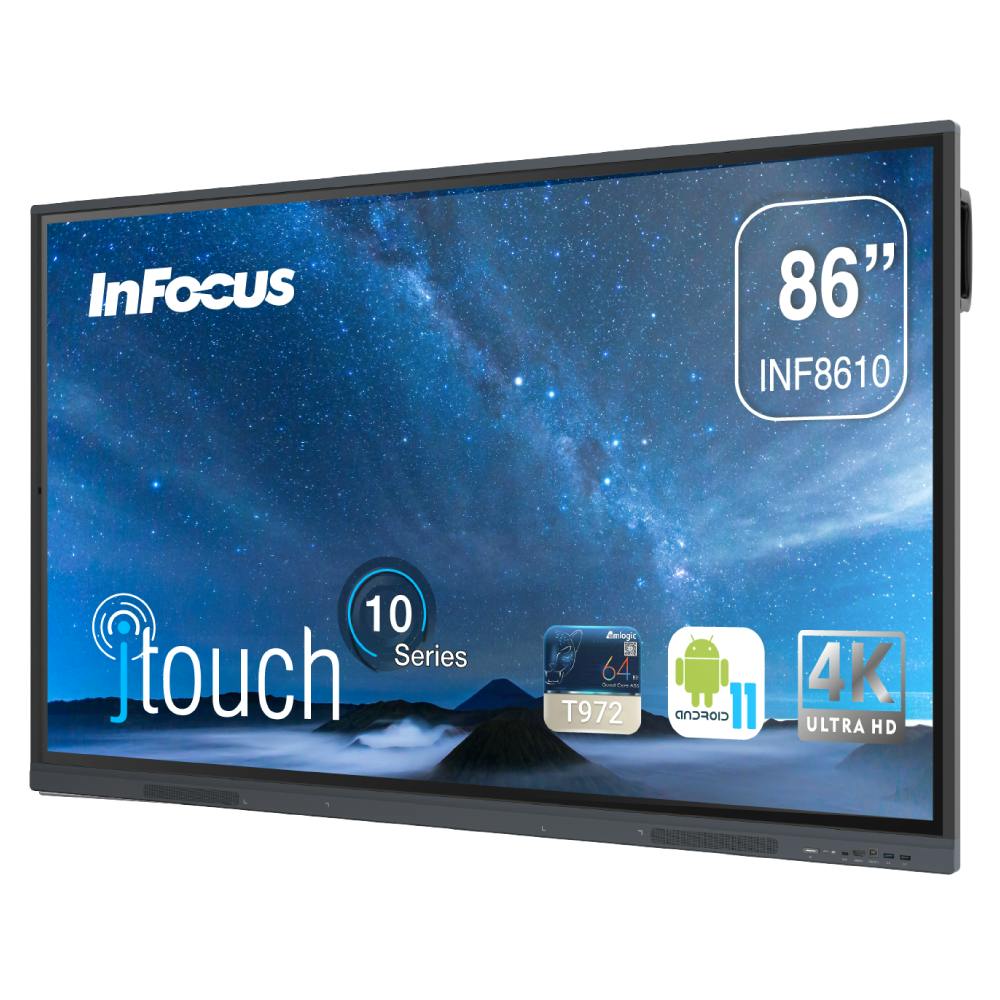

The InFocus JTouch 10 Series INF8610 is an 86-inch interactive flat panel designed for collaborative education and commercial settings. It features Android 11, 40-point touch, and integrated 10-watt stereo speakers for immediate deployment.
This InFocus model combines an 86-inch commercial-grade screen with an integrated Android 11 operating system powered by the Amlogic T982 processor. The native 4K resolution display utilizes an anti-glare coating to maintain clarity in high-brightness environments common in the GCC and Africa. Smart-Boards, as an authorised reseller, supplies this unit for schools and offices requiring reliable hardware.
Collaboration is supported by up to 40-point touch capability and dual touch pens for precise annotation. A concealed snap-in wireless module enables content sharing and editing from any device without complex cabling. The unit includes magnetic pen holders and stereo front-facing 10-watt speakers. Delivery covers multiple sites with remote guidance for local setup outside the UAE.
Key features
- Android 11 Interface - Runs on Android 11 with an Amlogic T982 system on chip processor for stable performance.
- 86-inch 4K Display - Features a commercial-grade screen with anti-glare coating to reduce ambient reflection.
- 40-Point Touch - Supports multi-user interaction with up to 40 touch points and dual touch pens.
- Wireless Connectivity - Includes a concealed snap-in wireless module for seamless content sharing and streaming.
- Integrated Audio - Equipped with stereo front-facing 10-watt speakers for clear sound output.
Ideal for: Suitable for classrooms, boardrooms, and training centers across the GCC and Africa where multi-user interaction and integrated Android functionality are required.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power cord, VGA cable, USB Type-A to Type-B cable, remote control, user guide
Display
- Backlight
- LED
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Glass protection overlay for LCD surface
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 40-point multi-touch
- Touch response time
- ≤ 10 ms
- Touch technology
- Infrared
- Touchscreen
- Yes
System
- Processor
- Amlogic T982
- Graphics
- ARM Mali-G52 MC2
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 × 1 (10/100/1000)
- HDMI input
- HDMI × 2
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 2
- USB-C
- USB-C × 1
- USB ports
- USB-A 3.0 × 4, USB-A 2.0 × 1
- VGA input
- VGA × 1 (HD15)
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- 3.5mm stereo audio in, RCA stereo audio in
- Audio out
- RCA audio stereo (L/R) output, 3.5mm stereo audio out
- Speaker output
- 2 × 10 W
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- LiteShow Wireless Adapter (INLITESHOW4), BigNote Whiteboard Software (INS-BIGNOTE), Wall Mount for 80-inch display (INF-WALLMNT3), Mobile Cart for 80-inch display (INF-MCART-PL), MondoCenter Collaboration PC (INF-MCENTER2), USB to HDMI Adapter (HW-USB2HDMI), Extended warranties
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 550 W (max)
- Standby power
- ≤ 0.5 W
- Dimensions
- 1957 x 1160 x 86 mm
- Weight
- 64.6 kg
- Shipping dimensions
- 2110 x 1283 x 225 mm
- VESA mount
- 800 x 600 mm
- Warranty
- 1 years
- Shipping weight
- 82.3 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB / CE / EMC / IC / FCC / cTUVus / NOM / EAC / BIS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the operating system for the INF8610?
Yes, it uses Android 11. This provides access to applications and a familiar interface for users in educational and commercial environments without needing external computers.
How many users can interact simultaneously?
The display supports up to 40-point touch. This allows multiple participants to write, draw, or navigate on the screen at the same time during meetings or lessons.
Can I share content from my laptop?
Yes. The concealed snap-in wireless module allows you to share, stream, and edit content from any device directly on the screen. This setup supports fast and easy interactive sessions.
Which countries do you deliver to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Delivery costs are minimized through established logistics partners.
Is installation included outside the UAE?
No. On-site installation is only provided within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What is the screen resolution?
It has a native 4K resolution. The commercial-grade screen includes an anti-glare coating that reduces reflection while maintaining image sharpness in bright rooms.
Does it have built-in speakers?
Yes. The unit features stereo front-facing 10-watt speakers. This integrated audio eliminates the need for external sound systems for basic presentations and video playback.
