Product overview

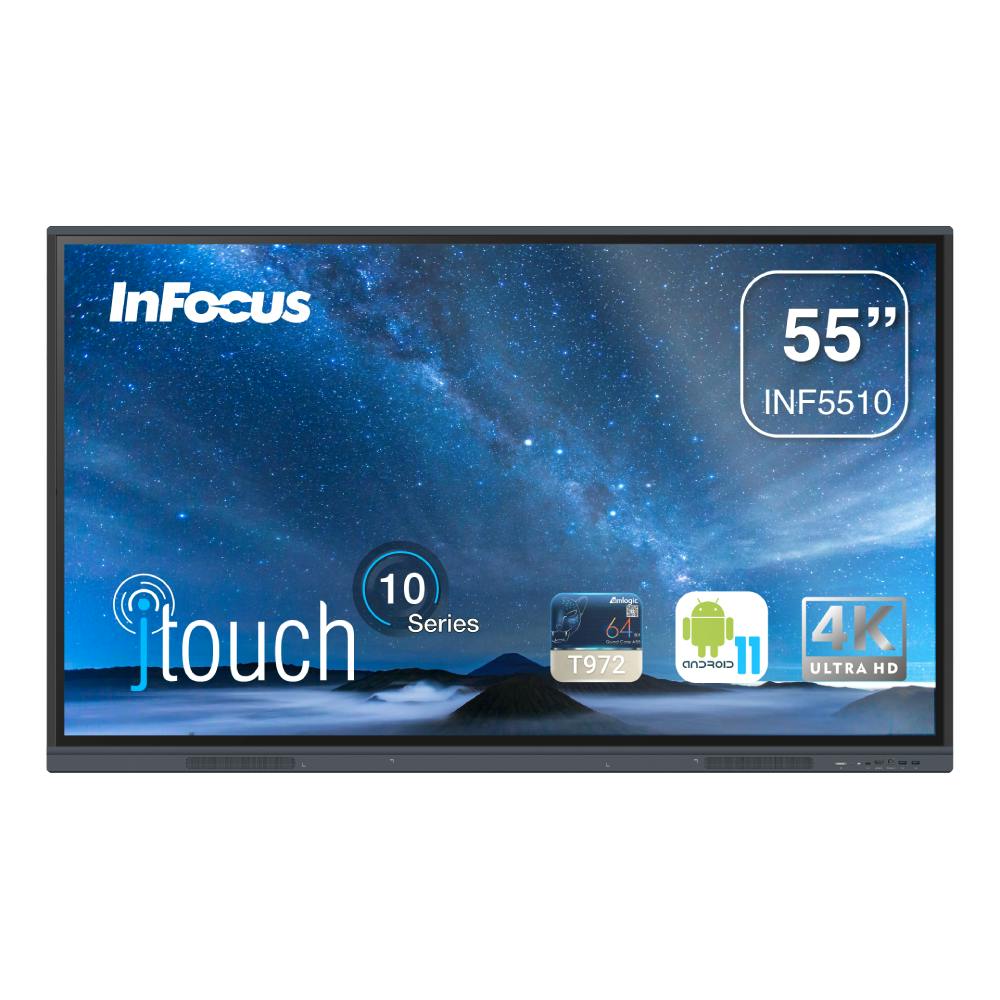

Infocus JTouch 10 Series 55 - (Model: INF5510). A 55" interactive display built for boardrooms, classrooms and training rooms.
Built for modern meeting rooms and classrooms, the Infocus JTouch 10 Series 55 - (Model: INF5510) is an all-in-one interactive flat panel with a crisp screen, natural writing and built-in collaboration tools. It replaces the projector-and-whiteboard setup with one clean device that deploys fast and is easy to use. Smart-Boards delivers it throughout the GCC and African markets with demos, tailored quotations and cost-efficient shipping through established logistics partners.
Key features
- 55" display at 400 cd/m² brightness in 4K UHD for sharp, readable content
- 40 Points Multi Touch, Infrared touch for smooth, natural writing and group work
- Built-in Android 11 on a Amlogic T982, ARM Cortex A55 Quad Core… processor for apps, whiteboarding and casting
- Integrated audio (2 × 10 W) that fills the room
- Flexible connectivity: HDMI In (HDMI 2.0) × 2; USB-A 3.0 × 4, USB-A 2.0 × 1; USB-C…
- Wireless ready (Wi-Fi 6, 2.4G/5G, Bluetooth 5) for cable-free sharing
Specifications
| Specification | Detail |
|---|---|
| Screen size | 55" |
| Resolution | 4K UHD |
| Panel & backlight | LED backlight (D-LED) |
| Brightness | 400 cd/m² |
| Refresh rate | 60 Hz |
| Touch | 40 Points Multi Touch, Infrared |
| Operating system | Android 11 |
| Processor | Amlogic T982, ARM Cortex A55 Quad Core 1.4GHz |
| Memory | 4 GB RAM, 32 GB storage |
| Audio | 2 × 10 W |
| Connectivity | HDMI In (HDMI 2.0) × 2; USB-A 3.0 × 4, USB-A 2.0 × 1; USB-C × 1 |
| Wireless | Wi-Fi 6, 2.4G/5G, Bluetooth 5 |
Ideal for: boardrooms, classrooms, training rooms, lecture halls and government meeting spaces across the GCC and Africa
Delivery & logistics: Smart-Boards ships the Infocus JTouch 10 Series 55 - (Model: INF5510) to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; other countries receive delivery ready for local setup.
Frequently asked questions
1. What is the Infocus JTouch 10 Series 55 - (Model: INF5510)?
It is a 55" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at 4K UHD on a led backlight (d-led), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 40 Points Multi Touch, Infrared, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Android 11 on board for whiteboarding, casting and apps, powered by a Amlogic T982, ARM Cortex A55 Quad Core… processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (2 × 10 W) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Professional mounting is available within the UAE.
7. Which countries can you deliver to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
8. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
9. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the Infocus JTouch 10 Series 55 - (Model: INF5510) ready for your local team to set up, with remote guidance if needed.
10. What warranty do I get?
It is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Specifications
| Ifp accessories | Remote Control, 2 × Stylus, QSG, WiFi Module |
|---|---|
| Ifp ambient light sensor | Yes |
| Ifp audio out | Audio Out × 1 |
| Ifp backlight | D-LED |
| Ifp bluetooth | Bluetooth 5 |
| Ifp brightness | 400 cd/m² |
| Ifp cpu | Amlogic T982, ARM Cortex A55 Quad Core 1.4GHz |
| Ifp display color | 10bit |
| Ifp ethernet rj45 | RJ45 (1000 Mbps Port) × 2 |
| Ifp gpu | ARM Mali G52 MC2 |
| Ifp hdmi input | HDMI In (HDMI 2.0) × 2 |
| Ifp included cables | Power Cord, 3m USB A to B, 3m HDMI |
| Ifp operating humidity | 10%~90% RH |
| Ifp operating temprature | 0 °C to 40 °C |
| Ifp ops pc slot | Optional |
| Ifp os version | Android 11 |
| Ifp power consumption | < 350 W |
| Ifp power standby | ≤ 0.5 W |
| Ifp product dimensions | 1271 × 774 × 87 mm |
| Ifp product weight | 26.1 kg |
| Ifp ram | 4 GB |
| Ifp refresh rate | 60 Hz |
| Ifp resolution | 4K UHD |
| Ifp screen size | 55" |
| Ifp sensors | Light |
| Ifp shipping dimensions | 1401 × 859 × 220 mm |
| Ifp speaker output | 2 × 10 W |
| Ifp speaker type | Built-in Speakers |
| Ifp storage | 32 GB |
| Ifp surface protection | Anti-Glare Smooth Glass |
| Ifp touch accuracy | ±1 mm |
| Ifp touch points | 40 Points Multi Touch |
| Ifp touch response time | ≤ 10 ms |
| Ifp touch technology | Infrared |
| Ifp touch usb ports | USB-B × 2 |
| Ifp type c functionality | Supports video, audio, touch, data, 65W charging |
| Ifp type c in | USB-C × 1 |
| Ifp usb ports | USB-A 3.0 × 4, USB-A 2.0 × 1 |
| Ifp vgainput | VGA × 1 (Rear) |
| Ifp viewing angle | 178° (H) / 178° (V) |
| Ifp wall mount | 400 × 200 mm (VESA) |
| Ifp wi fi | Wi-Fi 6, 2.4G/5G |
Frequently asked questions
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
