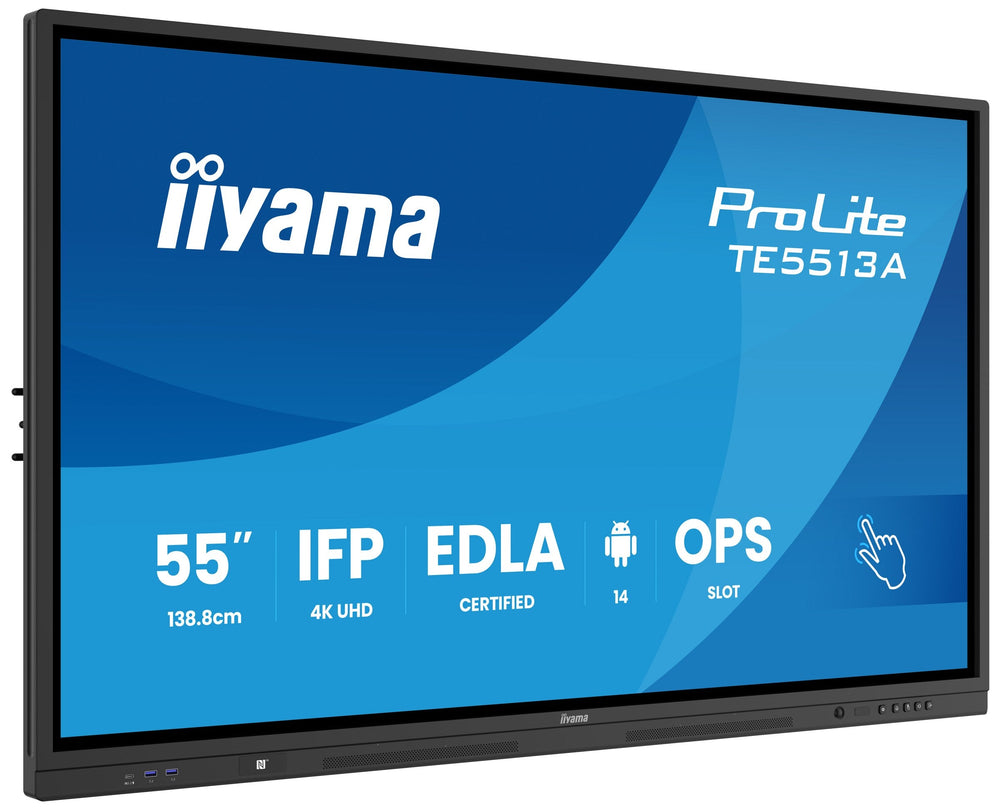

The iiyama TE5513A-B3AG is a 55-inch interactive flat panel featuring 4K UHD resolution and Google EDLA certification for integrated enterprise and education workflows. Smart-Boards, an authorised reseller, supplies this unit across the GCC and Africa, offering live demonstrations and multi-site logistics support from our Dubai office.
This display combines a 55-inch IPS screen with Zero-Gap Air Bonding to eliminate parallax errors, ensuring precise annotation during collaborative sessions. The PureTouch-IR+ technology supports 40-point multi-touch with palm rejection, allowing multiple users to interact simultaneously without interference. Powered by Android 14 and an octa-core processor, it delivers smooth performance for educational and corporate environments requiring reliable daily operation.
Connectivity is enhanced by Wi-Fi 6E and Bluetooth 5.0, alongside dual RJ45 LAN ports for stable wired networking in secure facilities. The device includes iiShare and iiControl DMS for wireless presentation and centralized management, while the PIR motion sensor optimizes energy use by detecting presence. With a 5-year warranty and Smart-Boards after-sales support, this panel is built for long-term deployment in schools, universities, and government offices across the region.
Key features
- Google EDLA Certification - Certified for direct access to Google Workspace apps, files, and collaborative tools, ensuring secure integration with existing Google enterprise accounts.
- 4K UHD Display - Features a 55-inch IPS panel with 3840 x 2160 resolution, 500 nits brightness, and 10-bit color depth for clear, vibrant visual content.
- Advanced Touch Technology - Utilizes PureTouch-IR+ with palm rejection to provide accurate 40-point multi-touch input with ±1 mm precision for natural interaction.
- Comprehensive Connectivity - Includes 2x HDMI In, 2x USB-C In, DisplayPort, dual RJ45 LAN, and an OPS slot for flexible integration with various AV and computing setups.
- Integrated Management - Equipped with iiControl DMS for remote device management and compliance with GDPR, enabling efficient monitoring of multiple units across sites.
- Energy Efficient Design - Features a PIR motion sensor that detects user presence to adjust power states, reducing energy consumption in classrooms and meeting rooms.
Ideal for schools, universities, ministries, and enterprises in the GCC and Africa requiring reliable, collaborative interactive displays for multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TE5513A-B3AG
- Product type
- Interactive Flat Panel
- Key features
- Google EDLA certified, 4K UHD, PureTouch-IR+ with palm rejection, 40-point touch, Zero-Gap Air Bonding, Wi-Fi 6E, iiShare wireless presentation, PIR motion sensor
- Finish
- Matte black bezel
- Orientation
- Landscape
Display
- Blue light filter
- Yes
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (8-bit + Hi-FRC)
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 40-point multi-touch
- Touch response time
- 5 ms
- Touch technology
- Infrared
System
- Processor
- RK3576 octa-core (4 x A72 + 4 x A53)
- Operating system
- Android 14
- RAM
- 6 GB
- Storage
- 128 GB
- Operating hours
- 24/7 (recommended maximum 18 hours per day)
Connectivity
- Bluetooth
- Bluetooth 5.0
- USB ports
- USB 3.2 Gen 1 × 4, USB 2.0 × 2
- Wi-Fi
- Wi-Fi 6E
- Ports
- HDMI In × 2, DisplayPort In × 1, USB-C In × 2, HDMI Out × 1, USB-C Out × 1, RJ45 LAN × 2, OPS Slot × 1
Camera & audio
- Speaker output
- 2 x 20 W + 20 W subwoofer
Physical & warranty
- In the box
- Remote control, power, USB and HDMI cables (3 m each), quick start and safety guides
- Operating temperature
- 0 to 40 °C
- Power consumption
- 126 W (typical)
- Dimensions
- 1267 x 765.5 x 117.5 mm
- Weight
- 28.7 kg
- VESA mount
- 400 x 400 mm
- Warranty
- 5 years
- Bezel size
- 16.7 / 14.1 / 46.7 mm (sides / top / bottom)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, CE, TÜV-GS, EAC, RoHS, WEEE, REACH
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this model compatible with Google Workspace?
Yes, the iiyama TE5513A-B3AG is Google EDLA certified, allowing direct access to Google Workspace applications, accounts, and files without additional configuration.
Which countries receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners at the lowest possible cost.
Does the price include installation?
Pricing is by quotation. On-site installation is available within the UAE only; other countries receive delivery ready for local setup with remote guidance if needed.
Can multiple users touch the screen at once?
Yes, the PureTouch-IR+ technology supports 40-point multi-touch, enabling several users to annotate and interact with content simultaneously with high accuracy.
What is the warranty coverage?
The product comes with a 5-year manufacturer warranty, backed by Smart-Boards after-sales support to assist with technical queries and service requirements.
Is wireless presentation included?
Yes, the display features iiShare for wireless screen sharing and includes the integrated EShare app, allowing users to cast content from compatible devices easily.
Can I see the panel before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations before purchase to help you verify specifications, touch performance, and software integration for your specific needs.
