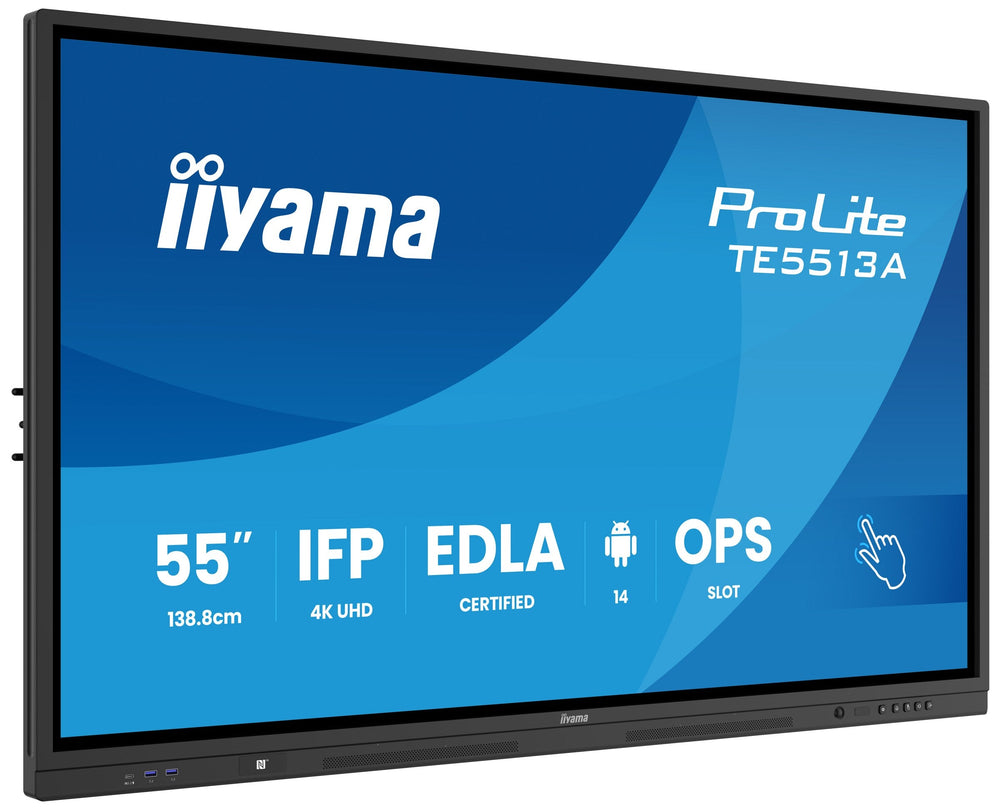

The iiyama TE5513A-B2AG is a 55-inch 4K UHD interactive flat panel designed for education and enterprise environments in the GCC and Africa. It features Google EDLA certification, Android 14, and 40-point infrared touch. Smart-Boards supplies this unit from Dubai Silicon Oasis with regional logistics support.
This 55-inch interactive display uses Zero-Gap Air Bonding technology to eliminate parallax, ensuring precise annotation with its PureTouch-IR+ system. The panel supports 40-point touch input with palm rejection, allowing multiple users to collaborate simultaneously. Its IPS panel delivers 3840 x 2160 resolution at 500 nits brightness, providing clear visibility in well-lit classrooms or conference rooms. The anti-glare, anti-bacterial glass finish maintains hygiene and readability during extended use.
Powered by Android 14 and the iiWare 21E operating system, the device integrates directly with Google Workspace and Microsoft 365. It includes a Rockchip RK3576 octa-core processor, 8 GB RAM, and 128 GB storage for smooth performance. Connectivity is enhanced by Wi-Fi 6E, Bluetooth 5.0, and dual RJ45 ports for stable network connections. The integrated iiControl DMS allows administrators to manage terminal equipment efficiently, supporting GDPR compliance for organizational data security.
Key features
- Google EDLA Integration - Certified for direct access to Google apps, accounts, and collaborative tools within the Android 14 environment.
- PureTouch-IR+ Accuracy - Offers 40-point touch capability with ±1 mm accuracy and palm rejection for fluid multi-user interaction.
- iiWare 21E Software - Provides iiShare wireless presentation, whiteboard, and cloud drive access via an intuitive user interface.
- Advanced Connectivity - Includes two HDMI 2.0 inputs, USB-C with 100W PD, dual RJ45, and an OPS slot for optional computing modules.
- Energy Efficient Design - Features a PIR motion sensor and 0.5 W standby power consumption to reduce energy usage in idle states.
Ideal for schools, universities, and corporate offices requiring collaborative touch displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TE5513A-B2AG
- Product type
- Interactive Flat Panel
- Key features
- Google EDLA certified, Zero-Gap Air Bonding, palm rejection, iiWare 21E software, iiControl DMS, PIR motion sensor, OPS slot for optional PC, Wi-Fi 6E and Bluetooth 5.0
- Finish
- Anti-glare, anti-gloss glass with anti-bacterial coating
- Orientation
- Landscape
Display
- Blue light filter
- Yes
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (8-bit + Hi-FRC)
- Resolution
- 4K UHD
- Screen size
- 55"
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- 40-point touch (10-point writing on supported OS, 32-point on Android)
- Touch response time
- 5 ms
- Touch technology
- Infrared (PureTouch-IR+)
System
- Processor
- Rockchip RK3576 octa-core (4 × A72, 4 × A53)
- Graphics
- Mali-G52 MC3
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 128 GB
- Operating hours
- 24/7 (18 hours per day recommended)
Connectivity
- Bluetooth
- Bluetooth 5.0
- HDMI input
- 2 (HDMI 2.0, one with CEC and ARC)
- USB-C
- USB-C × 2 (front 100 W PD, side 65 W PD)
- USB ports
- USB 3.2 Gen 1 × 3, USB 2.0 × 1
- Wi-Fi
- Wi-Fi 6E
- Ports
- DisplayPort in × 1, HDMI out × 1, USB-C out × 1, RJ45 (LAN) × 2, RS-232C × 1, OPS slot × 1, S/PDIF optical out × 1, 3.5 mm headphone out × 1
Camera & audio
- Speaker output
- 2 × 20 W plus 20 W subwoofer
Physical & warranty
- Operating temperature
- 0 to 40 °C
- Power consumption
- 126 W (typical)
- Standby power
- 0.5 W
- Dimensions
- 1267 x 765.5 x 117.5 mm
- Weight
- 28.7 kg
- VESA mount
- 400 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this model support Google Workspace applications?
Yes, the TE5513A-B2AG is Google EDLA certified, allowing direct access to Google apps, files, and accounts without additional licensing.
What touch technology is used in this 55-inch panel?
It uses PureTouch-IR+ infrared technology, supporting up to 40 touch points with palm rejection and ±1 mm accuracy for precise annotation.
Which countries in the GCC and Africa receive this product?
Smart-Boards ships to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African countries through established logistics partners.
Is on-site installation included for deliveries outside the UAE?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed.
What operating system runs on the iiyama TE5513A-B2AG?
The display runs Android 14 with iiWare 21E software, enabling iiControl DMS management and integrated wireless screen sharing capabilities.
How many users can interact with the screen simultaneously?
The panel supports 40-point touch input, allowing multiple users to write or annotate on the display at the same time effectively.
What connectivity options are available for network integration?
It features dual RJ45 ports, Wi-Fi 6E, Bluetooth 5.0, and an OPS slot, ensuring flexible networking and computing expansion options.
