The iiyama SDM31201BC-1L is a mini PC media player designed to transform iiyama ProLite LH75 large format displays into standalone digital signage solutions. Featuring an Intel Core i3-1220P processor, 8GB DDR4 RAM, and 256GB SSD, it delivers reliable content playback. Smart-Boards supplies this hardware across the GCC and Africa for corporate and public sector projects.
This compact unit connects directly to iiyama ProLite LH75 series screens (50 inches and larger) to create a self-contained display system. The integrated Intel UHD Graphics handles high-resolution output via dual USB-C ports supporting DisplayPort 1.4 Alt mode or a single HDMI 2.0 connection, both capable of 4K at 60Hz. The Windows 11 IoT Enterprise operating system provides a stable environment for continuous digital signage operations without the need for external computing hardware.
Connectivity options include four USB-A 3.2 Gen 1 ports and two USB-C 3.2 Gen 1 ports for peripheral attachment, alongside a 10/100/1000M LAN adapter and WiFi 6 (802.11ax) for network flexibility. The device measures 195 x 110 x 25mm and weighs just 0.4kg, allowing for discreet mounting behind or near the display. Operating temperatures range from -5°C to 45°C, ensuring suitability for various indoor climates in the GCC region and Africa.
Key features
- Processing Power - Powered by an Intel Core i3-1220P processor with 8GB DDR4 RAM and 256GB M.2 SSD for fast boot times and reliable content management.
- Display Outputs - Features dual USB-C ports (DP 1.4 Alt mode) and one HDMI 2.0 port, supporting 4K resolution at 60Hz for sharp visual clarity.
- Wireless Connectivity - Includes integrated WiFi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.3 for flexible network integration and peripheral pairing.
- Compact Form Factor - Small dimensions of 195 x 110 x 25mm and a weight of 0.4kg allow for easy integration with large format displays without clutter.
- Operating System - Runs Windows 11 IoT Enterprise (SAC) 64-bit, providing long-term support and security features essential for business environments.
Ideal for corporate lobbies, educational institutions, and government facilities across the GCC and Africa requiring robust, standalone digital signage solutions for iiyama ProLite LH75 displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- SDM31201BC-1L
- Product type
- SDM-L Slot PC
- Brand
- IIYAMA
- Key features
- Intel i3-1220P, 8GB DDR4 RAM, 256GB SSD, UHD Graphics, WiFi 6, Bluetooth 5.3, Windows 11 IoT, 4K support, USB-C, HDMI, LAN
- Compatibility
- Intel Core i3-1220P, 8GB RAM, 256GB SSD, Intel UHD Graphics, Windows 11 IoT Enterprise; ProLite LH54/LH75 series
Display
- Screen size support
- 50" and larger (ProLite LH75 SERIES)
System
- Processor
- Intel Core i3-1220P
- Graphics
- Intel UHD Graphics
- Operating system
- Windows 11
- RAM
- 8 GB
- Storage
- 256 GB
- Storage conditions
- -20 to 60 °C, 5% to 95% RH
Connectivity
- Bluetooth
- Bluetooth 5.3
- Ethernet (RJ45)
- RJ45 × 1
- USB ports
- USB 3.2 × 4, USB-C 3.2 × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Physical & warranty
- Mounting type
- SDM-L slot
- Operating humidity
- 5% to 95% RH
- Operating temperature
- -5 to 45 °C
- Power consumption
- 72 W (typical)
- Dimensions
- 195 x 110 x 25mm
- Weight
- 0.4kg
- Shipping weight
- 0.61kg
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which iiyama displays are compatible with this media player?
The SDM31201BC-1L is specifically designed to work with iiyama ProLite LH75 series displays that are 50 inches and larger. It converts these large format screens into standalone digital signage units by providing the necessary computing power and video output.
What operating system does the device use?
It runs Windows 11 IoT Enterprise (SAC) 64-bit. This operating system is chosen for its stability, security, and long-term support capabilities, which are critical for continuous operation in public and commercial digital signage environments.
Does it support 4K resolution output?
Yes. The device supports 4K resolution at 60Hz through its HDMI 2.0 port and dual USB-C ports (DisplayPort 1.4 Alt mode). This ensures high-quality image delivery for detailed signage content on compatible large format displays.
To which countries can Smart-Boards deliver this product?
Smart-Boards ships to all GCC countries, including the UAE, Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery costs are minimized through established logistics partners, and specific timelines are confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For deliveries to other countries, the unit arrives ready for local setup. Remote guidance is available to assist local technicians with the physical installation and initial configuration of the media player.
What are the connectivity options for peripherals?

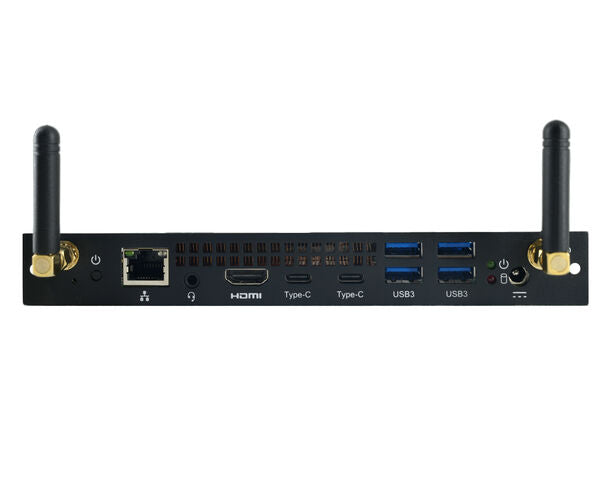

The unit offers four USB-A 3.2 Gen 1 ports (5Gbit/s) and two USB-C 3.2 Gen 1 ports (5Gbit/s) for data transfer. It also includes a dedicated headset connector for audio and microphone input, along with LAN and WiFi 6 for network connectivity.
What is the typical power consumption?
The device has a typical power usage of 72W and consumes only 0.5W in standby mode. This efficient power profile helps reduce operational costs in environments where the signage is active for extended periods.
