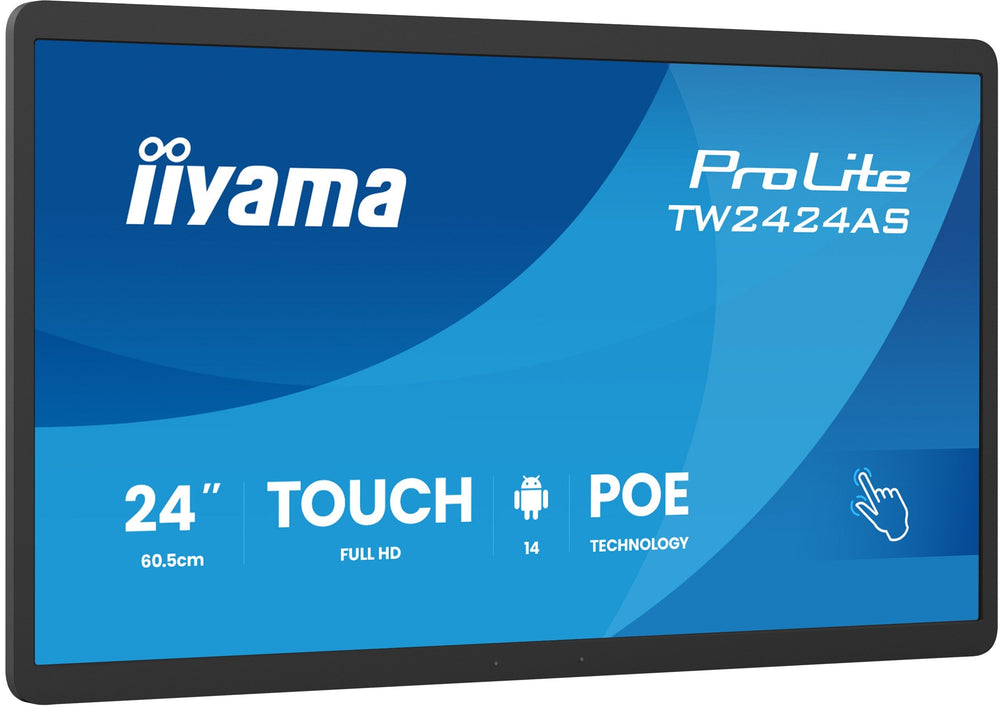

The iiyama ProLite TW2424AS-B3P is a 24-inch interactive touch panel PC running Android 14 with a Full HD IPS display. Designed for high-use retail and information environments, it supports 24/7 operation and Power over Ethernet (PoE) for simplified cabling. Smart-Boards supplies this unit across the GCC and Africa.
This 23.8-inch display combines an IPS panel with In-cell PCAP 10-point touch technology to deliver sharp visuals and responsive interaction. It runs on Android 14 with Google Mobile Services, allowing direct application installation for custom kiosks or POS systems. The Rockchip RK3576 processor, 4 GB RAM, and 32 GB storage provide sufficient power for digital signage tasks while maintaining a slim profile suitable for various mounting orientations.
Installation is streamlined through IEEE 802.3bt PoE, delivering both power and data via a single RJ45 cable to reduce clutter. The unit integrates with iiSignage² for remote content management and includes dual microphones and stereo speakers for interactive applications. With a brightness of 450 nits and anti-glare coating, it remains readable in well-lit spaces. Smart-Boards offers live demonstrations and manages logistics for multi-site rollouts in the GCC and Africa.
Key features
- Android 14 Platform - Pre-installed Android OS with GMS allows direct app installation for customized retail or information point applications.
- PoE Power Delivery - Supports IEEE 802.3bt PoE (72 W) to transmit power and data through a single Ethernet cable for simplified setup.
- In-cell Touch Panel - Features 10-point multi-touch capability with In-cell PCAP technology for fluid and natural user interaction.
- IPS Display Quality - Delivers Full HD 1920 x 1080 resolution with 178° viewing angles and 450 nits brightness for clear visibility.
- Connectivity Options - Includes HDMI input, USB-C output for mirroring, dual USB ports, RJ45 LAN, and Bluetooth 5.3 for versatile integration.
Ideal for: This display is ideal for retail POS systems, information kiosks, and showrooms, suiting buyers across the GCC and Africa who require durable, app-ready digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TW2424AS-B3P
- Product type
- Touch Panel PC
- Key features
- Anti image retention, Power over Ethernet (72 W), 10-point InCell touch, Android 14 with GMS, USB-C mirror output, Bluetooth 5.3, 24/7 operation, HDCP support
- Orientation
- Landscape, portrait, face-up
- PoE
- IEEE 802.3bt, 72 W (10/100/1000M)
Display
- Colour
- Black bezel, matte
- Brightness
- 450 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Resolution
- Full HD
- Screen size
- 23.8"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 1,000:1 (with touch)
- Panel technology
- IPS
- Response time
- 14 ms
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- InCell PCAP
System
- Processor
- Rockchip RK3576 octa-core (4 × Cortex-A53, 4 × Cortex-A72)
- Operating system
- Android 14
- RAM
- 4 GB LPDDR4
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Bluetooth 5.3
- HDMI input
- 1 (1920 x 1080 at 60 Hz)
- USB ports
- USB 3.2 Gen 1 × 1, USB 2.0 × 1
- Wi-Fi
- 802.11a/b/g/n/ax/ac
- Ports
- HDMI in × 1, USB-C out × 1 (video and touch mirroring), USB × 2, RJ45 LAN × 1, 3.5 mm audio in and out
Camera & audio
- Speaker output
- 2 × 5 W
- Microphone
- Dual microphone × 1
Physical & warranty
- Power consumption
- 17.5 W (typical)
- Dimensions
- 550 x 336 x 28 mm (W x H x D)
- Weight
- 4.24 kg (without box)
- VESA mount
- 100 x 100 mm
- Power source
- DC 12 V external power supply
- Certifications
- CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the screen size and resolution?
The ProLite TW2424AS-B3P has a 23.8-inch diagonal screen with a Full HD resolution of 1920 x 1080 pixels. The IPS panel ensures consistent color accuracy and wide viewing angles for clear visibility from various positions.
Does this model support Power over Ethernet?
Yes, it supports IEEE 802.3bt PoE, delivering up to 72 W through a single RJ45 cable. This simplifies installation by removing the need for separate power outlets near the display location.
Which operating system does it run?
The device runs Android 14 with Google Mobile Services. This allows users to install applications directly onto the 32 GB storage, enabling custom configurations for retail, hospitality, or interactive installations.
Can it be mounted in portrait orientation?
Yes, the unit supports landscape, portrait, and face-up orientations. It includes a standard 100 x 100 mm VESA mount pattern, allowing flexible mounting solutions for different environmental requirements.
Is iiSignage² included with the device?
The display is designed to integrate effortlessly with iiyama’s iiSignage² Content Management System. While the CMS software itself may be licensed separately, the hardware provides native support for remote content control and display management.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times depend on the country and order size, which are confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup with remote guidance provided by the Smart-Boards team to assist with configuration and deployment.
