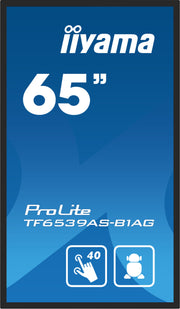

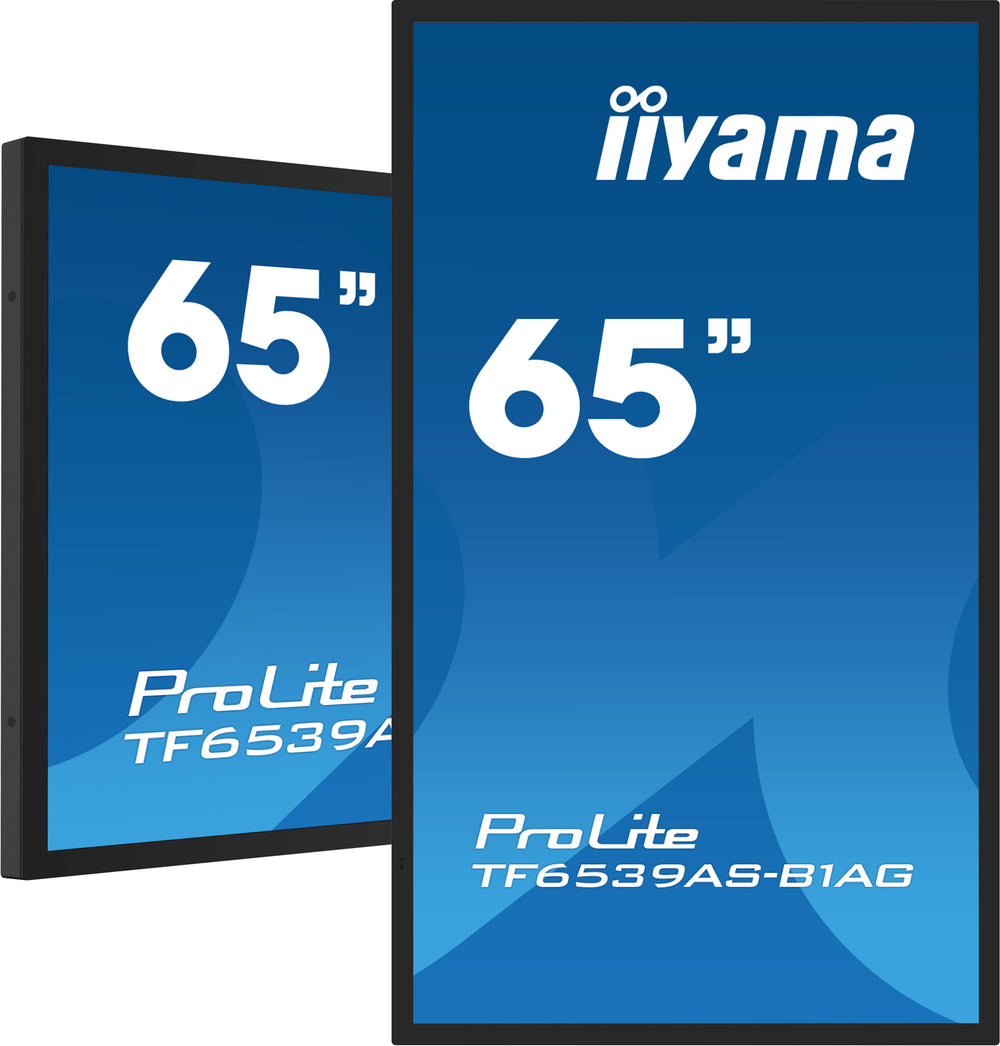

The iiyama ProLite TF6539AS-B1AG is a 65-inch PCAP interactive display designed for creative spaces, retail, and kiosk applications. Featuring 4K UHD resolution, Android 11, and IP65 front protection, this unit is supplied by Smart-Boards across the GCC and Africa.
This all-in-one unit combines an edge-to-edge glass design with bonded PCAP touchscreen technology to support 40 touch points and palm rejection. The 64.5-inch IPS LED panel delivers 3840 x 2160 resolution at 500 cd/m² brightness, ensuring clarity in well-lit environments. It includes HDMI 2.0, DisplayPort 1.2, and LAN control inputs, alongside Android 11 and iiSignage² for secure content management. The metal housing and 4mm 7H glass provide durability for high-traffic commercial settings.
Designed for 24/7 operation, the TF6539AS-B1AG supports landscape, portrait, and face-up orientations with VESA 400 x 400mm mounting compatibility. FailOver technology automatically switches inputs to maintain active content, while EShare enables wireless collaboration. With an internal power supply and included cables, it simplifies installation in huddle spaces, retail shops, and kiosks. Smart-Boards provides quotation-only pricing, logistics to GCC and African countries, and on-site installation within the UAE.
Key features
- PCAP Touchscreen - Bonded PCAP technology supports 40 touch points with +/- 2.5mm accuracy and palm rejection for precise interaction through the 4mm glass.
- 4K UHD Panel - The 65-inch IPS LED display offers 3840 x 2160 native resolution, 1200:1 contrast, and 178° viewing angles for consistent image quality.
- Android 11 System - Integrated Android 11 OS allows direct application installation and remote content control via the iiSignage² CMS platform.
- IP65 Protection - The front panel meets IP65 standards for water and dust resistance, making it suitable for retail and kiosk installations.
- Connectivity Options - Includes two HDMI 2.0 ports, one DisplayPort 1.2, RS-232c, and LAN for flexible integration and networked control.
Ideal for retail kiosks, corporate huddle spaces, and digital signage networks, suitable for buyers across the GCC and Africa requiring durable, interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TF6539AS-B1AG
- Key features
- PCAP Touchscreen, Touch Through-Glass, Android OS, iiSignage² CMS, EShare App, Edge to edge glass, Anti image retention, Kiosk mode, IP65 (front)
- Orientation
- Landscape, portrait, face-up
Display
- Backlight
- LED
- Blue light filter
- Yes
- Brightness
- 435 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 64.5"
- Surface protection
- Anti-glare, matte finish
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±2.5 mm
- Touch points
- 40-point multi-touch
- Touch technology
- PCAP
System
- Processor
- ARM 4x Cortex-A73 + 4x Cortex-A53
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort × 1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB-A 2.0 × 2
Camera & audio
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Power cable (1.8m), USB cable (1.8m), HDMI cable (1.8m), Quick start guide, Safety guide, Cable cover, Remote control (batteries included)
- Operating temperature
- 0°C to 40°C
- Power consumption
- 183 W
- Standby power
- 0.5 W
- Dimensions
- 1495 x 870 x 66 mm
- Weight
- 53.7 kg
- Shipping dimensions
- 1650 x 1010 x 194 mm
- VESA mount
- 400 x 400 mm
- Bezel size
- 31.5 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this display be delivered to my country?
Yes, Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
What operating system does the TF6539AS-B1AG run?
It runs Android 11, allowing you to install custom applications directly on the display for specialized kiosk or interactive use cases.
Does it support wireless screen sharing?
Yes, the integrated EShare app enables wireless screen sharing, facilitating efficient collaboration in enterprise or educational environments.
What is the touch technology used?
It uses bonded PCAP (Projected Capacitive) touch technology, supporting 40 touch points with accuracy of +/- 2.5mm and palm rejection.
