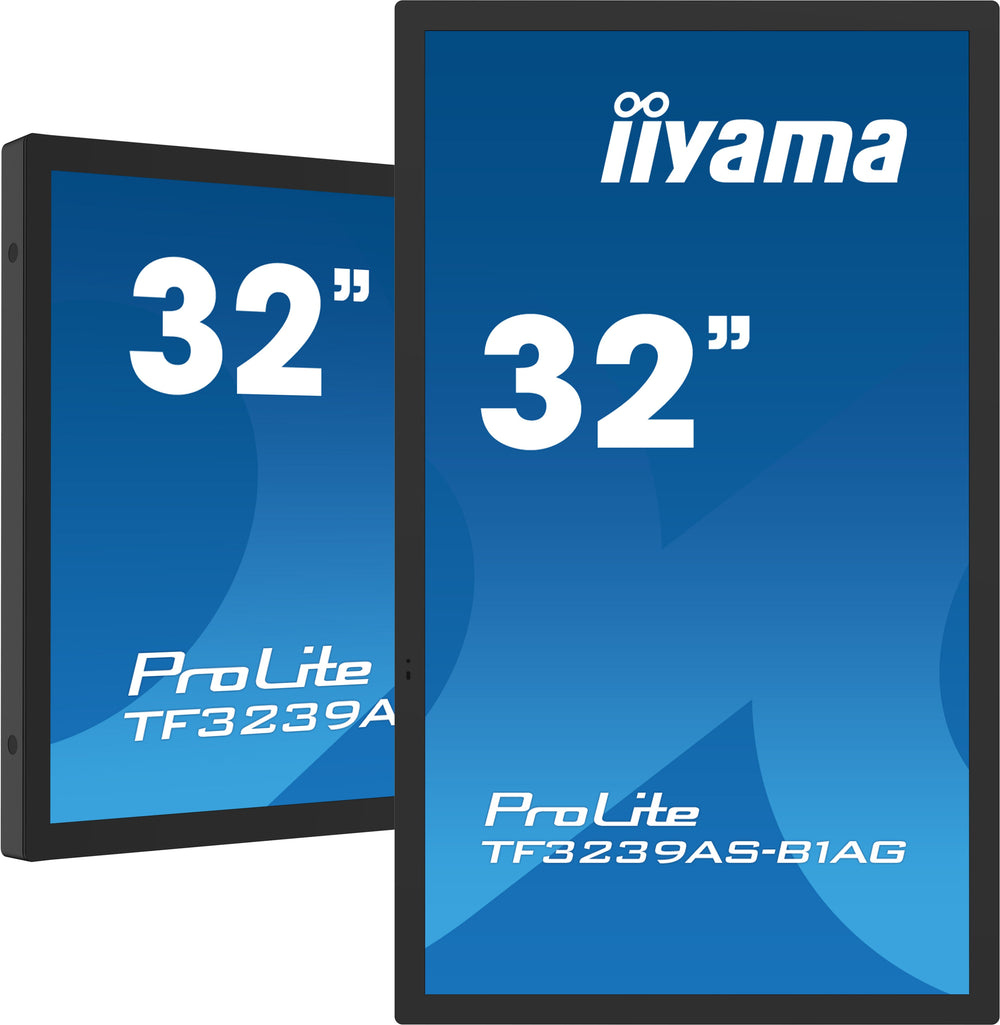

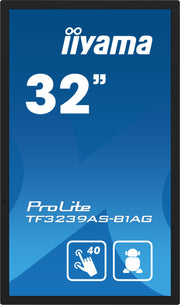

The iiyama ProLite TF3239AS-B1AG is a 32-inch interactive all-in-one display designed for huddle spaces and retail. It features a 1920 x 1080 IPS panel, 40-point PCAP touch, and Android 11 OS. Smart-Boards supplies this unit across the GCC and Africa with quotation-based pricing and logistics support.
This 32-inch display combines edge-to-edge glass with a matte finish to resist glare in bright environments. The 500 cd/m² brightness ensures clear visibility for digital signage or collaborative whiteboarding. With an IP65 front rating, it withstands dust and water, making it suitable for demanding public spaces or outdoor-facing installations. The integrated Android 11 system allows direct app installation for customized content management.
Connectivity includes two HDMI 2.0 ports and one DisplayPort for flexible input switching, supported by FailOver technology to maintain active content. RS-232c and LAN ports enable remote monitoring and control for multi-site deployments. The metal housing and VESA 200 x 200mm mount points facilitate secure integration into existing infrastructure. Smart-Boards offers on-site installation within the UAE, with delivery and remote guidance for other regions.
Key features
- Interactive Glass - 40-point PCAP touch technology with palm rejection supports finger, stylus, and glove input.
- Android 11 OS - Built-in Android operating system allows direct installation of iiSignage² CMS and third-party applications.
- Durable Design - 3mm glass with 7H hardness and IP65 front protection ensures reliability in high-traffic or harsh environments.
- Visual Clarity - IPS LED panel delivers 1920 x 1080 resolution with 500 cd/m² brightness and 178° viewing angles.
- Remote Control - LAN and RS-232c interfaces allow centralized management of power, inputs, and settings for fleet deployments.
Ideal for: Retail kiosks, huddle spaces, and digital signage installations requiring durable, interactive displays for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TF3239AS-B1AG
- Key features
- PCAP Touchscreen, Edge to edge glass, Touch Through-Glass, iiSignage² CMS, EShare App, FailOver, Kiosk mode, Anti image retention, IP65 (front), Metal housing, OSD key lock, Remote control lock
- Orientation
- Landscape, portrait, face-up
Display
- Backlight
- LED
- Blue light filter
- Yes
- Brightness
- 435 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 31.5"
- Surface protection
- Anti-glare, matte finish
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- ±2.5 mm
- Touch points
- 40-point multi-touch
- Touch technology
- PCAP
System
- Processor
- ARM 4x Cortex-A73 + 4x Cortex-A53
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort × 1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB-A 2.0 × 2
Camera & audio
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Power cable (1.8m), USB cable (1.8m), HDMI cable (1.8m), Quick start guide, Safety guide, Cable cover, Remote control (batteries included)
- Operating temperature
- 0°C to 40°C
- Power consumption
- 50 W
- Standby power
- 0.5 W
- Dimensions
- 746.2 x 440.7 x 62.4 mm
- Weight
- 13.2 kg
- Shipping dimensions
- 840 x 560 x 149 mm
- VESA mount
- 200 x 200 mm
- Bezel size
- 22 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the iiyama TF3239AS-B1AG suitable for outdoor use?
It features an IP65 front rating for dust and water resistance, making it suitable for sheltered outdoor or semi-outdoor areas. Ensure the unit is protected from direct exposure to rain and extreme temperatures outside the 0°C to 40°C operating range.
Can this display run digital signage content autonomously?
Yes, the integrated Android 11 OS supports the iiSignage² content management system. You can install apps directly to manage and schedule advertising or informational content without needing an external media player.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Delivery times vary by country and order size, confirmed on your quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, units are delivered ready for local setup. Remote guidance is available to assist your technical team with mounting and configuration.
What mounting options are supported?
The display supports VESA 200 x 200mm mounting. Optional external brackets like the OMK4-4 are available for specific integration needs. Ensure the mount supports the 13.2kg weight of the unit.
Does the unit include a remote control?
Yes, a remote control with included batteries is provided. It allows basic operation of power, volume, and input selection without accessing the on-screen display menu.
What warranty and support does Smart-Boards provide?
We supply the manufacturer warranty plus Smart-Boards after-sales support. As an authorized reseller, we assist with technical queries and spare parts. Warranty terms are specified in the quotation.
