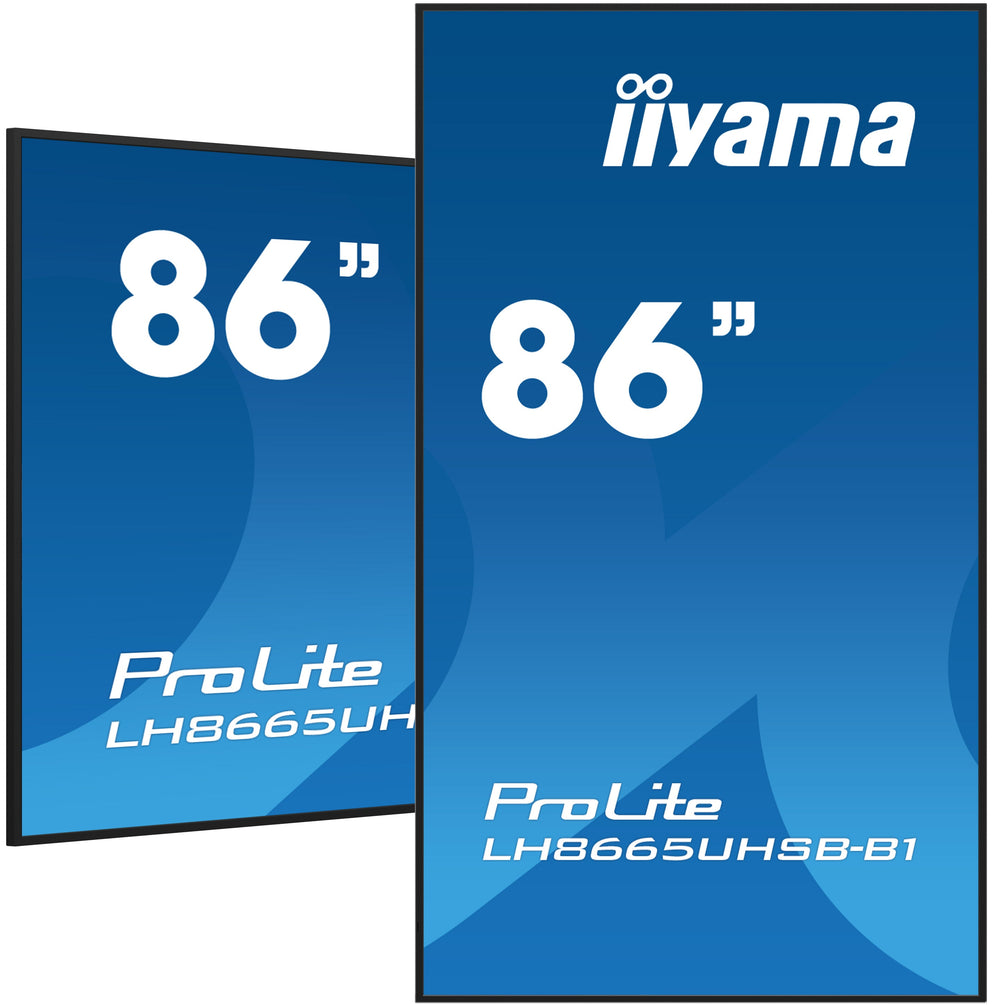

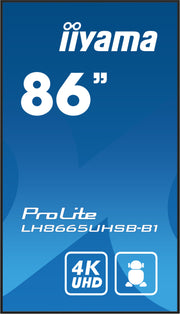

The iiyama ProLite LH8665UHSB-B1 is an 86-inch (217cm) 4K UHD digital signage display designed for high-visibility environments. Featuring 800 cd/m² brightness and Android 11, it supports 24/7 operation. Smart-Boards supplies this model across the GCC and Africa.
This 86-inch display utilises an IPS panel with 1% haze to maintain clarity in bright spaces. The 800 cd/m² luminance ensures content remains vivid and legible even in well-lit areas. With a static contrast of 1200:1 and 1.07 billion colours, it delivers accurate visuals for dynamic messaging. The metal housing and fanless design support reliable performance in continuous operation scenarios.
Integrated Android 11 OS enables direct installation of third-party applications and CMS platforms. iiSignage² provides remote content management, while FailOver ensures active display during signal loss. Connectivity includes dual HDMI 2.0, DisplayPort 1.2, and built-in 802.11ac WiFi. RS-232c and LAN ports facilitate integration into existing control systems for multi-site deployments.
Key features
- High Brightness Panel - The IPS panel delivers 800 cd/m² brightness and 1200:1 static contrast for clear visibility in illuminated environments.
- Android 11 Operating System - Built-in Android 11 allows direct installation of applications and use of iiSignage² for remote content management.
- Signal FailOver Technology - Automatically switches to backup inputs if the primary signal is lost, ensuring continuous display of critical information.
- Multi-Interface Connectivity - Features two HDMI 2.0 ports, one DisplayPort 1.2, RJ45 LAN, and RS-232c for flexible system integration.
- 24/7 Durability - Designed for non-stop operation with a fanless design, operating within 0°C to 40°C and supporting landscape or portrait orientation.
Ideal for corporate lobbies, educational institutions, and government facilities in the GCC and Africa requiring reliable, high-brightness 4K digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LH8665UHSB-B1
- Key features
- iiSignage2, FailOver, EShare, Fanless design, Signal FailOver, Thin bezel, Content Management System
Display
- Blue light filter
- Yes
- Brightness
- 800 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% (NTSC)
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
System
- Processor
- ARM 4x Cortex-A73 + 4x Cortex-A53
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort × 1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB × 2
- Wi-Fi
- Built-in
Camera & audio
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Power cable, HDMI cable, RS-232c cable, Quick start guide, Safety guide, Stickers for screw holes, Adhesive clips for cable management, AC switch cover, Remote control (batteries included)
- Operating temperature
- 0°C to 40°C
- Power consumption
- 159 W
- Standby power
- 0.5 W
- Dimensions
- 1927 x 1098.5 x 57 mm
- Weight
- 49 kg
- Shipping dimensions
- 2123 x 1247 x 225 mm
- VESA mount
- 600 x 400 mm
- Bezel size
- 16.25 mm (T/B), 16 mm (L/R)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this display be delivered to all GCC countries?
Yes. Smart-Boards ships to the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain through established logistics partners.
Is on-site installation included outside the UAE?
No. On-site installation is available within the UAE only. Other countries receive delivery ready for local setup with remote guidance if needed.
What is the native resolution?
The native resolution is 3840 x 2160 at 60Hz, providing 4K UHD clarity.
Does it support wireless screen sharing?
Yes. It includes built-in 802.11ac WiFi and integrated EShare app for wireless screen sharing.
Is the pricing fixed?
No. Pricing is by quotation only, with options for education, government, and bulk orders.
What is the warranty coverage?
The product includes manufacturer warranty plus Smart-Boards after-sales support.
Can I view the display before purchasing?
Yes. Live or virtual demonstrations are available before purchase upon request.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
