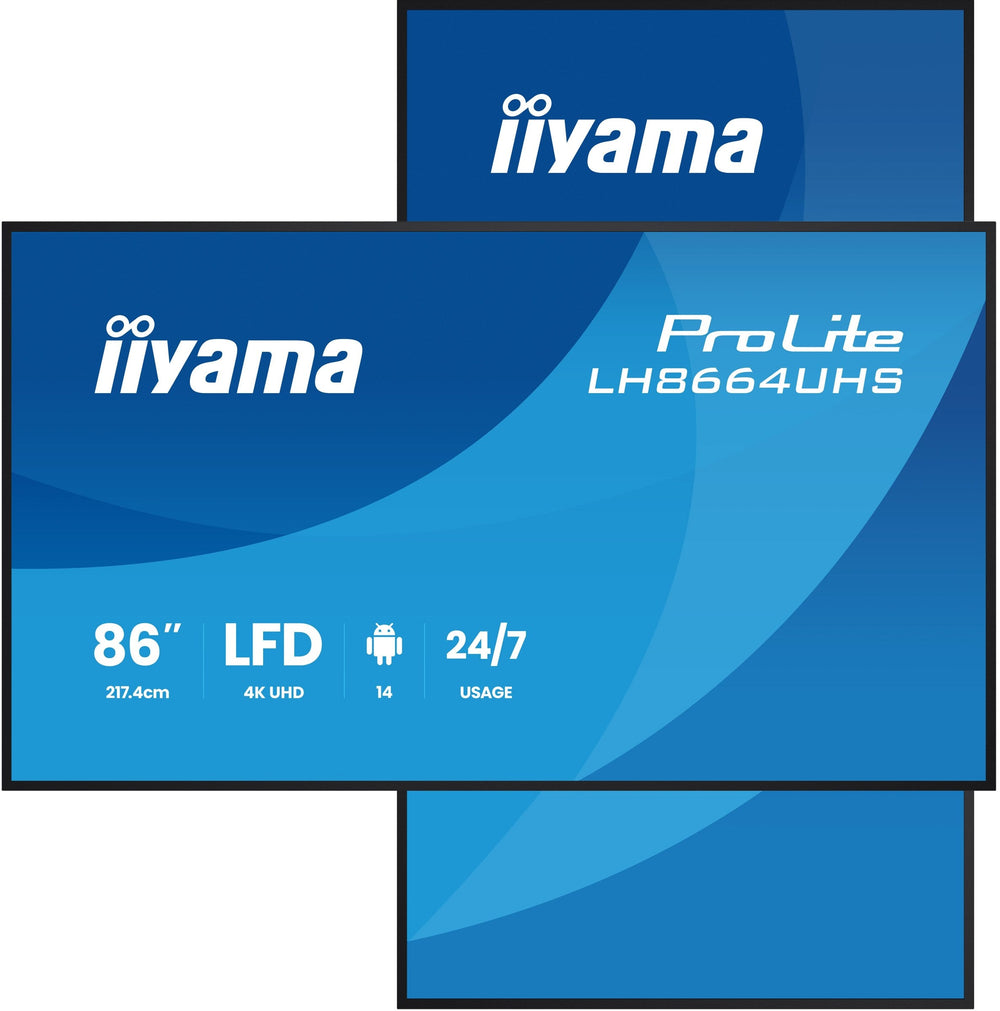

The iiyama ProLite LH8664UHS-B3AG is an 86-inch 4K UHD digital signage display designed for professional environments. It features Android 14, 500-nit brightness, and 24/7 operation. Smart-Boards supplies this unit for multi-site deployments across the GCC and Africa.
This 86-inch IPS panel delivers 4K UHD resolution with 500 nits of brightness and a 178° viewing angle, ensuring clear visibility in well-lit spaces. The matte bezel reduces glare while the robust build supports 24/7 continuous operation. Android 14 allows direct application installation, providing flexibility for diverse content needs without external players. The device operates within a temperature range of 0 to 40 °C, making it suitable for various regional climates.
Connectivity options include dual HDMI, LAN, RS-232C, and USB-C with 15 W power delivery, facilitating integration into existing AV infrastructures. Built-in Wi-Fi 5 enables wireless content updates via iiSignage² CMS and iiControl DMS for centralized management. The display supports landscape or portrait orientation and includes failover input switching to maintain active content. With a weight of 47.9 kg and VESA 800 x 600 mm mounting, it fits standard professional installations.
Key features
- 4K UHD IPS Panel - Provides 3840 x 2160 resolution with 500 nits brightness and 178° viewing angles for clear visual communication.
- Android 14 OS - Allows direct app installation and supports iiSignage² CMS and iiControl DMS for remote content and device management.
- Professional Connectivity - Features dual HDMI, RJ45, RS-232C, IR, and USB-C ports for versatile integration into corporate or educational setups.
- 24/7 Reliability - Designed for continuous operation with anti-image retention technology and a duty cycle supporting permanent display use.
- Wi-Fi 5 Integration - Built-in dual-band Wi-Fi enables wireless content delivery and remote monitoring without additional network hardware.
Ideal for: Retail displays, corporate lobbies, educational institutions, and hospitality venues across the GCC and Africa requiring reliable, centrally managed digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LH8664UHS-B3AG
- Product type
- Digital Signage Display
- Key features
- Android 14 OS, iiSignage² CMS, iiControl DMS, iiShare and EShare, FailOver input switching, 24/7 operation, anti image retention, landscape or portrait
- Finish
- Black, matte bezel
- Orientation

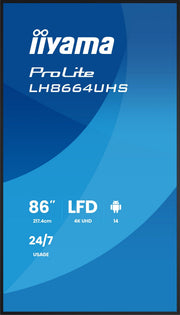

- Landscape, portrait
Display
- Brightness
- 500 cd/m²
- Colour depth
- 8-bit + FRC
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
System
- Operating system
- Android 14
- Operating hours
- 24/7
- Storage conditions
- -20 to 60 °C
Connectivity
- USB-C
- USB-C × 1 (DP Alt 1.2, 15 W PD)
- USB ports
- USB 2.0 × 2, USB hub × 1
- Wi-Fi
- Wi-Fi 5 (2.4 GHz / 5 GHz)
- Ports
- HDMI × 2, RJ45 (LAN) × 1, RS-232C × 2, IR × 2, 3.5 mm audio out × 1
Camera & audio
- Speaker output
- 2 × 16 W
Physical & warranty
- Operating temperature
- 0 to 40 °C
- Power consumption
- 277 W (typical)
- Standby power
- 0.5 W
- Dimensions
- 1937.8 x 1108.8 x 79.6 mm
- Weight
- 47.9 kg

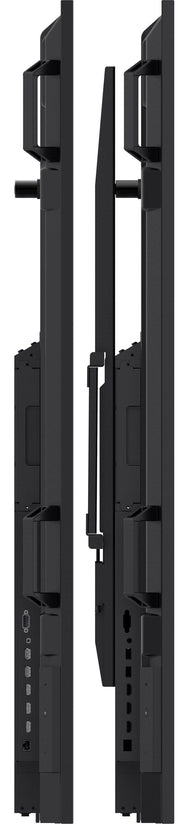

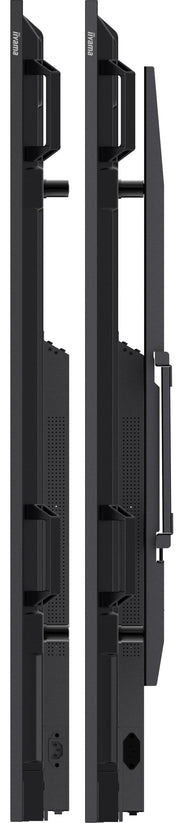

- VESA mount
- 800 x 600 mm
- Bezel size
- 21.5 mm (sides), 22 mm (top and bottom)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, EPEAT, REACH, UKCA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this display be delivered to African countries?
Yes. Smart-Boards ships to African countries through established logistics partners at the lowest possible cost, ensuring reliable delivery for your project.
Is on-site installation available outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
Does it support remote content management?
Yes. It includes iiSignage² CMS for content management and iiControl DMS for device management, supporting GDPR compliance and centralized control.
What is the brightness level?
The display offers 500 nits of brightness, suitable for well-lit indoor environments such as retail spaces and corporate lobbies.
Can it run in portrait orientation?
Yes. The display supports both landscape and portrait orientations, allowing flexible mounting options for different content formats.
What happens if the primary input fails?
The FailOver feature automatically detects input sources and switches to the next available input, ensuring active content is always displayed.
What warranty is provided?
The product comes with a manufacturer warranty plus Smart-Boards after-sales support. Delivery times depend on the country and order size.
